INVESTIGATION OF A WIDELY-TUNABLE SUBNANOSECOND BBO-BASED OPTICAL PARAMETRIC AMPLIFIER

1. Introduction

A huge variety of lasers is known to have a vast range of applications in industry, medicine, science, etc [1]. However, the inherent wavelength tunability of lasers is an issue in some fields such as spectroscopy, sensing, nonlinear microscopy, etc., where widelytunable laser radiation is required [2–7]. Therefore, optical parametric amplifiers (OPAs) [8–10] and optical parametric generators (OPGs) [11] are used as sources of tunable coherent radiation. Due to the significant progress in laser development and nonlinear optical materials growth these devices are now advanced and widely available in terms of spectral coverage, output power and pulse duration [8, 12, 13]. For pump pulses longer than 1 ns, travelling-wave OPGs or optical parametric oscillators (OPGs with a resonator) are used [14, 15], while in the case of femtosecond pump pulses synchronous pumping optical parametric oscillators (OPO) setups or OPAs are used [16–20]. For pulse durations of several or several tens of picoseconds, both synchronous pumping technique [21–23] or travelling wave configuration can be used [24, 25]. In this regard, a uniquely complicated temporal interval is the subnanosecond (100 ps – 1 ns) pulse duration range. The aforementioned synchronous pumping technique cannot be realized due to a very long resonator length requirement set by low repetition rate subnanosecond laser systems, while a simple travelling wave setup cannot be implemented due to the laser-induced damage threshold (LIDT), which in the case of subnanosecond pulses is usually lower than the parametric generation threshold. Thus, subnanosecond optical parametric devices are very difficult to implement. Subnanosecond optical parametric devices would be more compact, cheaper and more robust than expensive and complex femtosecond parametric optical parametric generators or amplifiers, especially when the intended application does not require femtosecond temporal resolution, but nanosecond resolution is insufficient. Examples of such applications are some cases in pump-probe spectroscopy, gas sensing and laser tattoo removal. Currently, only several subnanosecond OPGs and OPAs generating tunable pulses in the IR have been demonstrated [26–29] together with one demonstration of subnanosecond OPO [30]. In all these cases, periodically-poled nonlinear media (such as periodically poled lithium niobate) were used and quasi-phase matching was implemented.

In this paper, we present, to the best of our knowledge, the first subnanosecond OPA system based on a beta barium borate (BBO) crystal generating widely-tunable radiation in the visible spectrum range from 470 to 660 nm. BBO is a very popular nonlinear crystal, which has a broad transparency range and higher LIDT compared to those of periodically poled crystals. Moreover, the angular wavelength tuning method used with BBO crystals allows for continuous wavelength tenability, which is usually not the case for the quasi phasematching method used with periodically poled nonlinear crystals. The demonstrated OPA uses the continuum generated in a photonic crystal fibre as a seed source, which enables parametric generation in a travelling wave configuration.

2. Experimental setup

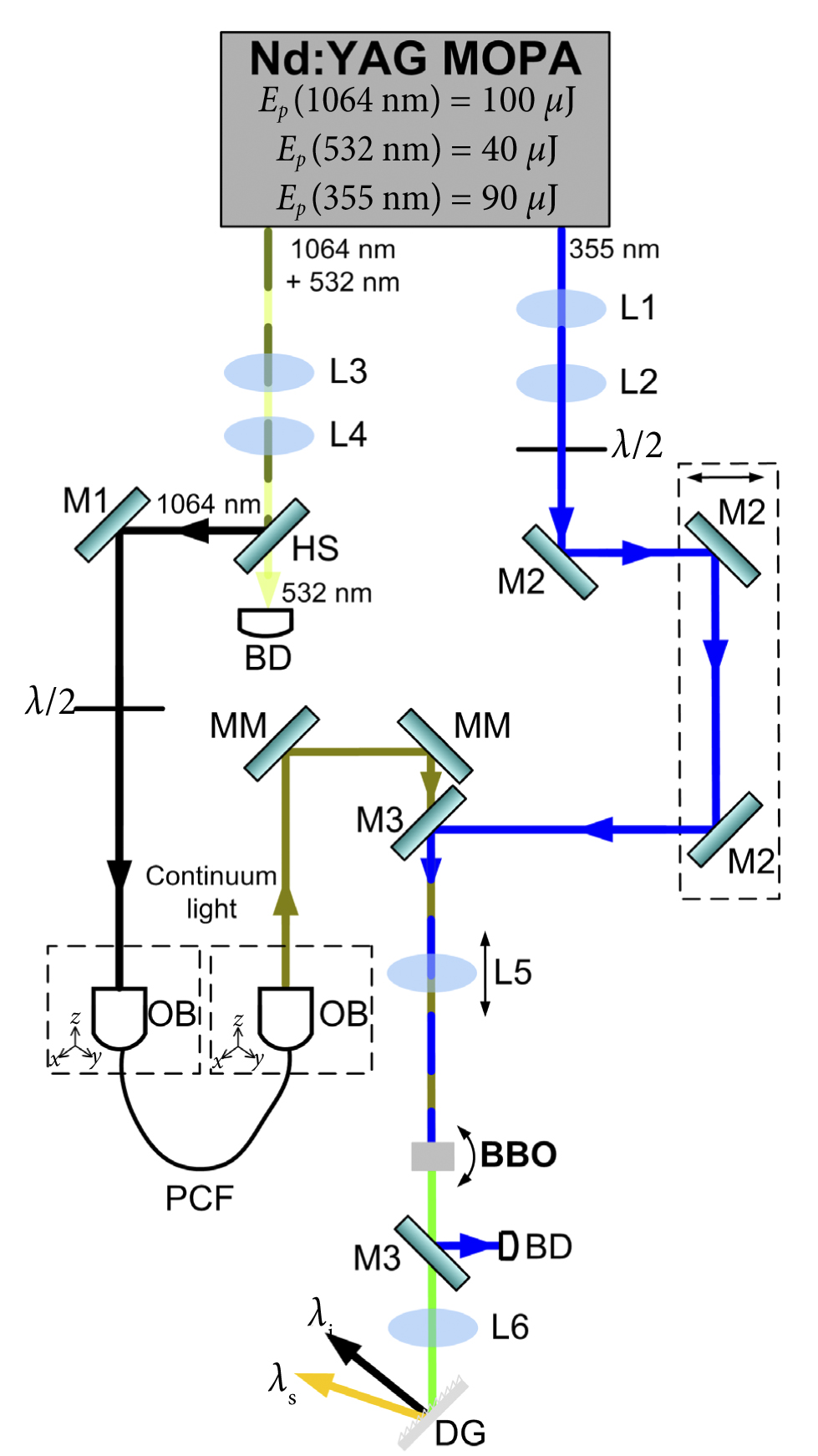

The experimental setup of the designed subnanosecond BBO OPA system is depicted in Fig. 1. The pump source for the OPA is a passively Qswitched Nd:YAG master oscillator power amplifier (MOPA) laser system manufactured by Standa Ltd. and generating subnanosecond pulses at 1 kHz repetition rate.

The Nd:YAG MOPA laser has two outputs: it is optimized for the third harmonic (λ = 355 nm – we will term it as TH) radiation at the first output, but also emits fundamental (λ = 1064 nm – we will term it as FH) and second (λ = 532 nm – we will term it as SH) harmonics at the second output. SH radiation was not used in the experiment, so it was directed into the beam dump BD.

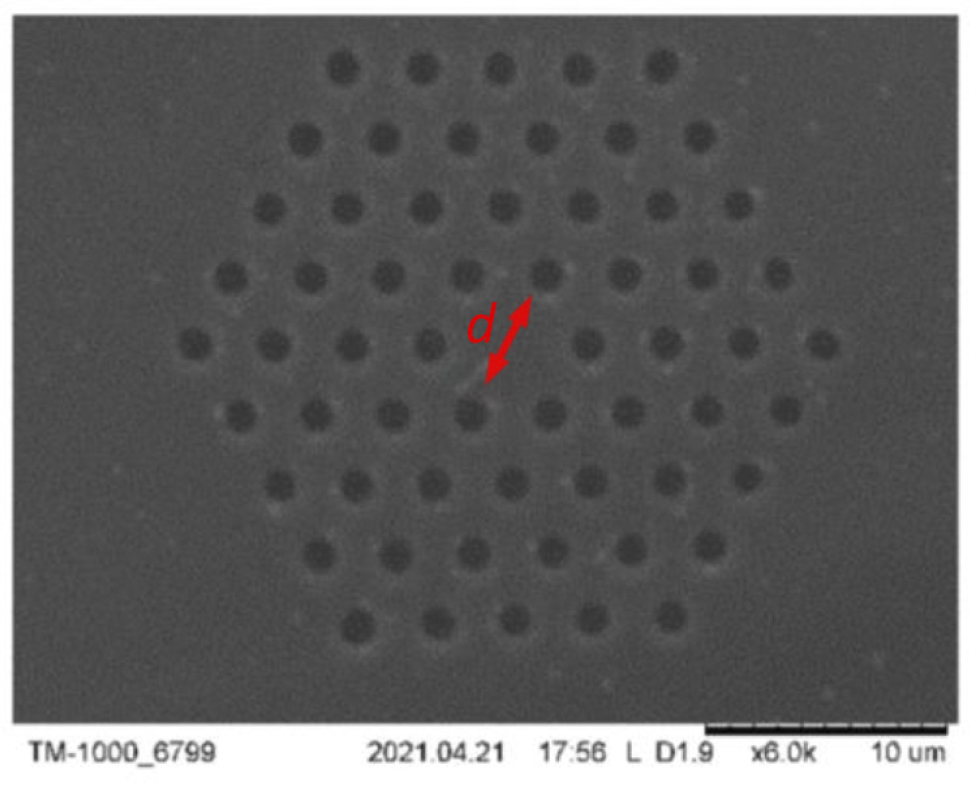

The measured duration of TH pulses was ~500 ps (FWHM level) and for FH pulses it was ~400 ps (FWHM level), while the maximum pulse energy was 90 and 100 μJ, respectively. FH of the MOPA laser (λ = 1064 nm) was used as a pump to generate a continuum in a highly nonlinear polarizationmaintaining photonic crystal fibre (PCF) which in turn was used as seed radiation for the BBO OPA system. The pump for continuum generation was focused into the PCF using a 0.65 numerical aperture and a 40× magnification microscope objective, which together with the input coupling end of PCF was mounted on a Thorlabs NanoMax 300D three-axis translation stage. A highly nonlinear polarization-maintaining solid-core PCF manufactured by NKT Photonics was used and its length was 1 m. The PCF core diameter was d = 5 μm which corresponded to a mode field diameter of 4.4 μm. A scanning electron microscope picture of this PCF cross-section is depicted in Fig. 2. Polarization is maintained by using stress inducing rods in the cladding, which are outside the microstructured region and therefore not visible in the image.

The generated continuum radiation and pump radiation were focused into a 6 mm (height) × 9 mm (width) × 15 mm (thickness) BBO crystal cut at θ = 28.2° and ϕ = 90° for type I phase matching using a 150 mm focal length lens L5. The BBO crystal was antireflection (AR)-coated for the λ = 355 nm and λ = 400–760 nm spectral range and mounted on a rotational stage to enable angular wavelength tuning. A delay line was used in the pump pulse line to achieve the maximum temporal overlap with seed pulses to maximize their nonlinear interaction. The generated signal and idler wave radiation was collimated using lens L6 and then the spatial separation of the signal and idler waves was performed with the use of a diffraction grating.

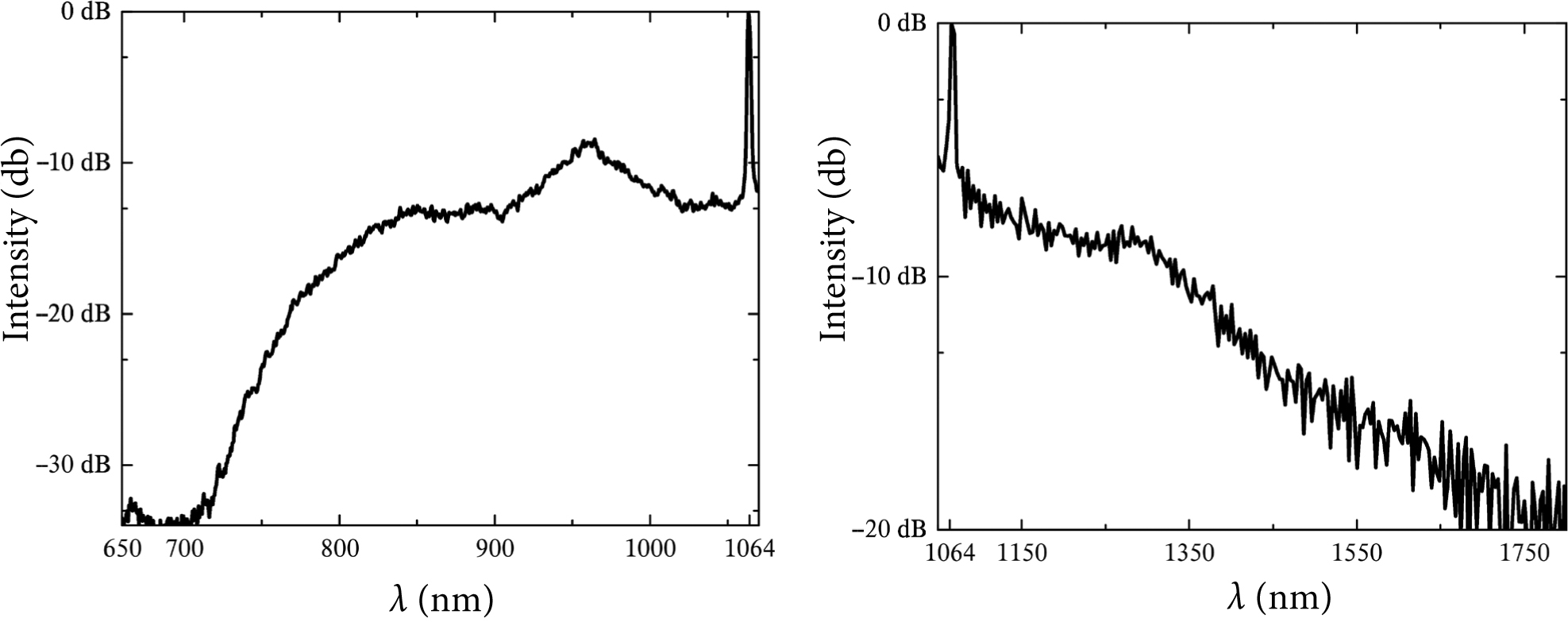

The continuum radiation generated in PCF was used as seed in our BBO OPA system. The seed spectrum at the maximum FH pump power is depicted in Fig. 3. Vertical polarization (with respect to PCF principal axes of polarization) FH radiation was used to pump PCF because the generated continuum spectra in this case were slightly broader. It is important to note that the LIDT of the PCF material (fused silica) limited the maximum pump power that we could use for continuum generation. The maximum used continuum pump power was 7.5 mW, which was roughly 75% of the LIDT power of the PCF material, and yielded roughly 5.7 mW seed power in the output (throughout the entire seed spectrum). At the maximum FH pump power the continuum spectrum extended approximately from 720 to 1600 nm. The maximum OPA TH pump power was limited by LIDT of the BBO crystal, thus the maximum pump power that we used was 23 mW.

The principle of our subnanosecond BBO OPA system operation is as follows. The generated continuum radiation is seed for the parametric amplification of the longer wavelength (idler) wave. The difference frequency wave generated in the process has a shorter wavelength than the seed radiation, thus we call it the signal wave. In this case, the signal wave covers the visible spectrum range – the spectrum region that was aimed for the BBO OPA operation.

3. Experimental results

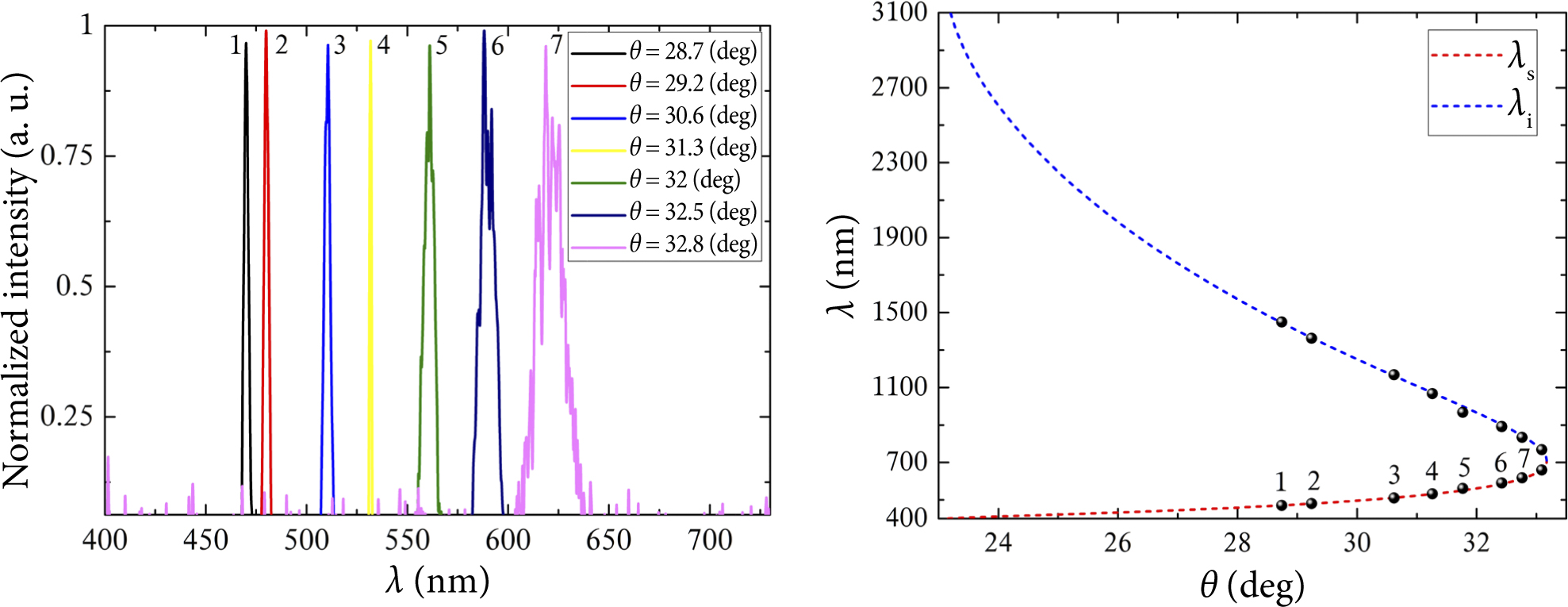

The achieved signal wave tuning range was from 470 to 660 nm and corresponded to the BBO crystal angular tuning range from 28.7 to 31.3° (Fig. 4, right). Since the theoretical signal wave tuning range in the BBO crystal at 355 nm pump should be from 396 to 710 nm, practical limitation of the tuning range was essentially set by the seed spectrum extent: the 470 nm signal wavelength corresponds to the 1450 nm idler wavelength, which is close to the seed (continuuum) spectral edge, and the 660 nm signal wavelength corresponds to the 768 nm idler wavelength, which is also close to the seed radiation spectral edge. The seed spectrum can be extended by using a longer PCF, but in such case losses in the longer PCF would be greater and we would have less seed power, therefore we chose a greater seed power over a slightly broader signal wave tuning range.

Although the bandwidth of 500 ps duration pump pulses is estimated to be roughly Δλ = 0.37 pm, generated signal wave spectral bandwidths (at FWHM level) are of the order of nanometres and in a range from 0.6 to 13 nm. This indicates that the generated signal wave pulses have a significant chirp. At longer wavelengths (such as 625 nm wavelength, with spectrum depicted in Fig. 4, left), the signal spectra are even broader since they approach the degenerate regime.

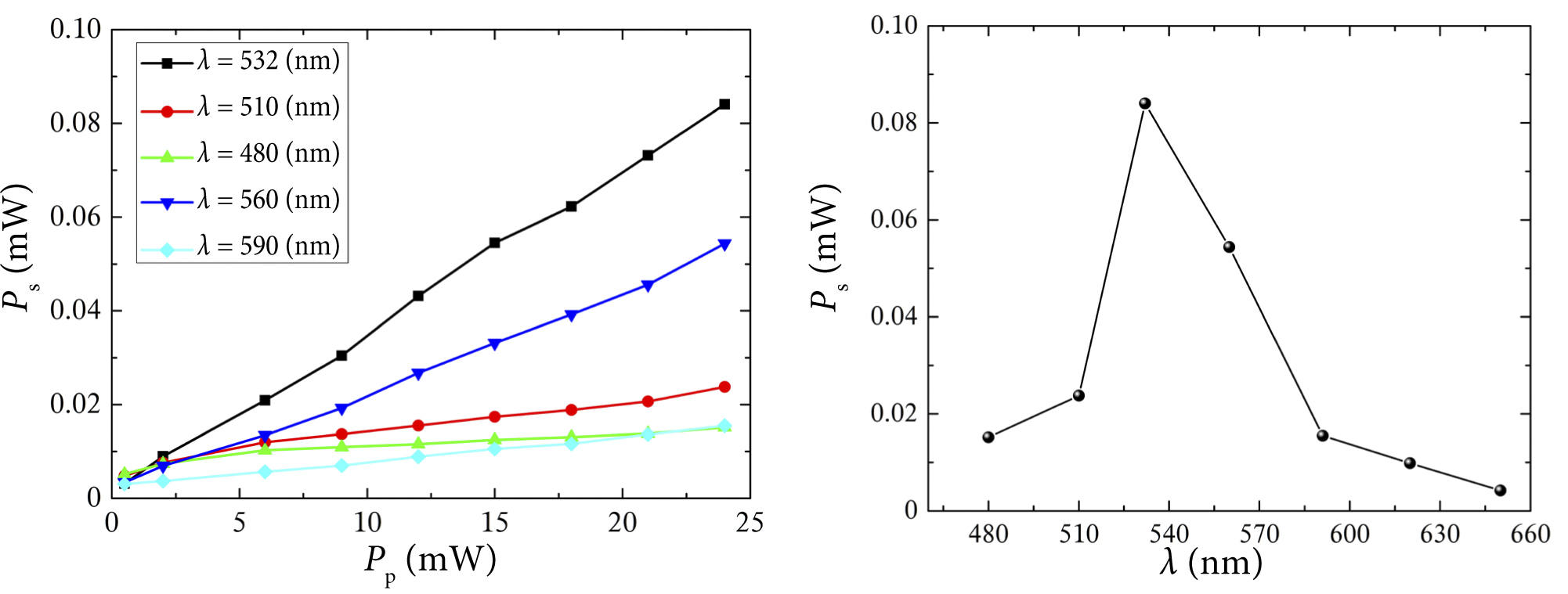

Energy characteristics of the BBO OPA were measured at the maximum seed power (P_seed = 5.7 mW) and the FH pump polarization was set to correspond to the maximum spectral extent of the seed (continuum) spectrum. The maximum signal wave power at different wavelengths is depicted in Fig. 5 (left). The first important thing to note is that the pump to signal conversion efficiency is very low and does not exceed 0.35% for any wavelength. Such result is related to very complicated subnanosecond BBO OPA operation conditions: a low spectral power density of the seed radiation, a low pump intensity and a relatively large spatial walkoff effect in the BBO crystal. The nonlinear interaction length for the signal wave in theory should be around 14 mm; however, due to the spatial walk-off effect between pump and signal, the actual interaction length at our focusing conditions was 3–4 mm (depending on the signal wavelength). The 5.7 mW seed power is the overall power through the entire continuum spectrum, but the spectral power density for distinct wavelengths varies by several orders of magnitude (Fig. 3), e.g. at 1168 nm seed wavelength (which corresponds to 510 nm signal wavelength) the spectral power density is only 210 nW/nm.

The low pump power problem is related to the fact that the maximum peak intensity of the TH pump is roughly 1.45 GW/cm² which is relatively low and sharper focusing conditions cannot be used due to the LIDT of the BBO crystal. Another important factor regarding the BBO crystal is the spatial walk-off effect between pump and signal waves which ranges from 69 to 74 mrad across the signal wave tuning range. Such walk-off values even at the current soft focusing conditions limit the nonlinear interaction length in the BBO crystal.

The second important feature, which is also visible from the signal wave power dependence on pump power (Fig. 5, left), is a considerably greater power of the λ = 532 nm signal wave. This is related to the aforementioned seed radiation spectral power density variations: seed (continuum) generation efficiency is low and most of the energy remains concentrated at the seed (continuum) pump wavelength (1064 nm), which corresponds to 532 nm signal wavelength.

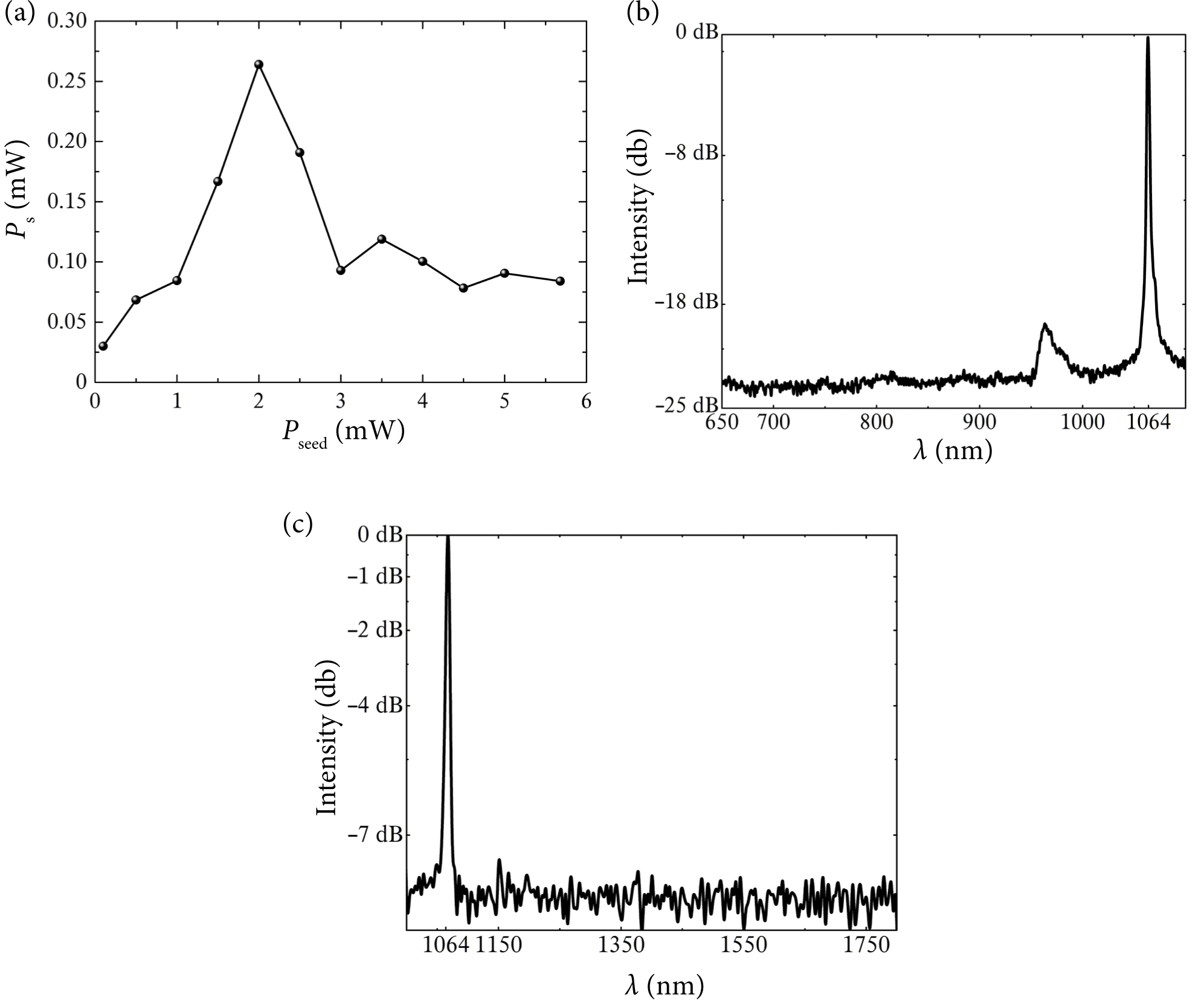

The seed radiaton influence to signal wave power was further investigated by measuring the signal wave power dependence on seed power, with the pump power fixed at the maximum value (P_TH = 23 mW). Seed power was adjusted by changing the seed pump (FH) power, which also considerably changed the spectral characteristics of the seed radiation. Results for most wavelengths are very similar to the signal wave maximum power dependence on the pump pulse power depicted in Fig. 5 (left); however, for the signal wavelength around 532 nm the dependence is different (Fig. 6(a)).

When seed radiation power is decreased, an increase of signal wave power up to 0.264 mW, which corresponds to 1.15% pump to signal conversion efficiency, is observed. It peaks at P_seed = 2 mW and then signal wave power starts to decrease. This effect and its occurrence for λ_s = 532 nm can be explained as follows. Decreasing seed pump power reduces the continuum spectral extent (Fig. 6(b, c)), but raises the spectral power density of the pump FH wavelength, which corresponds to the λ = 532 nm signal wavelength, and thus compensates the decrease of spectral intensity due to decreasing seed pump power. Therefore, an increase of power is observed for the λ = 532 nm signal wavelength, but is negligible for other wavelengths where no noticeable spectral intensity increase due to the shrinking continuum spectrum was observed. When seed power is decreased below 2 mW, the seed spectrum width is reduced to the vicinity of the seed pump wavelength (1064 nm) and the further spectral intensity increase due to the shrinking continuum bandwidth does not exceed the intensity loss due to decreasing pump power, resulting in decreasing signal wave at λ = 532 nm power.

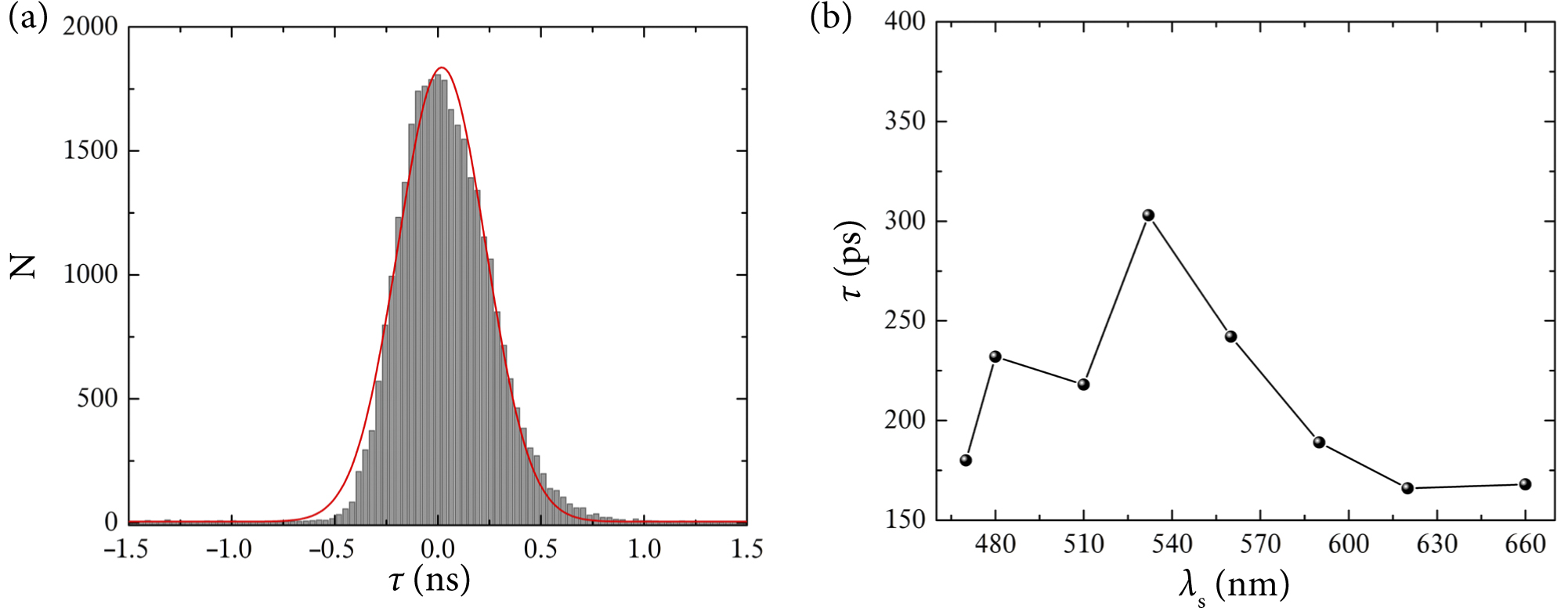

Another important characteristic that was measured is the signal pulse duration. We used the timecorrelated single photon counting (TCSPC, [31]) system PicoHarp 300 to estimate the duration of BBO OPA signal wave pulses. The TCSPC system measures signal photon arrival time statistics with respect to a reference signal, which in this case was an optical signal: a reference photodiode was used to provide an optical signal from SH pulses generated by our Nd:YAG MOPA laser system. The retrieved signal photon arrival time histogram was approximated by a Gaussian function and pulse duration was estimated at the FWHM level (Fig. 7, left). The temporal resolution of our TCSPC measurement setup was 16 ps.

The measured signal pulse durations are depicted in Fig. 7 (right). The generated signal pulses have subnanosecond durations ranging from 166 to 303 ps. Longer generated pulse duration correlates with a greater maximum output power, indicating that stronger nonlinear interaction yields signal pulse duration closer to the pump pulse (500 ps) duration.

Signal pulse duration essentially remains the same (within the 16 ps temporal resolution limit of the TCSPC setup) when changing the pump power (Fig. 8, left), which is the case when parametric amplification has a low efficiency and is far from the pump depletion regime. However, seed radiation and its temporal matching with pump radiation significantly affects the generated signal pulse duration (Fig. 8, right).

The exact temporal matching (zero delay) corresponds to the maximum output power and the minimum generated pulse duration. When there is a certain delay between pump and seed radiation, generated signal pulses have lower power and longer duration. This effect is due to the fact that seed radiation (continuum) obeys the complex temporal characteristic, which is longer (>1 ns) than that of the pump pulse. When pump pulses are delayed with respect to seed radiation, the temporal peak of seed radiation does not match the peak of pump pulses and the energy of seed and pump radiation is redistributed in a broader time interval – the generated signal wave duration increases.

4. Results of numerical simulation and discussion

We have performed the numerical simulations of the three-wave nonlinear interaction equations including the dispersion terms:

Here, S_j(Ω) is the Fourier transform of the complex amplitude A_j(t) and the real electric field is given by E(t, z) = ℜ[A(t, z)exp^(iω_j0t)]. Indices 1, 2 and 3 refer to the signal, idler and pump waves, respectively. The first rhs terms describe the linear dispersion. $K_j(\omega )=k_j\left({\omega }_j\right)-\frac{\text{Ω}}{u_{30}}$ is the wavenumber (k_j) shifted with respect to the pump wave propagation. ω is the radial frequency and u₃₀ is the pump group velocity. The nonlinear interaction coefficient is σ_j = d_effω_j0/(cn_j(λ_j0)). Here d_eff is the effective nonlinear susceptibility that depends on the crystal orientation [32], c is the speed of light and n_j is the refractive index at the central wavelength λ_j0 calculated from the Sellmeier equations for the BBO crystal [32]. FT [◦] denotes the Fourier transform. Eqs. (1–3) were simulated by the symmetrized split-step Fourier method [33]. The crystal length L = 15 mm was divided into 500 longitudinal steps. The boundary condition for the pump wave can be expressed as

Here a₃₀ is the input amplitude and τ = 500 ps is the pulse duration at FWHM. The pump wave is the Gaussian subnanosecond pulse. There was no signal wave at the input, A₁(t, z = 0) = 0. The input idler wave was simulated from the experimentally measured spectrum. The spectra displayed in Fig. 3 were combined and linearly interpolated so that in the time domain they were subdivided into 2²² equal steps. The time interval was [–16τ, 16τ). Afterwards, 1/16 part of the spectrum was cut from the spectrum at the predefined central frequency (for example, frequency corresponding to 1064 nm wavelength). This part of the spectrum was multiplied by the chirp phase factor: exp(iγΩ²τ²), where the non-dimensional chirp parameter γ = 10^–4. Such chirp expands the idler time pulse to several nanoseconds. In the simulations, the input pump power was 23 mW, the repetition rate 1 kHz and the beam diameter 1.5 mm. The input idler power was 5 mW.

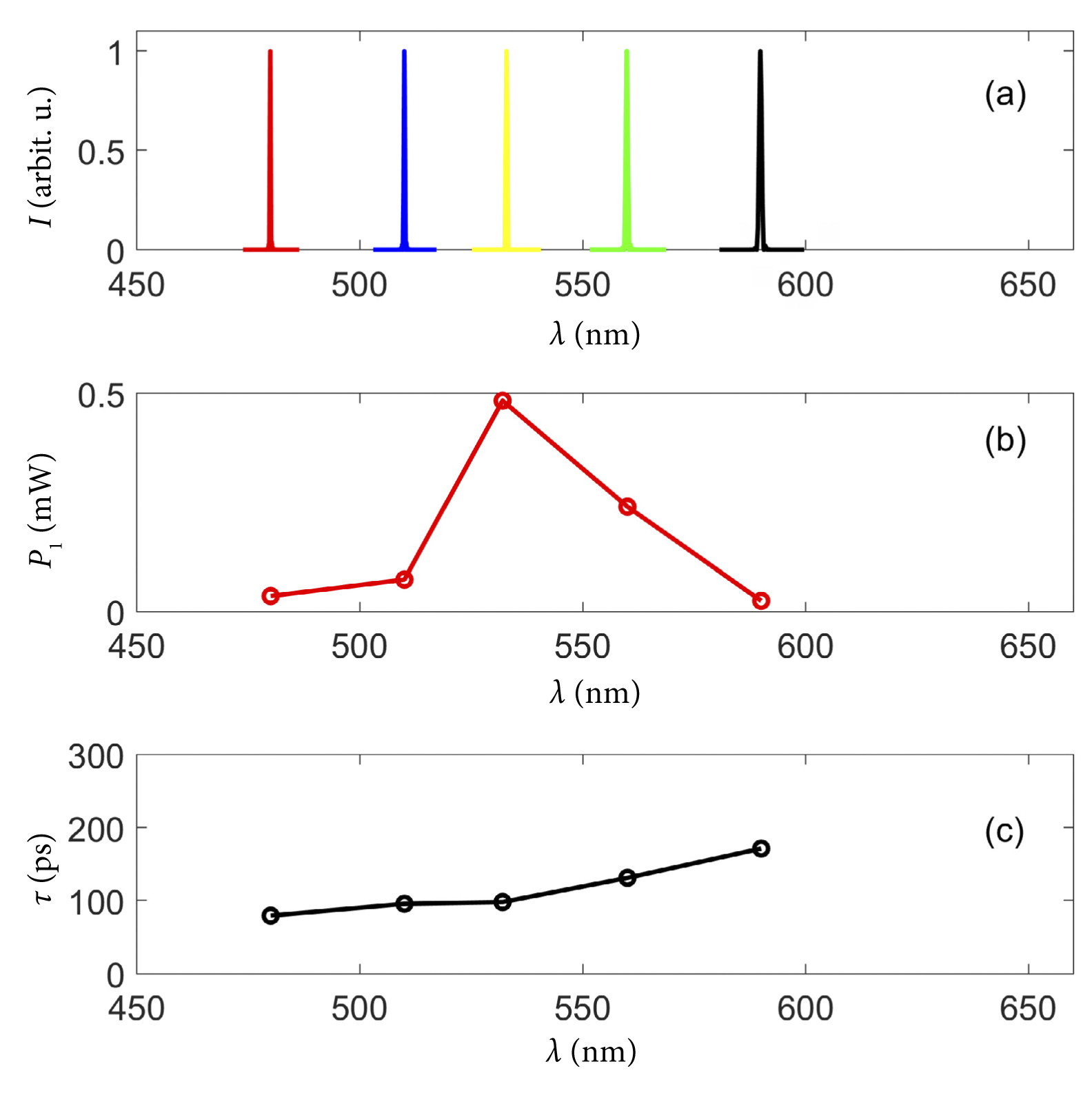

The numerically obtained results are presented in Fig. 9. Five spectra in Fig. 9(a) correspond to a different phase matching (type I) angles BBO crystal. As in the experiment, the maximum output power is obtained at 532 nm wavelength that corresponds to the idler peak at 1064 nm. The curve in Fig. 9(b) resembles the experimental data: numerically simulated signal wave power is low (fractions of miliwatts), similar to Fig. 5(b). However, the output power is higher than the measured one since the spatial effects like diffraction and walk-off between ordinary and extraordinary waves were neglected in the numerical simulation.

The pulse duration in Fig. 9(c) does not coincide exactly with the experimental duration (Fig. 7) due to the chirp parameter that in the numerical simulations was equal for all spectral parts. The real continuum spectrum obeys a complicated spectral phase that could not be measured. However, the numerically calculated pulse profiles qualitatively agreed with the experiment – signal pulses were in the subnanosecond range.

5. Conclusions

To the best of our knowledge, the first widelytunable in the visible spectrum range BBO optical parametric amplifier generating subnanosecond pulses was demonstrated and its spectral energy and temporal characteristics were investigated. The continuous signal wavelength tuning in the 470–660 nm spectral range was achieved and was limited by the seed radiation spectral extent. The maximum pump to signal conversion efficiency was low (1.15%) due to a strong spatial walk-off effect in the BBO crystal and the limitation of the maximum pump power due to the laser induced damage threshold in the BBO by the pump pulses. Seed radiation spectral energy distribution was the key factor determining that the maximum signal wave power was at λ = 532 nm, which corresponded to the 1064 nm idler wavelength for which seed spectral power density was the highest. This indicates that a greater pump to signal coversion efficiency could be achieved with a more powerful seed source and additional parametric amplification stages. The pulse duration measurements showed that the generated pulses also have subnanosecond durations ranging from 166 to 303 ps at different signal wavelengths. The numerical simulations displayed qualitatively similar results and slight discrepancies were related to some factors not accounted for in them.

Acknowledgements

This work has received funding from the European Regional Development Fund (Project No. 01.2.2-LMT-K-718-03-0004) under Grant Agreement with the Research Council of Lithuania. We also thank Prof. Mikas Vengris for his advice and technical assistance during TCSPC measurements.
