IN SEARCH OF AN ARTIFICIAL MORPHOTROPIC PHASE BOUNDARY: LEAD FREE BARIUM TITANATE BASED COMPOSITES

Lithuanian Journal of Physics, Vol. 60, No. 4, pp. 225–234 (2020)
© Lietuvos mokslų akademija, 2020

Broadband dielectric spectroscopy was used to study potassium niobate (KN) and barium titanate (BT) core–shell-like composites. KN shell was obtained using a solvothermal reaction method. High frequency results show a huge anomaly that is associated with electro-mechanical coupling. We tried to extract spontaneous polarization values using a theoretical model. We also observed little or no evidence of KN-related phase transitions in the dielectric spectra, although infrared measurements showed typical KN spectral features. Furthermore, we show that a small change in the sintering process allows tuning of dielectric permittivity by an order of magnitude.

Keywords: ferroelectricity, barium titanate, core–shell, composites, dielectric measurements, electromechanical resonance

1. Introduction

Piezoelectric materials play an important role in our everyday electronic devices. Pb(Zr_xTi_1−x)O₃ (PZT) is one of the most widely used piezoelectric materials due to its high dielectric and piezoelectric constant and ability to operate in a wide temperature range [1]. In last few decades, numerous studies showed a high toxicity of lead to the environment and health [2–4]. New restrictions are formed on the national level all over the world, limiting the use of lead in certain fields [5, 6]. As a result, a lot of research on lead free piezoelectric solid solutions such as Na_xBi_1−xTiO₃, K_xNa_x−1NbO₃, Bi_xNa_1−xTiO₃, yBi_xNa_1−xTiO₃−(1−y)BaTiO₃ and (1−x)Ba(Zr_0.2Ti_0.8)O₃−x(Ba_0.7Ca_0.3)TiO₃ [7–11] has . 0.0 .7 0.0 been done. Yet, compared to PZT solid solutions, their dielectric and piezoelectric properties are still poor. As reported by others [12, 13], the nature of PZT exceptional properties is related to the morphotropic phase boundary (MPB). MPB is a structural phase transition due to the change of composition. In this region, an increase in piezoelectric properties is often observed. Current research on lead free piezoelectric materials is focused on preparing systems with MPB. In this case, both compositions must dissolve in each other to create a solid solution, and not all MPBs exhibit superior piezoelectric properties. However, a different approach can be used, that allows a much broader selection in compositions, where it is not required that compounds dissolve in each other. It is possible to create similar conditions as in MPB by forming a bulk hetero-epitaxial interphase [14, 15]. In such system, a thin layer of a shell compound surrounds and stresses the lattice of a core compound that may result in improved overall properties. In this paper, we show a composite structure, where the core phase is stressed by the shell phase (a layer, deposited onto the structure formed by core material). Our study is focused on improving the ferroelectrical properties of barium titanate BaTiO₃ (BT) by creating stress with the potassium niobate KNbO₃ (KN) shell.

2. Materials and methods

In this study, BT, 0.22KNBT and 0.25KNBT samples (the number refers to KN/BT molar ratio) were prepared in the following steps. The tetragonal BT powders (BaTiO₃, particle size of approximately 300 nm, Sakai Chemical Industry) were used. The BaTiO₃ powders were mixed with ethanol and an organic binder, poly(vinyl butyral) (the average polymerization degree of 1000, Wako Pure Chemical Industries), making 2 wt% of BaTiO₃ powders, and dried at room temperature. The resultant powders were sieved and pressed into a green compact using a uniaxial press at 250 MPa. The binder was burned out at 600°C for 10 h. To promote necking of BaTiO₃ particles, these compacts were sintered at 1000°C for 2 h in air. The BaTiO₃ compacts with a necking structure were immersed in 5.2 M niobium pentaethoxide (Nb(OC₂H₅)₅, 99.99%, Kojundo Chemical Laboratory) ethanol (EL grade, Kanto Chemical) solution in N₂ atmosphere. These compacts were then immersed in water at 20°C for 6 h to facilitate hydrolysis and condensation of Nb(OC₂H₅)₅, and niobium hydroxide gels were formed inside the BaTiO₃ compacts. After drying at room temperature, the BaTiO₃ compacts with niobium hydroxide gels were heated at 600°C for 5 h. The amount of the Nb source added to the BaTiO₃ compacts was controlled by the number of cycles of the immersion and the subsequent heating procedures. The resultant niobium oxide/BT compact was placed in a Teflon container filled with KOH (UGR grade, Kanoto Chemical) and K₂CO₃ (UGR grade, Rare Metallic) ethanolic solution (KOH/K₂CO₃ = 0.22, [K⁺] = 1.0 M). The K/Nb atomic ratio was fixed to 10. Then, the solvothermal treatment was carried out at 230°C for 20 h in an autoclave. After the solvothermal treatment, the compacts were washed with ethanol and dried at 200°C for 5 h. The composition ratio of the obtained KN/BT complex ceramics was calculated based on mass changes due to the complete conversion reaction of Nb₂O₅ into KN. In this study, we prepared the KN/BT complex ceramics with the composition ratio of KN/BT = 0.22 and KN/BT = 0.25, which were obtained by repeating for 3 and 5 cycles of the immersion and the subsequent heating procedures, and subsequently these samples were named through this manuscript as 0.22KNBT and 0.25KNBT, respectively. We also investigated the sintered BaTiO₃ (BT) compact with a necking structure as a reference sample. Additional information can be found elsewhere [14, 15].

Dielectric measurements were performed at 100–500 K temperature and in the 10²–10¹¹ Hz frequency range. The samples were polished and washed in acetone using an ultrasonic bath, and then parallel electrodes were made using silver paste. At the lowest frequencies (20–10⁶ Hz), a flat capacitor method and a precision LCR meter HP4284A were employed. For higher frequency data (10⁶–10⁹ Hz), a coaxial line was terminated by a flat capacitor – the complex reflection coefficient was measured using an Agilent 8714ET vector network analyzer. And for highest frequencies, dielectric rods were made. The samples were placed in a waveguide system, and then reflection and transmission were measured using an Elmika scalar network analyzer R2400. Dielectric permittivity was obtained by solving the optimization problem. Dielectric hysteresis was obtained using an aixACCT TF Analyzer 2000E system. All measurements were performed during the cooling cycle at 1 K/min rate, with a T type thermocouple or a PT100 temperature sensor.

3. Dielectric spectra

Dielectric measurements of BT, 0.22KNBT and 0.25KNBT systems were performed. Temperature dependences of 0.25KNBT at different frequencies are shown in Fig. 1. Here, three anomalies are observed and these anomalies coincide with the phase transitions in barium titanate at temperatures of 203, 278 and 393 K [17]. However, the same results show no sign of potassium niobate phase transitions at temperatures of 263 and 481 K, although infrared measurements showed the evidence of KN phase (see Fig. A1 in the Appendix).

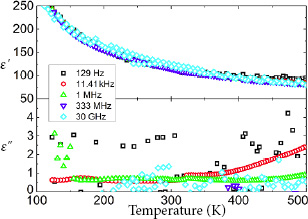

Fig. 1. Temperature dependence of the real (a) and imaginary (b) parts of dielectric permittivity for composite 0.25KNBT.

There could be several reasons why we have a low contribution to dielectric permittivity from the KN phase. First of all, KN could have a high concentration of defects as it was obtained during the solvothermal reaction [18]. Moreover, the crystallite sizes of KN are around 50 nm and, considering the size effect, the dielectric permittivity should be low [19]. Thus, the phase transitions might be screened by extrinsic effects.

Furthermore, frequency dependences of complex dielectric permittivity (Fig. 2) were approximated using the superposition of several Cole–Cole functions [20]:

ε^{*} = ε_{\infty} + \sum_{n = 1, 2} \frac{Δ ε_{n}}{1 + {(i ω τ_{n})}^{a_{n}}} . (1)

Here, ε_∞ is high frequency dielectric permittivity, τ is mean relaxation time, ω is frequency, Δε is contribution to dielectric permittivity, and α is parameter determining the breadth of the distribution of relaxation times (α = 1 means δ-function type distribution, α = 0 means infinitely broad distribution).

The results show one clear relaxation with relaxation time of 60±12 ps. This relaxation gives the main contribution to dielectric permittivity. The fact that this relaxation time hardly depends on temperature strongly suggests that the nature is related to acoustic resonance. In short, as the ferroelectric domain wall moves, it emits Barkhausen acoustic noise [21], which can resonate in the grain or in a grain cluster; as BT is piezoelectric, the response can be seen in dielectric spectra. Alternatively, a uniformly polarized grain can contribute to the dielectric permittivity via electromechanical coupling, with contribution determined by characteristics of the acoustic resonance of the whole grain. Assuming the electromechanical mechanism, it is possible to calculate the acoustic wavelength from the experimental data. It is reported that the velocity of acoustic waves in BT is around 5.5 km/s [22, 23]. The calculated half wavelength is 1030±200 nm that is in a good agreement with the BT cluster size in the 0.25KNBT system (see Fig. A2 in the Appendix). Interestingly, this contribution disappears at temperatures above the Curie point, as can be seen from Fig. 1 (only relaxation due to Maxwell–Wagner polarisation remains above 400 K). The same happens with the broad relaxation in frequencies of 10³–10⁶ Hz. This could indicate that the source of the latter relaxation is domain wall motion in BT grains. Similar measurements were done with the core–shell samples where BT was replaced with strontium titanate (ST). In this case, the dielectric data showed no dispersions up to 30 GHz (see Fig. A3 in the Appendix). This further supports our idea of an electromechanical origin of this microwave process observed in KNBT composites.

Fig. 2. Frequency dependence of the real (a) and imaginary (b) parts of dielectric permittivity for 0.25KNBT.

Moreover, the BT and 0.25KNBT composites have a similar dielectric permittivity, although the densities are quite different (BT 59.53% and 0.25KNBT 78.67%). This fact further supports our assumption that KN gives almost no contribution to dielectric permittivity, as the core structure of 0.25KNBT was similar to the pure BT pellet. The main difference between the experimental data is a higher conductivity for the 0.25KNBT system at high (above 450 K) temperatures that could be due to defects in the KN structure. Also, a significantly lower dielectric permittivity was observed in the 0.22KNBT system, that cannot be explained by a lower density or low KN contribution (Fig. 3).

The 0.22KNBT and 0.25KNBT have different BT structures (see Fig. A4 in the Appendix). The 0.22KNBT composite has a necking connection between grains, and the grains of 0.25KNBT composite are merged into bigger clusters. Lower dielectric permittivity can be explained using an effective medium approach, i.e. the Lichtenecker model [24, 25]:

ε^{* β} = X ε_{1}^{β} + (1 - X) ε_{2}^{β}, - 1 \leq β \leq 1. (2)

Here, ε^* is effective complex dielectric permittivity, X is volume fraction of the first medium, ε₁, ε₂ are dielectric permittivity of media one and two, respectively, and β is parameter describing the structure of the system: if β = −1, the system is made of plates connected in series, and if β = 1, it is made of parallel pillars (see Fig. A5 in the Appendix). In the 0.22KNBT and 0.25KNBT systems, both phases percolate, meaning β > 0 [25]. Also, longer calcination time results in systems with larger interconnections between grains and a more pillarlike structure than a necking system, this means that parameter β is higher for 0.25KNBT than for 0.22KNBT. It can be mathematically shown that for smaller β values the phase with lower dielectric permittivity becomes dominant [25].

Fig. 3. Temperature dependence of the real part of di-electric permittivity for BT, 0.22KNBT and 0.25KNBT at 1 MHz frequency.

4. Polarization

The acoustic resonance causes a change in polarization, which gives a rise in dielectric permittivity. Arlt et al. have calculated the relationship between spontaneous polarization and contribution to dielectric permittivity in the presence of ferro-elastic domains [26]:

Δ ε_{r} = \frac{P_{0}^{2}}{2 C_{55} ε_{0} S_{0}^{2}}, f_{c} = \frac{\sqrt{C_{55} / q}}{π d} . (3)

Here, P₀ is spontaneous polarization, C₅₅ is (shear) elastic constant, ε₀ is vacuum dielectric constant, S₀ is spontaneous deformation, ρ is density, and f_c is mean relaxation frequency. An effective contribution to dielectric permittivity Δε was obtained from Cole–Cole approximations (Fig. 2). To obtain real dielectric permittivity Δε_r values from the experimental effective ones, we applied the Lichtenecker model, with β = 0.4 [27]. It is worth noting that the permittivity ε₁ (Δε_r = ε₁) of the first phase (BT) is a lot higher than that of the second one (air or composite of air and KN). In this case, we can assume that the dielectric permittivity of the second phase is infinitesimal and can be neglected:

ε_{1} = {(\frac{ε^{* β} - (1 - X) ε_{2}^{β}}{X})}^{\frac{1}{β}} ≅ \frac{ε^{* β}}{X^{1 / β}} . (4)

The obtained evaluation of the real permittivity of core material allows us to apply Eq. (3). In our work, we replace elastic constant C₅₅ with more general Young modulus as in our case we have homogeneous ceramic and resonance occurring in grain clusters which are randomly orientated. Temperature dependence of Young modules was taken from [28], electrostriction coefficient Q from [29, 30]. Spontaneous deformation can be written as S₀ = $P_{0}^{2}$ Q [26]. Using Arlt’s model we have managed to obtain the spontaneous polarization temperature dependence curve that is similar to the experimental curve found in literature [31] (Fig. 4).

However, in our case calculations were based on ceramic measurements and due to the random rotation orientation of grains, the calculated polarization should be around two times lower than in crystals. It is reported that at room temperature pure, high quality BT crystals have polarization values up to 26–27 μC/cm² [26, 32, 33], that is still higher than those obtained here by around 15–30% (the double value of the obtained polarization at room temperature is 19–23 μC/cm²).

In order to verify our calculations, hysteresis loops measurements were performed in vacuum (pressure <10⁻⁴ hPa) with 100 kV/cm field for the 0.25KNBT and BT systems (see Fig. A6 in the Appendix), which possess the same structure of the core material. The results showed slim hysteresis loops with high back switching and low remnant polarization values (4 μC/cm) (Fig. 4), typical of fine grain ceramics [34, 35]. Furthermore, the P(E) measurements showed high coercive field up to 10 kV/cm, that suggests about a high number of deep defects in the BT structure, which may pin the domain walls. This could explain different results obtained from the calculation and P(E) measurements. Dielectric measurements are done with small amplitude signals, this means that the domain wall moves just slightly, and if the domain wall is pinned at some point, other points of the wall can still move. We can imagine the domain wall as a membrane. The mobile sections of domain walls have a small chance to move far enough to encounter a new pinning defect. On the other hand, for P(E) measurements high fields are applied, in this case domain walls have to move huge distances; and if a domain wall is pinned, deep defects force the domain wall to move back after the removal of electrical field, resulting in a low apparent remnant polarization [35]. In such case, very large fields, which are enough to unpin domain walls, are needed to estimate the true spontaneous polarization. Thus, the indirect method to estimate the switchable polarization based on dielectric spectroscopy has an advantage of being less sensitive to pinning defects.

Fig. 4. Calculated and measured spontaneous polarization values for BT and KNBT systems. The error bars for measured systems are smaller than experimental points.

In addition, we observe higher spontaneous polarization values for the 0.25KNBT system in both cases. There could be several explanations. First of all, our calculation shows a lower polarization value than that found in literature; this could mean that there are some domain walls that cannot move at all, for instance, the domain wall can be fixed to the BT grain boundary surface. If we deposit a film of KN on the BT grain, we decrease surface tension on BT grains; also, KN could remove the absorbed matter on BT. All in all, we change the grain boundary condition on the BT surface and some domain walls could be unpinned. This theory works for the results obtained from P(E) measurements as remnant polarization is increased by a fixed amount in all temperature range. For the calculated polarization results, however, it is observed that the spontaneous polarization of 0.25KNBT at temperatures up to 278 K is equal to that of BT in the margin of error, but above that temperature the spontaneous polarization of 0.25KNBT is higher. At 278 K temperature a phase transition, from orthorhombic (lower temperature phase) to tetragonal, occurs in pure BT. Thus, the second explanation could follow: the epitaxial KN on the BT surface stresses the BT microscopic structure (especially in the tetragonal phase), leading to an increase in the domain wall count and spontaneous polarization, similarly as in the systems with a morphotropic phase boundary [14]. Possibly, the third explanation should be considered: according to Ref. [36], enhanced non-180° switching was observed in the KN-BT composites, which could be the reason of an easy movement of the domain walls in a low signal regime. Thus, we obtain a higher contribution to dielectric permittivity, and from Eq. (3) a higher switchable spontaneous polarization. This explanation seems favourable also due to the fact that at high fields polarization is the same in both 0.25KNBT and pure BT, meaning that the value of spontaneous polarization has not changed. Interestingly, the high-field value is very similar to that obtained from dielectric data, so the estimate is correct. However, the KN shell improves the mobility of domain walls, leading to an enhanced electromechanical response. This, in a sense, is the artificial MPB.

5. Conclusions

Based on the dielectric spectroscopy results, it can be concluded that the main contribution to dielectric permittivity in the microwave region comes from the electro-mechanical resonance in BT grains. Lower dielectric permittivity values in the 0.22KNBT system were observed due to different BT structure topology. Thus, controlling BT structure sizes and topology in the sample during the preparation stage allows us to tune the dielectric response of our system. Also, the same results show almost no contribution to dielectric permittivity from KN in the 0.25KNBT system.

And lastly, remnant polarization values for the composite 0.25KNBT are higher than for the pure BT. Several reasons could follow. Firstly, KN on BT grains reduces the surface tension or absorbed matter and reduces the deep defect count which allows an easier domain wall movement. Secondly, KN stresses the BT microscopic structure, thus increasing the domain wall count similarly as at the morphotropic phase boundary. Even though the first explanation cannot be excluded, it is not sufficient. Thus, the second mechanism is needed to explain some of the observed experimental results. This can be considered an indication of an artificial MPB.

Acknowledgements

This research was funded by a Grant (No. LJB- 3/2016) from the Research Council of Lithuania. This research was performed in cooperation with the University of Yamanashi.

Appendix

Fig. A1. Infrared spectra show the evidence of potassium niobate (KN) phase in the 0.25KNBT system. The dot-dashed (red online) curve represents pure barium titanate (BT) samples. The frequencies of all phonon modes coincide well with works published earlier [37]. The black curve shows one additional phonon mode which represents the KN phonon mode at 430 cm⁻¹ [38]. A small gradual reflection intensity decrease at higher frequencies is due to porous samples.

Fig. A2. SEM image of the pure BT structure shows closely packed clusters of BT particles. The sizes of clusters are around 1 micron in diameter. In this work there were 2 samples with this structure: pure BT and KNBT0.25. To obtain KNBT0.25 we submerged pure BT pellets into ethanol, KOH, K₂CO₃ and Nb₂O₅ solution for solvothermal solidification reactions.

Fig. A3. Temperature dependences of ε′ of 0.25KNST system at different frequencies are on the same curve. This means that we have no dispersion in all measured temperature range. These results supplement our earlier statement that there must be piezoelectric grains for electrometrical resonance to occur.

Fig. A4. SEM image of the pure BT shows a necking BT structure. Cluster sizes are around 500–600 nm. In this work one sample with this structure is presented: KNBT0.22. This sample is prepared similarly as KNBT0.25 shown earlier.

Fig. A5. Coarse approximation of the Lichtenecker model. ß is a parameter describing the structure of the system: if ß = −1, the system is made of plates connected in series, and if ß = 1, it is made of parallel pillars (a). In our case we have a complex intermediate structure. In (b) we have compared two systems with unbaked (left) and baked (right) grains. We observe that the baked system resembles a connected pillarlike structure.

Fig. A6. *P(E)* measurements for pure BT and 0.25KNBT structures. Both structures show similar saturation polarization values at room temperature which are around 11.3 μC/cm². Also high back switching is observed which is typical of fine grain ceramics. Alternative high back switching could occur due to a large amount of defects [18]. Furthermore, we have observed that samples with KN have a higher remnant polarization value, which is around 4.4 μC/cm², and values for pure BT are 3.2 μC/cm².
