EFFECT OF VERTEBRAL DEGENERATION ON THE INSTABILITY OF SPINE

Received 11 December 2019; revised 1 February 2020; accepted 5 February 2020

1. Introduction

The key element of the human body is the spine that provides the  main support for mechanical behaviour of the body, allowing it to keep functionality during the  entire life period [1]. From a  mechanical point of view, the  spine may be considered as a column-like structure consisting of relatively stiff structural bodies, i.e. vertebrae, connected by flexible interver-tebral discs (IVD). The  structure, especially flexible IVD, is very sensitive to deformation. Even small changes of the geometry of elements may lead to remarkable changes of a column-like shape and, as a consequence, to the global instability.

Stability criteria are characterized by the threshold of values of deformed shape parameters. The biomechanical instability of the spine is related to the change of spine-specific geometric shape parameters like spinal motion [2]. The spinal motion is measured in degrees of the range of motion, or ROM. Finite deformations of the  spine geometry lead to redistribution of forces. Because of interver-tebral shear the axial load induces eccentric forces. These effects increase the shearing of the vertebrae. Changes of the shape are induced not only by short-term life loads but also by long-term phenomena. With ageing, progressively increasing degradation of biological tissues affects all spinal units. Instability of the spine is an intensely controversial subject.

We are interested in changes related to osteoporotic degradation. The newest statistical data shows that people with severe osteoporosis had severe degenerative changes [3]. Research of osteoporotic degradation demonstrates a  decrease of mechanical properties of the lumbar bone [4, 5]. New results [6, 7] demonstrate a decrease of bone density and, as a consequence, degradation of elasticity properties. These effects lead to a visible deformation of the vertebral body, which in turn leads to a deformation of the IVD [8–10]. It can be argued that osteoporosis increases the likelihood of losing the stability of the spine and its diagnosis, especially in the aging, is difficult. However, the influence of lumbar vertebra degeneration on spinal stability has not been documented.

Different types of physiological load act on the spine, such as compression, flexion/extension, torsion and lateral bending [11]. These types of loading may essentially contribute to the behaviour of the  degraded lumbar. However, little is known about the increased risk of instability.

Spinal instability is the result of deformations of all the bony and soft spinal components, therefore, application of mechanical methods and numerical modelling yield important information on deformation of the spine, which is hardly obtained by other applied methods. The numerical modelling technique of spine mechanical deformation, especially the finite element method (FEM) combined with tomography measurements, is now a quite usual research methodology. The modelling-based data is widely used to predict mechanical behaviour including instabilities.

Despite a  remarkable progress in evaluating the lumbar bone tissue [9], understanding of osteoporotic changes in functionality is still not satisfactory.

Thereby, the  most loaded spinal fragment is the  lumbar spine, i.e. the  spine fragment composed of L1–L5 vertebrae, which has to bear the  essential part of the  human’s induced load compared to the  other spinal parts [12]. In our study, we considered the lumbar spine 2 motion segments L2–L4 under the influence of compression, torsion, flexion and lateral bending loads.

The aim of this study was to evaluate the mechanical effects of osteoporotic degradation of lumbar bone tissues and their contribution to the secondary deformation of a weaker interver-tebral disc and finely to instability of the spine.

2. Modelling methods and basic data

2.1. Problem description

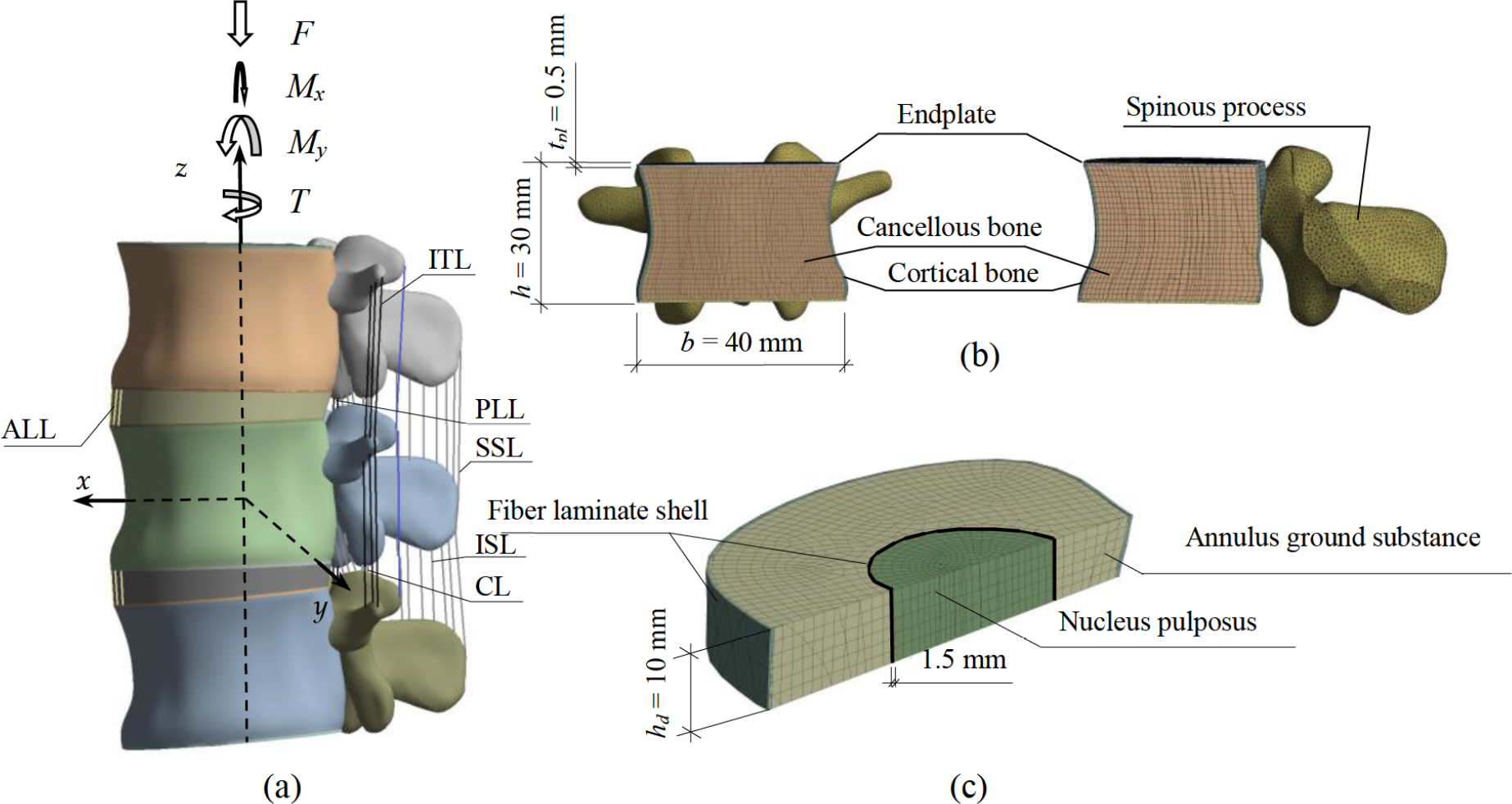

Lumbar spine 2 motion segments comprised of three L2, L3, L4 vertebra connected by IVD are considered (Fig. 1(a)). The model of the vertebral body consists of two main constituents – a cortical shell and a cancellous core. Spinous process elements are added to reflect stiffening of the vertebra’s back part. Two bony endplates are added to close a trabecular domain.

IVD is composed of nucleus pulposus, annulus fibrosus and annulus ground substance. The  disc model usually discriminates between the nucleus, the annulus ground substance and annulus fibres. In the lumbar spine part, the width of nucleus is mostly between 30–50% of the whole IVD cross-section width [13–15].

Three examples of material data for the lumbar spine of 54-year-old and 69-year-old females will be considered. Here a 26-year-old woman presented healthy spine properties.

Each of spine models are subjected to four loading cases which reflect compression load, torsion, flexion and lateral bending. While compression forces generally stiffen the  spine, all other loads may be relevant with regard to spinal instability. A summary of 12 combinations of vertebra properties of loading is given in the study.

A  characterization of the  mechanical state of lumbar vertebrae under osteoporotic degeneration of bone tissues is performed by structural analysis, thereby applying the FEM. The choice of development of the present investigation may be motivated by the following arguments.

• New results may be obtained by exploring the  already known two-phase continuum model. This two-phase – cortical shell and trabecular volume – model is mechanically reasonable and frequently explored in numerical modelling [16–20]. From a mechanical point of view, essential properties of the vertebral body can be retained when regarding it in a macroscopic scale. It was observed that osteoporotic degeneration yields macroscopic changes due to the loss of bone mass.

• Cortical bone may be modified by the  so-called intracortical bone layer, where having pores increases a transition zone [21]. This implies reduction of the thickness of the cortical layer. Moreover, the concentrated reduction of the degraded cortical shell thickness may be considered as an imperfection and one of potential instability factors.

The internal geometry of the vertebral body is constructed to reflect both healthy state and osteoporotic degeneration. Degeneration degree is characterized by the decrease in trabecular bone density and reduction of the  cortical bone thickness layer t_cor, dependent on the severity of osteoporosis.

2.2. Problem geometry

The lumbar spine 2 motion segment of an anatomic shape shown in Fig. 1 is considered. The lumbar body is described in Cartesian coordinates. The coordinate plane xOz is a symmetry plane of the body. The trabecular volume is considered as a three-dimensional continuum while the dense cortical layer is considered as a thin shell. The geometry and dimensions of the model were obtained from high-resolution CT images. The images were reconstructed with 0.3 mm slice thickness and exported as DICOM files. Classification of a particular subvolume to the cortical or trabecular phase was done according to porosity (density) values [22].

Vertebral body geometry is controlled by three basic parameters. The  height of the  lumbar vertebral body model is approximately equal to h  =  30  mm. The  cross-sectional size is approximately equal to b = 40 mm (Fig. 1(b)). For the healthy vertebra, the layer is t_cor, max = 0.5 mm [23]. Various values of the  minimal degenerated thickness were pointed out in accessible references [24–27], where the  minimal value was t_cor, min = 0.2 mm. The thickness of the endplate is about t_pl = 0.5 mm. The spinous process is behind the vertebral body.

IVD was modelled to be of h_d = 10 mm height and was divided into the nucleus and the annulus (Fig. 1(c)).

All major ligaments (anterior longitudinal (ALL), posterior longitudinal (PLL), capsular (CL), ligamentum flavum (LF), intertransversi (ITL), interspinuous (ISL) and supraspinous (SSL)) were represented (Fig. 1(a)).

2.3. Mechanical properties

The cortical phase is modelled as an isotropic elastic continuum. The trabecular phase is modelled as an elastic orthotropic continuum. Thereby, the  transverse elastic modulus is assumed to be the  fraction of the  longitudinal modulus. The  spinous process, superior articular process, transverse process and endplates are described as linear elastic isotropic material.

Material physical properties of the  vertebral bones are seen in Table 1.

The nucleus pulposus (NP) disc is an element that assures spinal stability. Its hydrostatical compression guarantees the stability of the whole disc and spine segment. NP describes linear elastic isotropic incompressible material properties. NP Young modulus is E_NP = 1 MPa with the Poisson ratio ν_NP = 0.4999 [38–40]. Annulus is a typical composite material consisting of annulus ground substance and annulus fibres. The isotropic neo-Hookean material relationship was assigned to the  annulus ground substance model. Coefficients of neo-Hookean material are c₁₀ = 0.25, D₁ = 0.86 with the Poisson ratio ν_A = 0.4 [17, 41, 42]. Young modulus of the external fibre is E_EF = 500 MPa and the Young modulus of the internal fibre is E_IF = 300 MPa with the Poisson ratio ν_F = 0.3 [43, 44].

Ligaments were modelled by tensile-only uniaxial spring elements. The mechanical properties k were taken from [38]. The Young modulus of ligaments is E_ALL = 20 MPa, E_PLL = 20 MPa, E_CL = 33 MPa, E_LF  =  19  MPa, E_ISS =  12  MPa and E_SSL  =  12  MPa. The Poisson ratio of ligaments is ν_L = 0.3.

* Properties of bones are seen in Table 1.

The osteoporotic ageing degeneration process is investigated by three FEM models of different grade. The  Grade  1 model indicates the  healthy case. Osteoporotic vertebrae degradation is characterized by decrease in porous bone density (Grade 2), also the reduction of the cortical bone thickness layer (Grade  3). The  minimal value of cortical wall t_cor, min = 0.2 mm (Grade 3) was chosen from accessible references [24–27].

The essential characteristics of grades are seen in Table 2.

2.4. Boundary conditions and loads

The static boundary conditions are specified to impose the external loading. Each of the three models were considered under the action of purely axial, combined axial-torsion, axial-flexion and axial-lateral bending monotonic loadings, respectively. The zero motion is specified on the bottom, while static, proportionally increasing loading is imposed by the vertical motion of the rigid upper surface of the  endplate. The  axial loading is controlled by the  specified, monotonically increasing force F = 720 kN, while the torque is controlled by rotational moment T = 2.4 Nm, the flexion is controlled by flexion moment M_y = 4.8 Nm and the lateral bending is M_x = 3.6 Nm. The load is transmitted to the trabecular and cortical bones through an endplate as described in [45].

2.5. Finite element model

Development of the  FE model comprises a  mathematical description of the lumbar spine and generation FE assembly. The  time-dependent state of the spine 2 motion segment is obtained by formulating the nonlinear analysis problem. The behaviour of the FE model is governed by kinematic boundary conditions.

In summary, the nonlinear loading-path-dependent equilibrium is characterized by a set of nonlinear algebraic equations. The incremental formulation of this model is defined at time instant t as follows:

Here K_G is the  global nonlinear stiffness matrix comprising the contribution of finite displacements and depending on the current values of displacement vector u(t), while Δu and ΔF are increments of displacement and external load vectors, respectively. Stresses are obtained for the known values of displacements of each element separately.

Loading of the FE model is governed by static boundary conditions. Discretization of the  bodies is performed by applying the preprocessor of the ANSYS code [46].

The thin-walled domain of cortical bone was discretized by shell FE. The shell element applied is a 4-node element with six degrees of freedom at each node. Such an element is associated with plasticity and larger strain and describes structure buckling. It is suitable for analysing thin to moderately thick shell structures. The FE mesh of cortical shell contains 9,669 nodes and 9,367 shell elements.

Cancellous bone, endplates, spinous process, nucleus pulposus and annulus ground substance models were meshed with volumetric FE. This type of a  solid element is a  higher-order 3D 20-node solid element that allows quadratic displacement approximation. The  element supports plasticity, large deflection and large strain capabilities. Finally, the solid phase was described by a 3D mesh containing 710,751 nodes and 188,100 solid elements.

IVD and NP are covered by a  fibre reinforced membrane. The  thickness of the  membrane is 1.5  mm. The  membrane is composed of four layers of fibre laminate which are stacked by +30° and –30° plies. This study used composite 4-node shell elements to simulate the  annulus fibrosus. Here, bending stiffness is neglected and only in-plane behaviour is taken into account. The FE mesh of fibre laminate contains 358 nodes and 416 shell elements. The meshed model is presented in Fig. 1(b) and (c).

Ligaments were modelled with 3-D 2-node truss elements and assigned nonlinear hypoelastic material properties.

3. Results and discussion

3.1. General comments

To evaluate the contribution of osteoporotic degradation, a series of numerical experiments using the  above-discussed FE model equation (1) was considered.

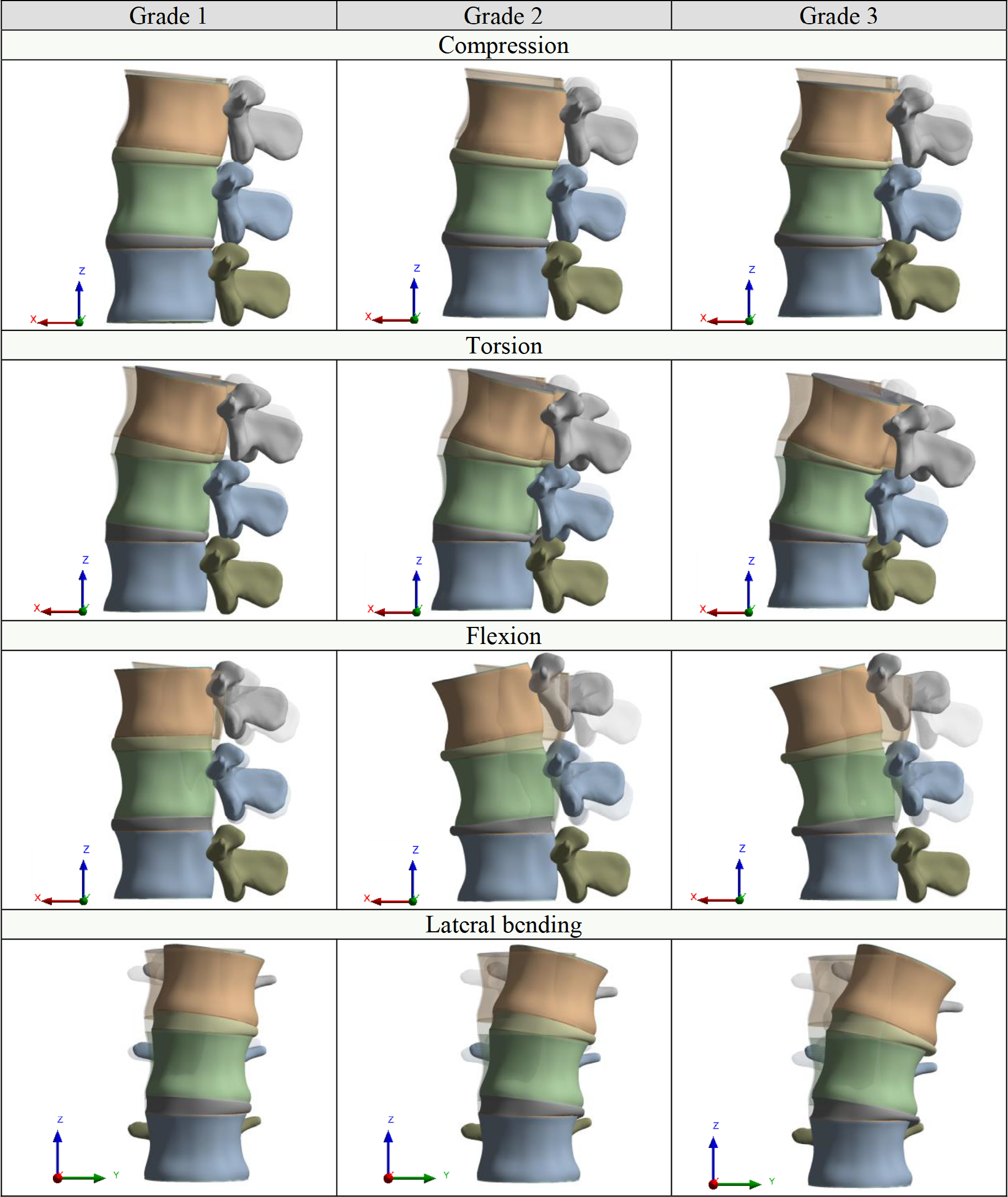

The physical nature of different models is qualitatively illustrated by deformed shapes in Fig. 2, where the body Oxz and Oxy projections of the body are shown. The deformed shape is considered relative to the main axes shown in Fig. 1(а).

In Fig. 2, a comparison of the deformed shapes for different movements is presented. In the simulated osteoporotic spine, there is a higher mobility compared with healthy states for all types of loads. The  first column illustrates the  healthy vertebra (Grade 1), while the next subfigures illustrate degenerate vertebras. The  second column reflects the results limited to the degradation of trabecular tissue (Grade  2), while the  third column includes additionally the degradation of cortical shell (Grade 3). Generally, the deformed shapes reflect the deformation mode of a column-like structure where bending or torsion essentially reduces load-bearing capacity.

The main simulation results are presented below. A detailed analysis of the deformed shape gives understanding of the instability problem.

3.2. Deformed shape

It is obvious that deformation of the spine increases upon application of load. Axial, torsion, flexion and lateral bending loads are the most important load cases yielding various deformation modes characterized by kinematic parameters. Full characterization of the  deformed shape by various parameters occurring due to different loading is a  difficult and time-consuming task. The  deformation limited by ROM and interver-tebral shearing is considered below.

The aim of this study is to investigate the motion of lumbar spine segments as measured by ROM (degree). This type of deformation is due to in-plane bending. The deformed shape of the central axis is transformed to a segmented line with a large offset on the top.

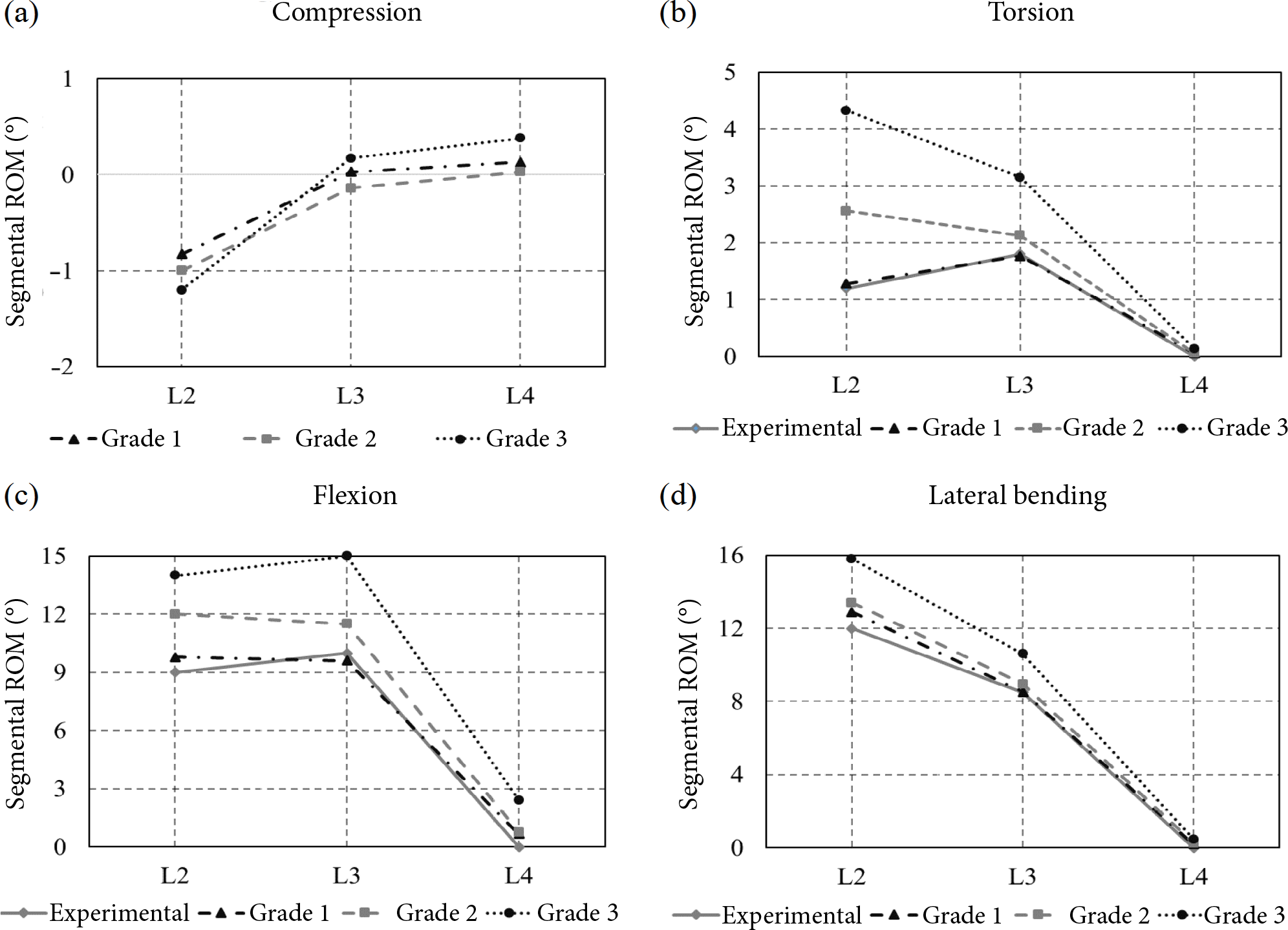

Graphs illustrating the  ROM values of L2, L3 and L4 vertebral bodies for different load cases are shown in Fig. 3. Each graph has 4 curves: experiment, Grade 1, Grade 2 and Grade 3. The ROM values for the healthy spine (Grade 1) were compared with the experimental data [45] obtained by torsion, flexion and lateral bending. The results of FEM varied from 0.2 to 7% and fell within one standard deviation of the experimental results [45] at all levels.

In the  simulated osteoporotic degradation, a higher mobility is detected at every lumbar vertebral level as compared with that of healthy conditions. Motion predicted by the finite element model compares well with the experimental results [45] at all levels.

For any grade of vertebral degeneration, under axial load, the measured segmental ROM was small with an average value of <2° (Fig. 3(a)). In the torsion of the osteoporotic spine, the segmental ROM increases slightly, up to 5°, but does not reach the limit of instability (Fig. 3(b)). Under flexion (Fig. 3(c)) and lateral bending (Fig. 3(d)) loads, the osteoporotic lumbar spine (Grade 3) loses stability, since the ROM of segments exceeds a stability limit of 15° [47].

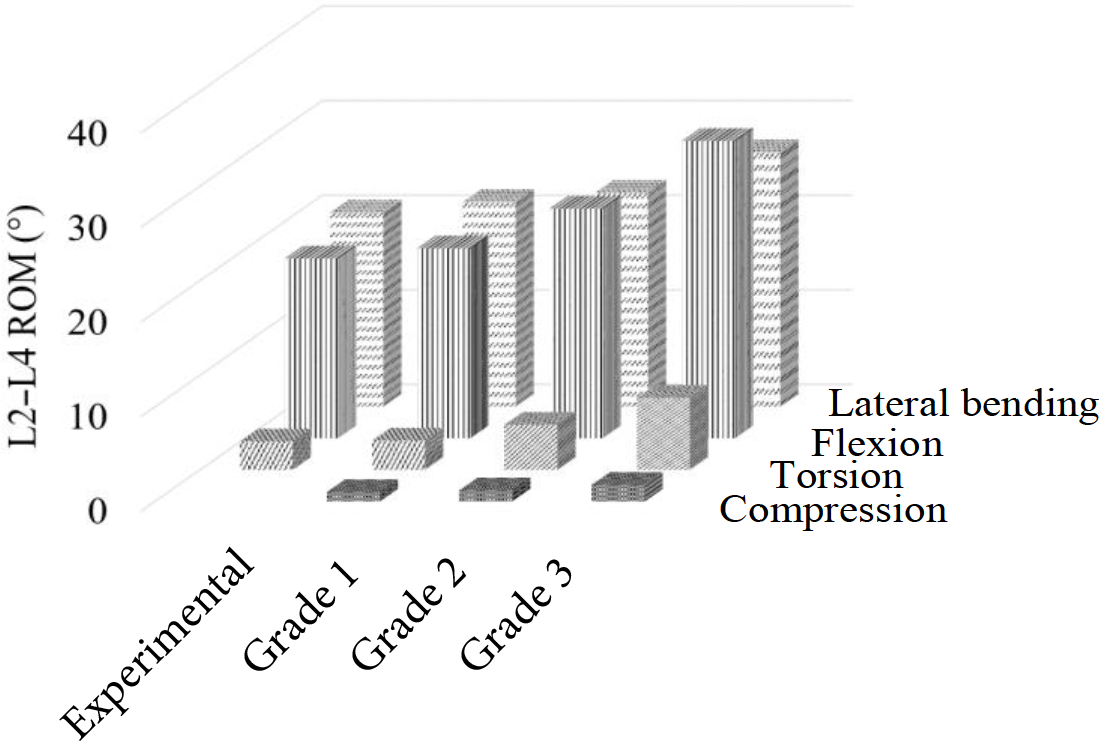

Finally, Fig. 4 shows the mobility differences between the healthy and osteoporotic L2–L4 lumbar spine.

While compressing the  healthy lumbar spine (Grade 1), L2–L4 ROM is small – 1°. With Grade 2 and 3 compressed lumbar, ROM increases slightly, respectively, to 1.1 and 1.8°.

Under torsion loading (Grade 1), L2–L4 ROM slightly increased to 3.1°, which corresponds to the  results in  vitro [45]. For osteoporotic lumbar (Grade 2 and 3), ROM increased to 4.8 and 7.6°.

In the case of lateral bending (Grade 1), ROM greatly increased to 21.6°. For osteoporotic lumbar spine (Grade 3), L2–L4 ROM increased to 26.9°.

In the case of flexion, the L2–L4 ROM increases significantly in all grades. The  Grade  3 ROM increased to 31.4°.

As seen from Fig. 4, the L2–L4 total segmental motion increases if a person bends down, so long-term walking with heavyweight behind the back is not recommended for people who have osteoporotic lesions as they may increase the risk of stability loss.

3.3. Transversal shift of spine axis and instability

Increase of osteoporotic degradation leads to the nonlinear varying compression of IVD. As a result, IVD is transformed into a trapezia shape and shearing forces occur. The shearing effect is characterized by the sheared displacement of the weakest element IVD. The values of shearing displacement of IVD are significantly large as compared with those of shearing of the vertebra. In summary, the  shearing deformations result in the  in-plane shift of vertebra.

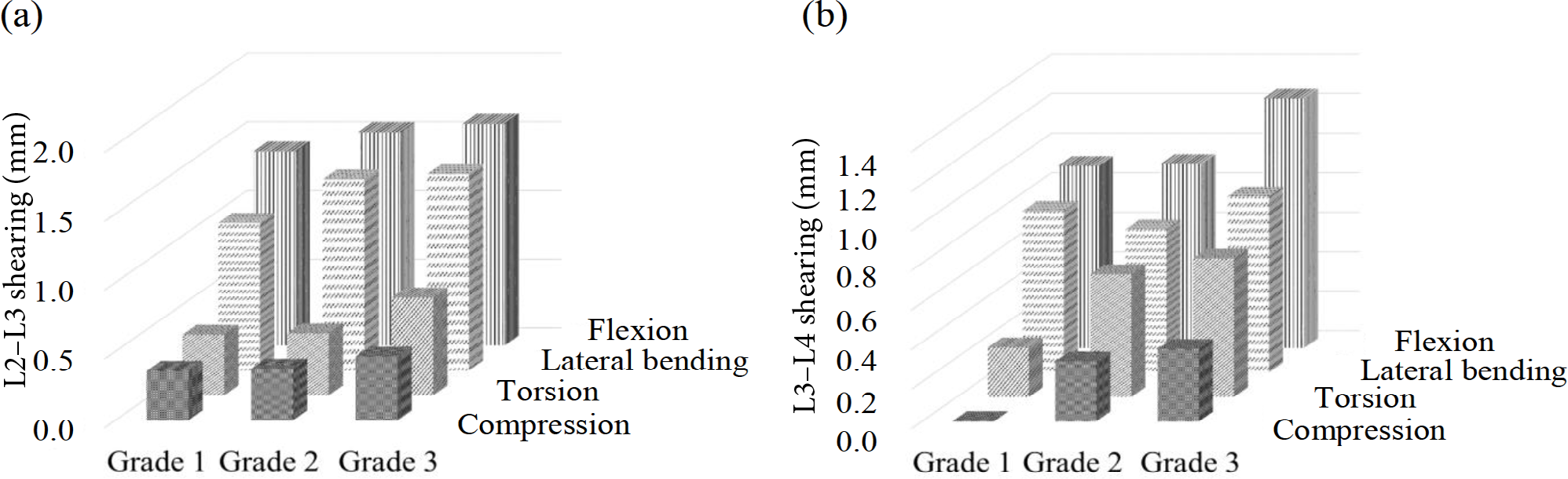

The body is more sensitive to out-of-plane deformations. The  shearing is characterized by shearing displacement. The values of shearing displacement are given in Fig.  5. The  figure shows an insignificant contribution of osteoporosis for the case of pure axial load. For the healthy lumbar spine (Grade  1), the  L2–L3 shearing is 0.36 mm (Fig.  5(a)) and the  L3–L4 shearing is 0.002  mm (Fig.  5(b)). Considering the  osteoporotic degenerated lumbar (Grades 2 and 3), the main point is switched to displacement-based (shearing) criteria. The L2–L3 shearing (Grade 2) increased to 0.37 mm and the  L3–L4 shearing increased to 0.30  mm. When the  shell thickness was reduced to 0.2  mm (Grade 3), the L2–L3 shearing increased to 0.46 mm and the L3–L4 shearing increased to 0.37 mm.

Regarding torsion, flexion and lateral bending loading, the behaviour of lumbar is different.

Acting torsional load does not significantly increase interver-tebral shearing. The  L2–L3 shearing (Grade 1) increased to 0.44 mm (Fig. 5(a)) and the L3–L4 shearing to 0.25 mm (Fig. 5(b)). The L2–L3 shearing (Grade  2) increased to 0.45  mm (Fig.  5(a)) and the  L3–L4 shearing to 0.62  mm (Fig. 5(b)). When the shell thickness was reduced to 0.2 mm (Grade 3), the L2–L3 and L3–L4 interver-tebral shearings increase, respectively, to 0.71 mm (Fig. 5(a)) and to 0.70 mm (Fig. 5(b)).

Acting eccentric load, such as flexion and lateral bending, greatly increases interver-tebral shearing.

Under lateral bending loading (Grade  1), the L2–L3 shearing increased to 1.07 mm (Fig. 5(a)) and the L3–L4 shearing to 0.82 mm (Fig. 5(b)). For the osteoporotic spine (Grade 2), L2–L3 shearing increased to 1.39  mm (Fig.  5(a)) and the  L3–L4 shearing to 0.73  mm (Fig.  5(b)). When the  shell thickness was reduced to 0.2 mm (Grade 3), the L2–L3 shearing increased to 1.43 mm (Fig. 5(a)) and the L3–L4 shearing to 0.89 mm (Fig. 5(b)).

In the case of flexion loading (Grade 1), the L2–L3 shearing increased to 1.41 mm (Fig. 5(a)) and the  L3–L4 shearing to 0.92  mm (Fig.  5(b)). For the  osteoporotic spine (Grade  2), interver-tebral shearing increased even more: the L2–L3 shearing to 1.55 mm (Fig. 5(a)) and the L3–L4 shearing to 0.93 mm (Fig. 5(b)). When the shell thickness was reduced to 0.2 mm (Grade 3), the L2–L3 shearing tremendously increased to 1.61  mm (Fig.  5(a)) and the  L3–L4 shearing increased to 1.26  mm (Fig. 5(b)).

The low trabecular bone mass density had a significant negative effect on interver-tebral shearing and reducing the thickness of the cortical bone further increased the  vertebrae shear. The  vertebrae shear increases as well as ROM if a person bends down, which is confirmed by the numerical results. As a result, flexion and lateral bending have the greatest influence on the displacement of the vertebrae.

The numerical lumbar spine stability analyses of the  considered lumbar spine 2 motion segments discovered that the  presence of osteoporotic degradation, and especially a decrease in the thickness of the cortical bone, may yield catastrophic consequences in the mechanical behaviour of lumbar spine, such as increased segmental ROM and interver-tebral shearing, which results in the loss of spine stability.

4. Conclusions

The performed FE study of lumbar spine L2–L4 subjected to four characteristic loadings discovered how osteoporotic degradation contributes to the  deformation of IVD. Instability risk was evaluated by estimating ROM and shearing displacement. Osteoporotic degradation in the case of flexion and lateral bending loading increases ROM from 9 up to 15°, by reaching the  critical segmental instability value. These results show an additional potential risk which may occur because of osteoporotic degradation. The  results of this study provide important information for understanding the mechanism of loss of spinal stability in the result of degenerative changes in the bone material. Although the  lumbar spine model of 2 motion segments cannot be considered as fully validated, the results obtained indicate the developmental potential of the spine affected by degenerative changes in predicting the development of clinical spinal instability. In order to obtain more accurate results, future researches should assess the  influence of degenerative changes in discs, ligaments and muscles on the  process of loss of spinal stability.
