A PHYSICAL MECHANISM OF SENSITIVITY ENHANCEMENT OF ORGANIC X-RAY DETECTORS WITH TUNGSTEN NANOPARTICLES

Received 19 November 2019; revised 22 January 2020; accepted 23 January 2020

1. Introduction

Organic thin film X-ray sensors are an emerging topic of organic electronics [1–7]. As demonstrated by recent applications of high sensitivity and signal-to-noise ratio organic devices, they can be used for efficient direct and indirect charge conversion of X-rays to electric current [8–11]. In addition, organic light emitting diodes (OLED) with organic field effect transistor arrays (OFET) are successfully applied for mobile devices, television and in flexible bio-compatible electronics [12–16], thus the organic X-ray imaging devices may also be immediately incorporated in the existing industry.

The production of organic functional films has important advantages over widespread silicon semiconducting technologies. Organic layers are mostly produced using solution processing techniques such as drop-casting, spin-coating and doctor blade [17–19]. These are applicable for fast production of large-area devices using roll-to-roll technologies under room conditions, making the manufacturing process vastly cheaper with a significant reduction of power consumption [20–23].

However, solution processing techniques have some disadvantages. The final layers are contaminated with trace amounts of solvents, degrading their electrical properties [24, 25]. Moreover, for the multilayer production different solvents need to be carefully selected, thus the production design becomes difficult and so the high-quality materials may never be applied. We proposed a new approach, the melt spin-coating (MSC) technique [26], where during a layer production the liquid phase is achieved by applying higher temperature (~100°C) to the material until it melts. Then the melt is spun to form the layer with a smooth surface. In such a way solvents are not used, and this may overcome the problems of using solvents [27, 28].

The X-ray absorption is characterized by the attenuation coefficient Χ of a material Z: X ~ Z⁴/E³, where E is the X-ray photon energy and Z is the atomic number. Thus, the coefficient X strongly depends on the elemental composition of materials [29]. Organic compounds consist of low-Z chemical elements (mostly carbon and hydrogen) and possess low X-ray absorption. To increase the absorption of X-rays, we incorporated heavy metallic particles into the organic bulk and produced hybrid organic-inorganic films. Recently, such approach was demonstrated to be successful by different researchers [30–33], but the complete physical mechanism of charge excitation and transfer in such films is still not known and has been little discussed. Moreover, the effect of distribution of X-ray absorbent particles in the organic bulk has not been widely considered, although it may also contribute to the optimization of such devices.

Recently, we investigated the films composed of three types of carbazolyl-containing molecules mixed with tungsten particles [34–37]. The X-ray induced signal and the electrical properties of the films varied depending on a type of the molecules. The differences of X-ray sensitivities of these hybrid films raised the questions concerning the physical mechanism of sensitivity and signal magnitude. Interestingly, the shape of distribution of tungsten particles was different in different organic materials. In the layers produced of molecules branched with carbazole, the clustering of tungsten particles occurs (for example, see Fig. 2 in [26]). These effects underline the need for a deeper theoretical evaluation of X-ray absorption, charge transfer and the effect of tungsten particles on the X-ray-induced signal measured in these films.

In Refs. [8, 30, 33], the sensitivity is defined as the average charge collected from the unit volume divided by the average absorbed dose (i.e. by the average energy absorbed per unit mass). As a result, differences of the sensitivity values obtained for different materials or for different thicknesses cannot be explained in terms of different rates of photogeneration of charge carriers alone: an increase of the photogeneration rate due to a greater attenuation quantum efficiency (QE) is proportional to the corresponding increase of the absorbed dose rate, so the sensitivity would be independent of QE if the collected charge was equal to the photogenerated charge and if the photogenerated charge per unit absorbed energy was the same. Thus, there are two possible factors that can cause a change of sensitivity:

1) differences in the processes of charge carrier loss (for example, due to recombination) or additional generation sustained by sources of energy other than the incident X-ray radiation (for example, secondary electron emission due to acceleration of electrons by electric field),

2) differences in the W value of the material.

The W value is defined as the average energy required to create an ion pair. It is known [38] that the W values of organic materials composed of simple molecules are equal to (20–30) eV. Consequently, one should not observe a change of sensitivity greater than approximately 30% if the difference of W values of the organic matrix was the main factor causing the differences of sensitivities (presence of high-Z nanoparticles cannot have a significant effect on the overall W value of the layer, and this has been confirmed by Monte Carlo simulations). The actual relative differences of sensitivity measured in different layers of equal thickness and at equal applied voltage are frequently of the order of 100% [26]. Thus, those differences must be mainly caused by the first of the two mentioned factors, i.e. the charge carrier loss or additional generation. In particular, an increase of sensitivity may be a result of a more efficient charge collection (i.e. decrease of the recombination rate). However, if one compares the sensitivities of two thin layers differing by the mass fraction of high-Z nanoparticles, but having the same organic matrix, equal thickness, and at the same applied voltage, then it is hardly possible that the recombination rate will differ by a large factor that is frequently observed. An alternative mechanism of the sensitivity change caused by addition of the high-Z nanoparticles to the organic material is proposed in the present work. This change consists of two terms, one of which is positive, while another is negative:

1) an increase of sensitivity due to the field-stimulated secondary emission of charge carriers from the high-Z nanoparticles,

2) a decrease of sensitivity due to the ionization energy losses of secondary electrons inside the bulk of metallic high-Z nanoparticles.

A partial theoretical treatment of those two effects will be presented in Section 3. Before that, the experimental results are presented.

2. Experiment

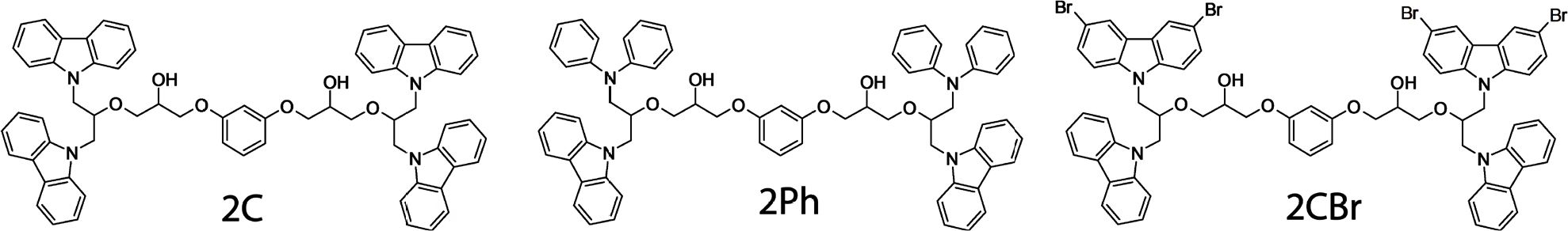

Carbazolyl-containing molecular glasses 1,3-bis[6- (carbazol-9-yl)-5-(carbazol-9-methyl)-2-hydroxy-4-oxahexyloxy]benzene (2C), 1,3-bis[6-(carbazol- 9-yl)-5-(diphenylamino-N-methyl)-2-hydroxy-4-oxahexyloxy]benzene (2Ph) and 1,3-bis[5-(3,6-dibromocarbazol-9-methyl)-6-(carbazol-9-yl)-2-hydroxy-4-oxahexyloxy]benzene (2CBr) were mixed with monocrystalline tungsten particles (Wp) and deposited by the melt spin-coating (MSC) technique. In all cases, the weight fraction of tungsten was 0.04. The average diameter of the tungsten particles was 0.8 μm. The structural formulas of the organic matrix materials are shown in Fig. 1. The sample production diagram is shown in Fig. 2.

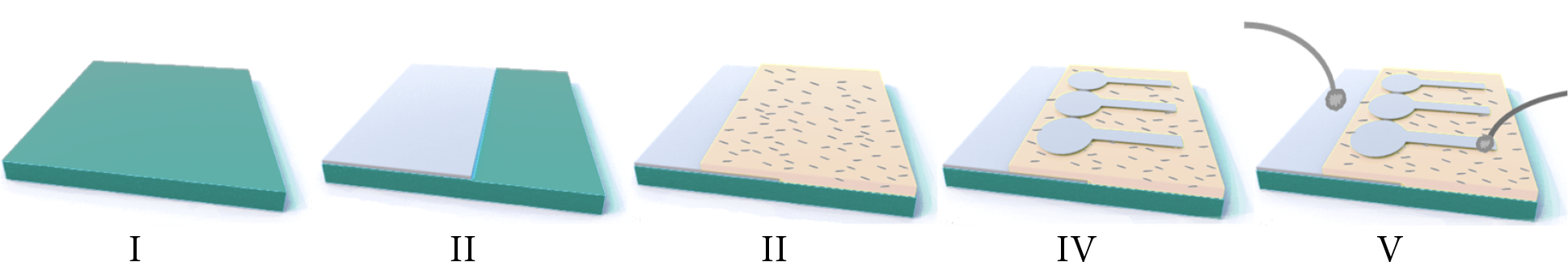

First, the glass substrates of a size of 10 × 10 mm were pre-cleaned (I). Second, the aluminum electrode was vacuum evaporated with a thickness of 400 nm (II). Then the MSC method was applied for the deposition of hybrid organic-inorganic layers (III). The powder of carbazolyl-containing molecules mixed with Wp was placed on the substrate, then the mixture was melted down and spun at a desired frequency to form a uniform layer with a thickness of 25 μm. After the layer deposition, the sample was repeatedly put in a vacuum chamber to form top electrodes with a diameter of 3 and 1 mm wide path. The path width of 1 mm ensures a secure distance of the connections of filament wires between the top and bottom electrodes (V). The sample was encapsulated with paraffin wax and placed 10 cm from the X-ray source to avoid the possible influence of ionization effects on the signal.

The I–V characteristics were measured using a transimpedance amplifier with 1 GΩ feedback resistor. The dependence of photocurrent (I = IX-ray − I_dark) on voltage, shown in Fig. 3, was calculated from I–V characteristics, where I_dark is the current measured in dark and IX-ray is the current measured under exposure of X-rays. The measurements were performed using X-rays from a molybdenum target X-ray tube under 35 kV with 1 mA anode current. Approximately 40% of all incident X-ray photons correspond to the 17.5 keV K_α line of characteristic Mo radiation. The flux of K_α photons reaching the top electrode of a sample is approximately equal to Φ = 2.4 · 10⁹ cm⁻² s⁻¹. The remaining 60% of the total incident X-ray flux consists of characteristic K_β and K_γ radiation, as well as of bremsstrahlung photons with a continuous energy spectrum starting at approximately 5 keV (photons with energies less than 5 keV are practically completely absorbed in the glass of the X-ray tube) and ending at 35 keV.

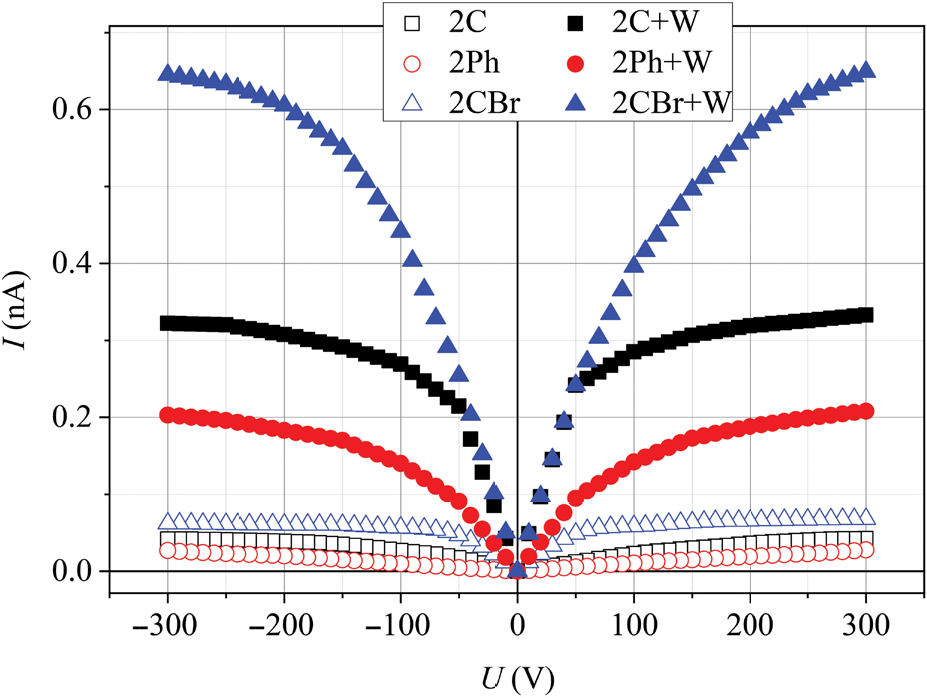

Figure 3 presents the voltage dependence of the X-ray-induced photocurrent in the six layers with a thickness of 25 μm. Table 1 presents the maximum photocurrent densities (jexp. max) measured for those layers, the corresponding values of the sensitivity (S) and the theoretical current densities (j_th and jth. hom.) calculated as described in Section 3. j_th has been calculated by taking into account the ionization energy losses inside Wp, whereas jth. hom. has been calculated for the case when those losses are negligible (i.e. a homogeneous mix of atoms, or extremely small nanoparticles). Both j_th and j_th. hom. have been calculated ignoring the effects of recombination and acceleration in the external electric field (because of the complexity of the simulations, and because the relevant material parameters are unknown). The uncertainty of the theoretical values of photocurrent presented in Table 1 is approximately 30% (mainly caused by uncertainty of the density of the matrix material, which was approximately equal to 2.5 g/cm³).

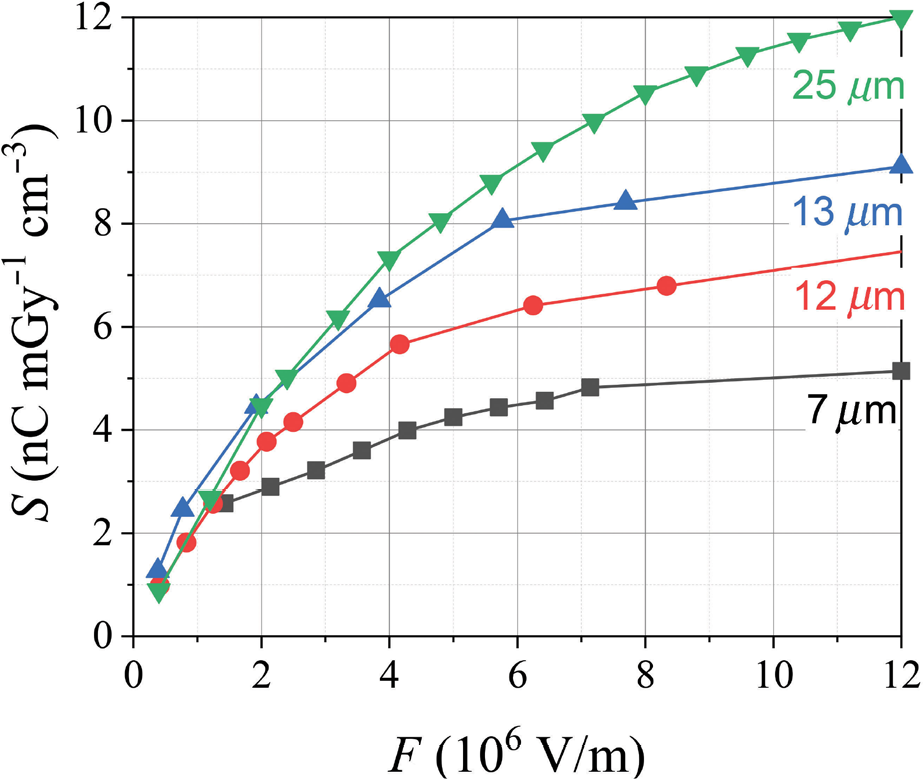

Figure 4 presents the dependence of sensitivity on the electric field strength for the layers composed of 2CBr blended with Wp in the case of four values of the layer thickness.

3. Discussion

Since the theoretical photocurrent has been calculated neglecting charge carrier recombination, trapping and electric field effects, the theoretical values presented in Table 1 are significantly different from the experimental values. The fact that the experimental photocurrent is in most cases significantly less than the theoretical one, as well as the fact that the experimental photocurrent depends on the electric field strength in the entire range of voltages investigated in the present work (see Fig. 3) indicates that the charge carrier loss due to recombination has a strong influence on the measured current density. The mentioned recombination reduces the fraction of generated carriers that reach the electrodes, and this fraction increases with electric field strength. Accordingly, the photocurrent increases with increasing voltage. An especially large difference between the theoretical and experimental photocurrents is observed in the case of the layers containing Br (see Table 1). This means that the charge carrier loss due to recombination is more important in 2CBr than in 2C and 2Ph. Another obvious difference between the experimental and theoretical results is a much larger relative increase of the measured photocurrent after adding tungsten particles into the layer in comparison with the relative increase predicted by simplified theoretical calculations (see Table 1). This discrepancy can be explained by the field-assisted impact ionization of tungsten atoms (as mentioned, electric field effects, including field-assisted ionization, have not been taken into account when calculating the theoretical photocurrent). A detailed discussion of the latter effect is presented in Subsection 3.1. The method of calculation of j_th, which takes into account the ionization energy losses inside the metallic nanoparticles (but does not take into account recombination and field effects), will be described in Subsection 3.2.

Near the thermal equilibrium (when charge carrier energies are of the order of kT), the electric current in organic materials is mainly caused by motion of holes. However, this fact is not important at much higher energies when the charge carriers are mainly generated by electron impact. Since the following discussion will deal mainly with kinetic energies of the order of 1 eV or greater, the charge carriers will be assumed to be electrons. Moreover, since the role of chemical binding effects (including the band structure of charge carrier energy levels in the material) decreases with increasing energy, and bearing in mind that the theoretical model described below is intended to be only a crude approximation of the physical reality, all quantitative estimates will be done by treating the materials as collections of isolated neutral atoms.

3.1. The effect of the field-assisted secondary emission from high-Z nanoparticles

It is known that the recombination cross-section decreases with increasing electron energy. Consequently, the dominant interaction mechanisms of the electrons with energy (E) of the order of 1 eV are elastic scattering (defined by zero change of the electron energy during each collision) and impact ionization. The elastic scattering is by far the most probable interaction at 1 eV < E < 100 eV [39], and it determines the free path. Tungsten has a lower ionization threshold (7.8 eV) than the other elements present in the investigated layers. Among the latter elements, carbon has the lowest ionization threshold (11.3 eV). Assuming that recombination and energy loss to other types of inelastic scattering are negligible, the electrons with energies less than the ionization threshold E΄ can be accelerated by the electric field to energies higher than E΄ and cause impact ionization. If two electrons existing after such an event are not lost to recombination and if their energy is not lost to other types of inelastic scattering, they will also be accelerated, so that an electron avalanche develops. The mean distance (l_i) travelled by an electron with zero initial energy before an impact ionization of a tungsten atom can be easily calculated assuming that:

1) tungsten atoms are uniformly mixed with the matrix material,

2) l_i is much greater than the free path λ (the average distance between two elastic collisions),

3) elastic scattering is isotropic (this is approximately true when E is of the order of a few eV),

4) there are no other energy loss mechanisms.

As it follows from assumption 2, an electron experiences a very large number of elastic collisions before causing an impact ionization of a tungsten atom. As it follows from assumption 3, the change of the electron direction after each elastic collision is typically large (there is a 50% chance that the scattering angle will be greater than 90°). Consequently, the electron path is very erratic, and it stays inside a relatively small volume with linear dimensions that are much less than the total path (l) travelled by the electron. In the presence of an external electric field, the mentioned random motion is superimposed on the gradual drift of the electron in the direction of the external force. If the electron path is large enough, the displacement caused by the drift (x) may become much greater than the lateral displacement due to the random motion. In such a case, the overall shape of the electron path becomes similar to a straight line parallel to the external force. However, microscopically, it includes a large number of random changes of the direction. This means that the total path travelled by the electron is much greater than the displacement due to the drift (l ≫ x).

Under those assumptions, the average path dl travelled by the electron during the infinitesimal period of time dt can be related to the average displacement dx along the direction of electric field by the equality

where v is the total speed of the electron, and v_dr is the drift speed:

Here μ is the mobility and F is the electric field strength (if F is expressed in V/m, then its numerical value may be interpreted as the force exerted by the field on the electron in units of eV/m). As mentioned, dl ≫ dx because v ≫ v_dr. In Eq. (1), it is assumed that the displacement caused by drift (denoted by dx) occurs over a very large number of elastic collisions, so that the random fluctuations average out and the net displacement has the same direction as the external force, although a single elastic collision may cause a temporary displacement in a different direction (for example, this happens when the electron is scattered in the direction opposite to the external force). Also, the displacement caused by drift is equal to

where dE is the increase of the electron energy after its displacement by dx along the direction of the field, and e is the elementary charge. The values of v and μ are related to E as follows:

Here m is the electron mass, and

where λ is the free path

and Σ_elast is the macroscopic cross-section of elastic scattering, which depends on E. Using the tabulated electron scattering cross-sections for neutral atoms [39], it has been determined that the mentioned dependence is approximately a power function when E is of the order of a few electronvolts:

In the case of a homogeneous blend 2CBr+W with a density of 2.5 g/cm³ and a tungsten weight fraction of 0.04, the exponent α is equal to 0.76, and Σ₁ = 7.19 ⋅ 10⁸ (assuming that E is expressed in electronvolts and Σelast is expressed in m⁻¹). By combining all equations presented above, the following relationship between l and E is obtained,

or, equivalently,

where

and

(it is assumed that F is measured in V/m). If F = 1.2 ⋅ 10⁷ V/m (which corresponds to voltage of 300 V applied to a layer with 25 μm thickness) and the other conditions are as indicated above, then f ≈ 1.0 ⋅ 10⁵. The average path until impact ionization (l_i) can be calculated as follows:

Here dP/dl is the probability density of the path l at the moment of impact ionization. Because of the functional relationship (9) between l and E, it is more convenient to use the average energy of the incident electron at the moment of impact ionization (E_i) instead of l_i,

where dP/dE is the probability density of the electron energy E at the moment of impact ionization:

Here Σ_ion(E) is the macroscopic cross-section of impact ionization. The preexponential factor in Eq. (14) is equal to the probability density of impact ionization as a function of electron energy E, whereas the exponential factor is equal to the probability that the electron is accelerated from 0 to energy E or greater before the impact ionization event (in other words, that its path is l(E) or greater, where the function l(E) is defined by Eq. (9)). The approximate value of l_i can be obtained by substituting E_i into Eq. (9).

The value of l_i corresponding to the ionization of tungsten atoms at the conditions indicated above is 155 μm. The value of l_i corresponding to the ionization of carbon (C) atoms under the same conditions is 170 μm. The root mean square value of linear displacement of the electron during the same period due to random motion caused by multiple elastic scattering is equal to

where D = vλ / 3 is the approximate diffusion coefficient (this expression of D is valid in the case of isotropic elastic scattering), and t = l_i / v is the approximate time of acceleration. ∆x is equal to the size of the region that would contain most of the electron trajectory if there was no drift during the process of acceleration. Using the values of l_i mentioned above and assuming that λ corresponds to kinetic energy of a few electronvolts, the value of ∆x calculated according to Eq. (15) is of the order of 0.1 μm. The displacement of the electron due to drift under the same conditions is of the order of 1 μm. Since these values of the displacement are much less than the layer thickness, impact ionization can be an important contribution to the total electric current. The mentioned values of l_i indicate that the impact ionization of tungsten is more probable than the impact ionization of the organic matrix.

Another factor to consider when discussing the possibility of an electron avalanche in an organic-inorganic blend is the energy of two electrons existing after an impact ionization event. This is because the cross-sections of inelastic scattering and recombination in the organic matrix are much greater at E < 1 eV than at energies of the order of 1 eV or greater. In particular, it is a well-known fact that the recombination cross-section increases when the electron speed is decreased. Consequently, if the charge carrier energy is less than approximately 1 eV, then acceleration to E΄ may become impossible. The calculations show that the electron energy E_i after travelling the path l_i at the conditions indicated above exceeds E΄ by 3.1 eV in the case of ionization of tungsten, and by 0.45 eV in the case of ionization of C (difference of the latter two values is caused by much higher concentration of C in comparison with that of tungsten). The mentioned value of E_i − E΄ is equal to the average total energy of the two electrons existing after an impact ionization event. Thus, impact ionization of the organic matrix cannot cause an electron avalanche (intense inelastic scattering prevents further acceleration of two low-energy electrons existing after an impact ionization of the organic matrix). For the same reason, the electron avalanche does not occur without exposure to X-ray radiation: intense inelastic scattering (including the process of recombination) keeps the energy of charge carriers at values of the order of kT even in the case of a relatively strong electric field. In contrast, the energies of two electrons existing after an impact ionization of tungsten belong to the high-energy range (E ~ 1 eV), where the acceleration to E΄ is possible, so that an electron avalanche develops.

As it is clear from the discussion presented above, the effect of the impact ionization of tungsten atoms under the mentioned assumptions is qualitatively different from the effect of the impact ionization of the organic matrix. The former can potentially lead to an electron avalanche and a consequent exponential growth of the photocurrent with increasing electric field strength, whereas the latter can only cause an increase of the current by a factor of two at most (due to creation of two low-energy electrons, which cannot cause further impact ionization). The overall dependence of the photocurrent on the electric field strength is a result of a ‘competition’ between these two processes. The mentioned dependence is approximately equal to the product of the photocurrent observed in absence of the field-stimulated electron multiplication, and of the multiplication factor (K) reflecting the latter effect. The approximate calculation of K is presented below.

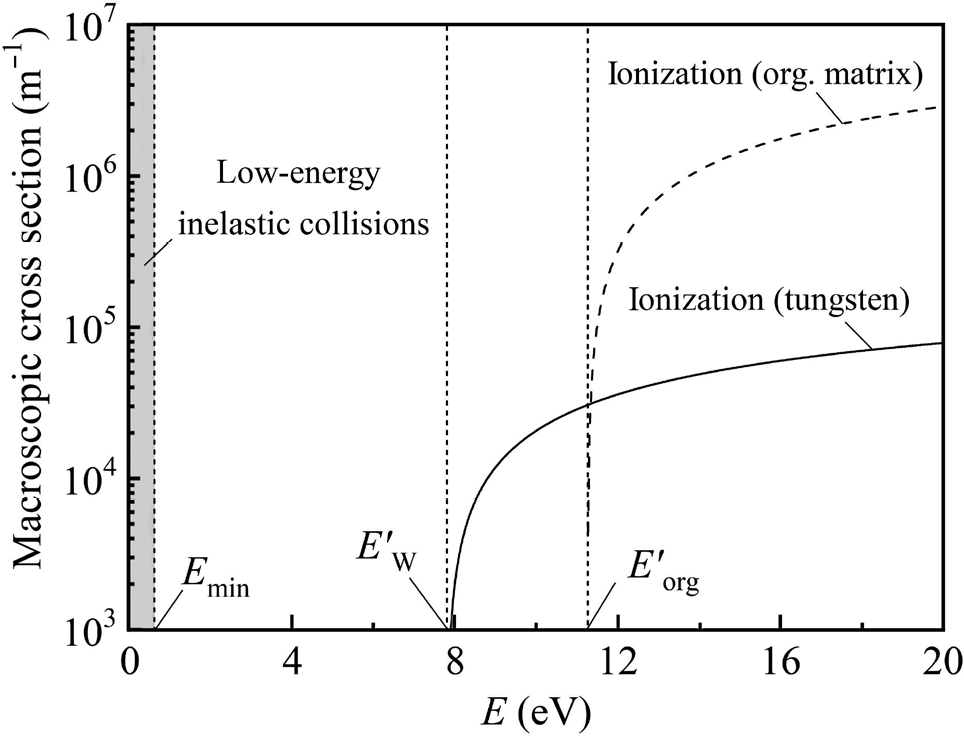

In accordance with the previous discussion, it will be assumed that the energy dependence of the macroscopic cross-section of electron inelastic scattering consists of three regions (see Fig. 5): (I) the low-energy region (E < E_min), where inelastic interactions are extremely frequent and prevent a significant acceleration in an electric field, (II) the range E_min < E < E΄, where the inelastic collisions are relatively infrequent and do not interfere with acceleration in an electric field, (III) the range E > E΄, where impact ionization is significant. The ionization threshold E΄ is defined separately for the tungsten atoms (E΄_W) and the organic matrix (E΄org). In Fig. 5, it is assumed that E_min = 0.6 eV, E΄_W = 7.8 eV and E΄org = 11.26 eV (the latter value is the ionization threshold of atomic carbon). The value of E΄ mentioned above is the smallest of the latter two ionization thresholds, i.e. E΄ = E΄_W. If E belongs to range II, then the electron may be accelerated by electric field to energy E > E΄ and may cause impact ionization of a tungsten atom or of a molecule of the organic matrix. Energies of the two electrons existing after such an event may be assumed to be uniformly distributed between 0 and E − E΄_W or between 0 and E − E΄org, respectively [39]. Consequently, there is a nonzero probability that the energy of one or both of those electrons is less than E_min. Those electrons will be lost from the avalanche. Thus, two types of electrons are created during the electron multiplication process: high-energy electrons with energy greater than E_min, which can cause impact ionization (their number will be denoted by N_h), and low-energy electrons with energy less than E_min, which drift in the external field without causing impact ionization (their number will be denoted by N_low). The average change of N_h due to a single impact ionization event will be denoted by γ (its possible values are from −1 to 1). If the average displacement of the electron along the X axis (parallel to the electric field) until an impact ionization is equal to x_i, then the value of N_h depends on x according to the equation

i.e.

(since the aim is calculation of the multiplication factor, the initial condition is N_h(0) = 1). The average change of N_low due to a single impact ionization is equal to 1 − γ, because the total change of the number of electrons is equal to 1. Consequently, the value of N_low depends on x according to the equation

i.e.

The total number of electrons is equal to

In the case of uniform photogeneration, the initial electron can be created at any depth with equal probability. This means that the total displacement x is uniformly distributed from 0 to the layer thickness d. In such a case, the electron multiplication factor is equal to

The value of x_i is proportional to the average change of the electron energy between two impact ionization events:

Here E_i is the average energy of the incident electron at the moment of impact ionization, E_sec is the average energy of either of the two secondary electrons existing after an impact ionization event, and F is the electric field strength (energies are assumed to be expressed in eV, and F is assumed to be expressed in V/m, so that the value of x_i is obtained in units of m). Thus, three quantities have to be known in order to be able to calculate the multiplication factor: γ, E_i and E_sec. For calculating the dependence of K on F, the value of γ is the most important, because its dependence on F is strongest. Thus, the dependence of K on F is governed by the approximate relationship x_i ~ F⁻¹ (see Eq. (22)), and by the dependence γ(F). The calculation of γ, E_i and E_sec is straightforward if the energy dependences of the macroscopic cross-sections of impact ionization of tungsten and the organic matrix (Σ_W and Σ_org, respectively) are known. Those dependences are shown in Fig. 5 by solid and dashed lines, respectively, for the case of a homogeneous blend 2CBr+W with a density of 2.5 g/cm³ and a tungsten weight fraction of 0.04.

The main quantity that has to be known for those calculations is the electron energy probability density (dP/dE), which defines the probability for the electron energy at the moment of impact ionization to be inside any predefined interval. The expression of dP/dE, which follows from the assumption that the macroscopic cross-section of elastic scattering is equal to Σ₁ E^β−1 and is much greater than the total macroscopic cross-section of all other types of interaction, is given by Eq. (14). In that expression, Σ_ion(E) is a sum of two terms corresponding to impact ionization of tungsten and of the organic matrix:

The expression of γ is the following:

Here N΄(E) is the average number of electrons with energy greater than E_min after a single impact ionization event caused by an electron with energy E. N΄(E) is a weighted average of the two numbers corresponding to ionization of tungsten and of organic matrix (N_W and N_org):

N_W(E) and N_org(E) are the average numbers of electrons with energy above E_min after the ionization of tungsten and of the organic matrix, respectively. Those two numbers can be easily obtained from the mentioned assumption that the energy distributions of the secondary electrons are uniform:

The fact that N΄ is a weighted average of N_W and N_org (see Eq. (25)) is crucial for the dependence γ(F), because an increase of electric field causes an increase of E_i, i.e. of the typical values of the electron energy E, which contribute most to the integral in Eq. (24) (mathematically, this is caused by the decrease of the factor 1/f in the exponent of Eq. (14)). When E_i becomes close to E΄_org or greater, the typical values of Σ_org become much greater than Σ_W (see Fig. 5). This means that the typical values of N΄ become close to N_org (see Eq. (25)). Those values are much less than N_W due to the fact that E − E΄_org is much less than E − E΄_W (see Eq. (26)), i.e. after ionization of the organic matrix, one or both electrons are much more likely to have energy less than E_min. Physically, this is a result of the fact that an electron with energy just above E΄_org does not have enough time for a significant acceleration and undergoes an inelastic collision with a molecule of the organic matrix almost immediately because of a large value of Σ_org. This causes a decrease of γ at sufficiently strong fields. If this decrease counteracts the decrease of x_i with increasing F, the multiplication factor K starts to decrease. This could explain why the dependence of photocurrent on voltage is not exponential (see Fig. 3): the electron multiplication is ‘quenched’ due to increased frequency of electron inelastic interactions with the organic matrix and the consequent rapid ‘conversion’ of high-energy electrons to low-energy electrons.

It should be noted that the ‘quenching’ process is not required to be impact ionization. It could also be excitation, with the condition that its macroscopic cross-section above the excitation energy (E_exc) is sufficiently large, so that the loss of the energy amount E_exc during the excitation is likely to make the electron energy less than E_min. In this case, N_org(E) is equal to 1 when E > E_exc + E_min, and to 0 when E < E_exc + E_min.

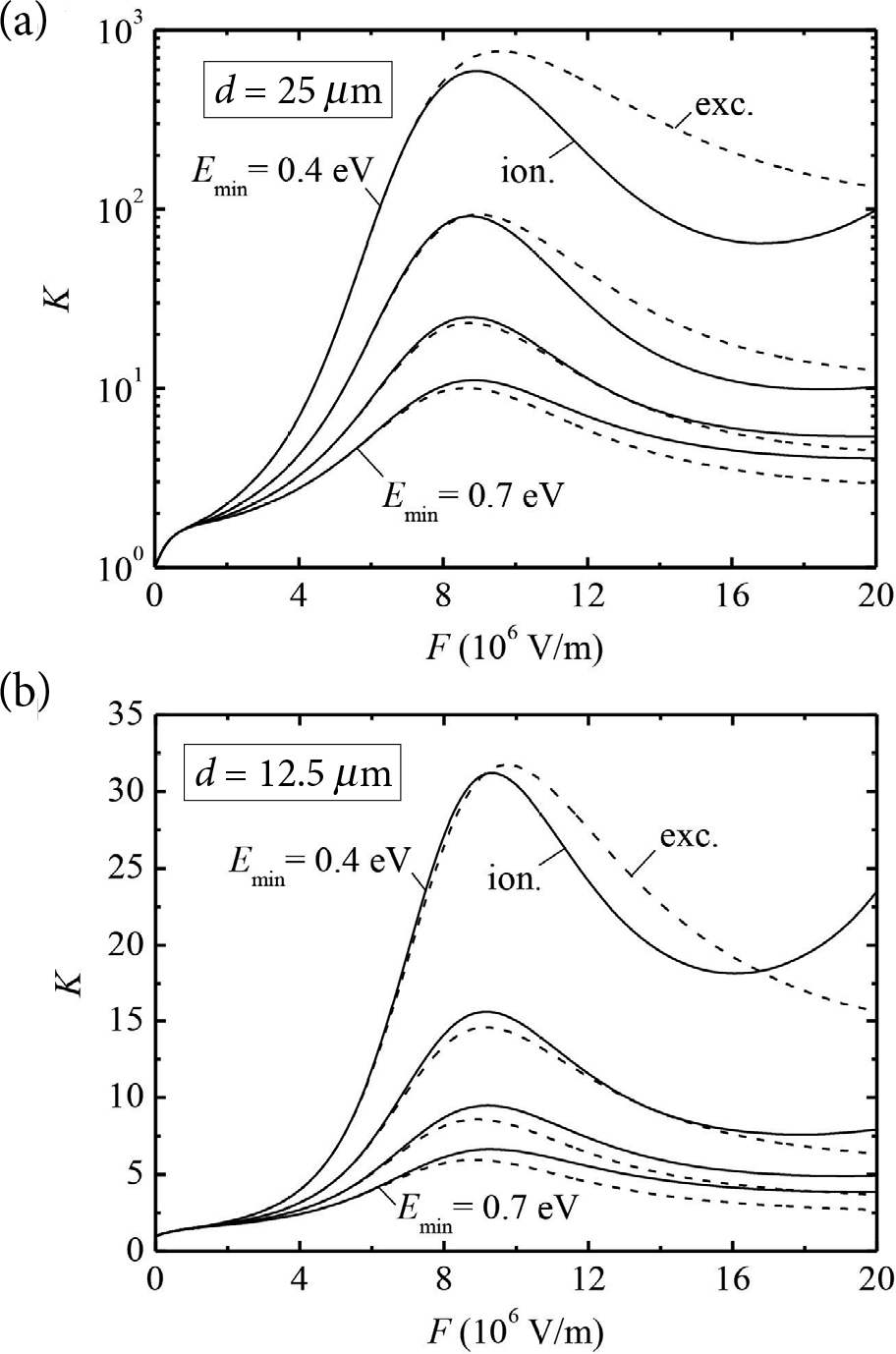

Figure 6 presents the dependence of the multiplication factor K on electric field strength at the conditions corresponding to Fig. 5, and at four equidistant values of E_min from 0.4 to 0.7 eV. In those calculations, the impact ionization cross-sections have been approximated by the expression

where B = 83500 m⁻¹, E΄ = 7.8 eV in the case of tungsten, and B = 5 ⋅ 10⁶ m⁻¹, E΄ = 11.26 eV in the case of organic matrix, i.e. carbon. Both values of E΄ were obtained from [40]. The two mentioned values of B were obtained by fitting the data of [39] and [40], respectively. Using the approximation (27), the integral in Eq. (14) can be expressed analytically. Consequently, calculation of the weighted integrals of dP/dE, which have to be calculated in order to estimate γ, E_i and E_sec (see Eqs. (13) and (24)), requires only a single numerical quadrature.

Clearly, the assumption of complete absence of inelastic collisions (including the process of recombination) in the energy range E_min < E < E΄ is not realistic. In a real material, the cross-sections of inelastic scattering and recombination are smooth functions of electron energy (E), which are never exactly equal to zero. For example, the electron energy loss due to bremsstrahlung is possible at any energy (although its cross-section decreases with decreasing E). The mentioned energy range should be interpreted as the range, where the average electron energy loss due to inelastic collisions is much less than the average energy gain due to acceleration in the electric field. The exact shape of the dependence K(F) is determined by the dependence of the mentioned cross-sections on E, and it is likely that the dependence of the exact K on F deviates significantly from the theoretical curves shown in Fig. 6. The purpose of these curves is only to demonstrate that the dependence of the electron multiplication factor on electric field strength may be much slower than the exponential increase, which is commonly associated with an electron avalanche, and to explain why we do not see an exponential growth of the photocurrent with voltage in Fig. 3.

Since the discussion and calculations presented above are based on the assumption that tungsten atoms are distributed uniformly, the results are not entirely applicable in the case of tungsten particles with a diameter of the order of 100 nm or greater. However, some qualitative predictions (such as the mentioned quenching effect) should be also valid in the latter case. The agreement between the experimental data and the calculation results presented above should improve with decreasing the size of tungsten particles.

3.2. The effect of ionization energy losses inside metallic nanoparticles

The difference of the values in the third and fourth columns of Table 1 demonstrates the importance of the electron energy loss inside the tungsten particles. Although the photoelectrons created by absorption of the photons emitted by a Mo X-ray tube with 35 kV anode voltage have the average energy of (6–7) keV, the secondary electrons (‘knock-on electrons’), which are emitted from the atoms of the material during the gradual slowing down of each photoelectron, have typically a much lower energy of the order of 10 eV. Those electrons are usually stopped inside the bulk of Wp and do not contribute to the photocurrent (because there is no electric field inside metallic nanoparticles). Thus, most of the electrons contributing to the photocurrent are created by impact ionization of the organic matrix. The number of those electrons is proportional to the average energy absorbed in the organic matrix (rather than in Wp). Since the generation of photoelectrons is approximately uniform over the entire bulk of a tungsten particle, the energy lost in tungsten particles increases with their diameter (presumably, clustering of Wp has a similar effect). In the case of 2CBr+W, the mentioned energy loss is relatively unimportant because the photoelectrons are mainly generated in the Br atoms. Consequently, the difference of j_th. hom. and j_th in the case of 2CBr+W is relatively small (see Table 1). In the case of 2C+W and 2Ph+W, the photoelectrons are mainly generated inside Wp, and these electrons lose approximately 75% of their energy in a tungsten particle before escaping into the matrix. As a result, the number of secondary electrons generated by impact ionization in the matrix is reduced by a factor of 4 in comparison with the homogeneous material, and the theoretical photocurrent is reduced by the same factor (see Table 1).

The theoretical values of the photocurrent, which are presented in columns 3 and 4 of Table 1, have been calculated by Monte Carlo simulation of coupled electron–photon transport (the electron and photon interaction cross-sections that have been used for the Monte Carlo simulations have been taken from [39] and [41], respectively, and the atomic relaxation data have been taken from [42]). A more detailed description of the calculation procedure is presented below.

The four main factors determining the rate of electron generation in the layer due to photoelectric absorption are the following:

(a) spectrum of the incident X-ray radiation,

(b) mass absorption coefficient of the layer,

(c) mass thickness of the layer,

(d) average energy required to produce an ion pair (it will be further denoted by W).

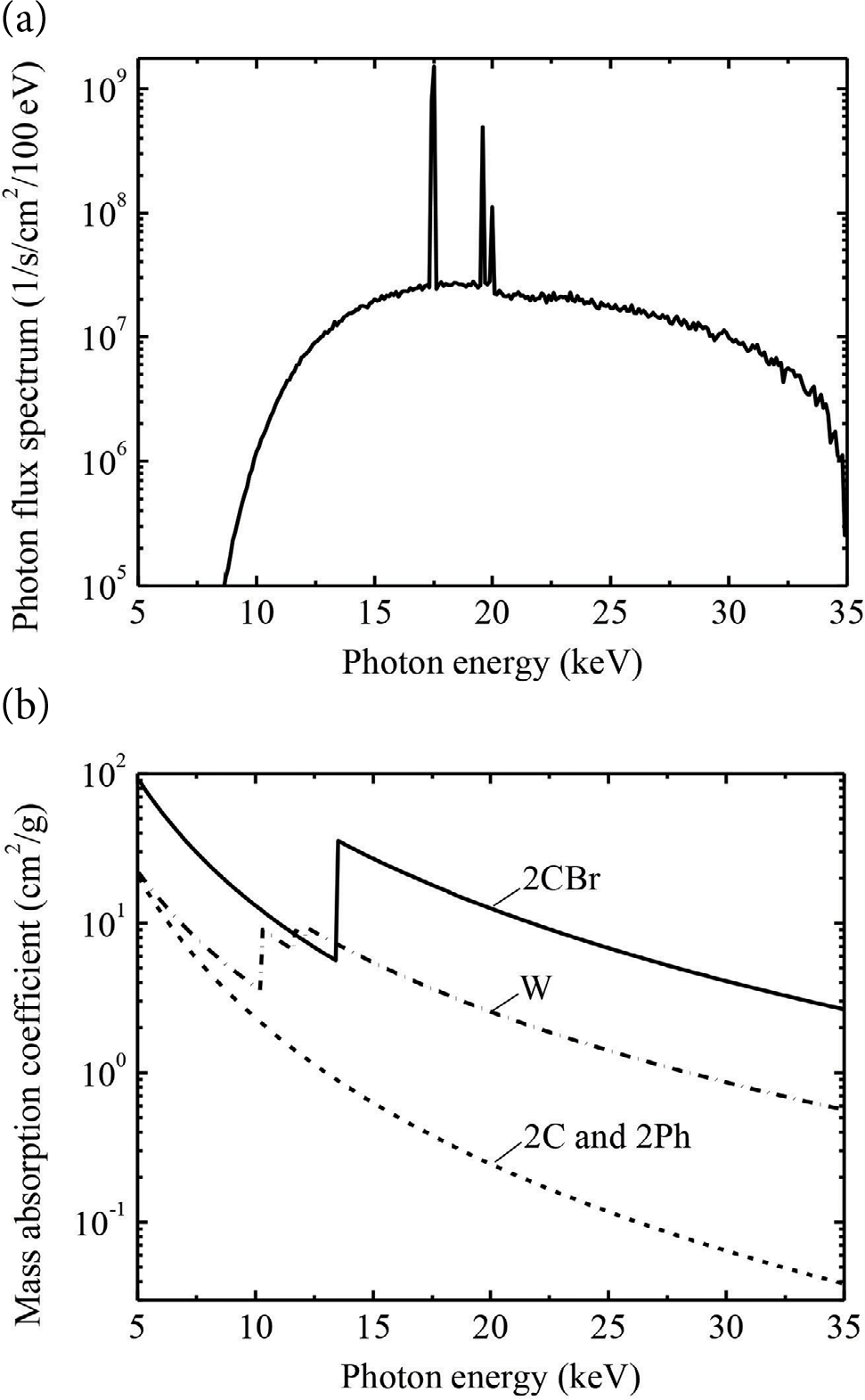

The mentioned spectrum is shown in Fig. 7(a), and the mass photoelectric absorption coefficients of the matrix materials and the tungsten filler are shown in Fig. 7(b).

The X-ray-induced current is proportional to the electron generation rate multiplied by the fraction of electrons that were not lost to recombination and trapping inside the layer. The electron generation rate (per unit mass of the layer material) at a given depth x is equal to

where A is the energy absorption rate (per unit mass of the layer material). The energy absorption rate A(x) consists of two terms:

1) energy of the secondary radiation from tungsten particles due to absorption of X-rays in them (assuming that this secondary radiation is completely absorbed in the organic matrix),

2) energy of the primary X-ray photons absorbed in the organic matrix.

Photoelectric absorption of X-rays in tungsten particles produces fast electrons and secondary characteristic X-ray radiation (the so-called ‘X-ray fluorescence’). However, most of the energy of the X-ray fluorescence radiation escapes from the layer due to high photon energy (greater than 8 keV in the case of tungsten). The contribution of K_α and K_β X-ray fluorescence radiation from Br atoms (photon energies 11.9 and 13.29 keV, respectively) to the photocurrent is also negligible. In contrast, the energy of fast electrons is practically completely absorbed in the matrix (because of their short range). The mentioned escape of X-ray fluorescence photons from the layer can therefore be taken into account by modifying Eq. (28) as follows:

A_W is the energy of electrons released from Wp (per unit time and unit mass of the layer material), A_matrix is the energy of the incident X-ray photons that were absorbed in the matrix per unit time and unit mass of the layer material, and f is the fraction of that energy that was converted to energy of fast electrons (i.e. that was not re-emitted from the layer in the form of secondary X-ray radiation). The energy loss due to escape of high-energy X-ray fluorescence photons caused by photoelectric absorption in the organic material is significant only when the matrix contains high-Z atoms. This means that for 2C and 2Ph, f ≈ 1. For 2CBr, which contains Br (Z = 35), f < 1. The value of f for 2CBr has been calculated by the Monte Carlo simulation of a 25 μm-thick homogeneous layer of 2CBr with a density of 2.5 g/cm³ exposed to a normally incident beam of X-ray radiation. After simulating interaction of 10⁷ source photons with the layer, it has been determined that the total absorbed energy is E_abs = 1.1 ⋅ 10¹⁰ eV, and the total energy of the escaping Br K_α and K_β X-ray fluorescence photons is E_loss = 5.0 ⋅ 10⁹ eV. This means that f = E_abs/(E_abs + E_loss) ≈ 0.7.

The value of A_W in Eq. (29) can be expressed as follows:

Here Φ_E΄ (x) is the spectral photon flux density (shown in Fig. 7(a) for x = 0), μ_W(E΄) is the mass photoelectric absorption coefficient in tungsten for photon energy E΄, and E̅_E΄ is the average total energy of all electrons released from a single tungsten particle after absorption of a single photon with energy E΄ in it. The values of E̅_E΄ have been determined in the present work by performing Monte Carlo simulations of electron release from a sphere of tungsten with a diameter of 0.8 μm placed into a uniform unidirectional flux of photons with a fixed energy, which was varied from 5 to 35 keV in increments of 1 keV.

The value of Amatrix in Eq. (29) can be expressed using a formula similar to Eq. (30),

where μ_matrix(E΄) is the mass photoelectric absorption coefficient in the organic matrix for photon energy E΄.

The experimental values of W for the nine simplest hydrocarbons, as well as for CH₃OH and C₂H₅OH, are tabulated on p. 28 of [38], and they range from 22 eV (for C₆H₆) to 27 eV (for CH₄). The values of W have also been calculated in the present work by the Monte Carlo simulation of a monoenergetic electron source in an infinite medium with the same composition as the matrix materials investigated in the present work. Those calculations were performed at two electron energies: 5 and 35 keV, by the method described in [43]. For both energies and for all three matrix materials, the calculated values of W are similar, and they range from 23 to 24 eV. Consequently, the value of W in Eq. (29) will be assumed to be equal to 23.5 eV.

The theoretical photocurrent density (which corresponds to absence of recombination and trapping of charge carriers, as well as absence of any field effects) is equal to

where e is the elementary charge, g̅ is the average value of the electron generation rate (3.29) in the layer, d is the layer thickness, and ρ is the layer density. The layer thickness is 25 μm, and the density of all three matrix materials is equal to 2.5±0.5 g/cm³. The corresponding density of the layers containing Wp with a mass fraction of 0.04 is equal to 2.59 g/ cm³. The values of j_th obtained by substituting Eq. (29) into Eq. (32), along with the corresponding theoretical values of the photocurrent density in a homogeneous material (j_th. hom.) and experimental maximum values of the photocurrent density (j_exp. max), are presented in Table 1.

3.3. Interpretation of the experimental differences of sensitivity in terms of the theoretical model

The fact that in the case of 2C+W and 2Ph+W layers the photoelectrons are mainly generated inside tungsten particles reduces the effectiveness of the field-assisted impact ionization, hence the sensitivity of those layers is even less than the sensitivity of pure 2C and 2Ph (see Table 1). Still, this decrease of sensitivity is not as pronounced as expected from the energy loss inside the tungsten particles alone: according to Table 1, if there was no additional change of sensitivity caused by charge carrier multiplication in the electric field, then the sensitivity of 2C+W and 2Ph+W would be less than the sensitivity of the pure matrix material by a factor greater than 4 (because such is the value of jth. hom./jth). This demonstrates that the mechanism of quenched electron multiplication described in Subsection 3.1 is important not only in 2CBr+W but also in 2C+W and 2Ph+W, and one could expect a significant increase of sensitivity of those layers if the size of tungsten nanoparticles was reduced.

The two competing processes (charge carrier recombination and multiplication) that are responsible for the observed differences of sensitivity are both characterized by a strong dependence on the electric field strength and on the layer thickness:

1) increase of electric field strength causes a decrease of the average recombination rate (because the charge carriers have a greater drift velocity and reach the electrodes in a shorter time) and an increase of the multiplication factor K, except at extremely strong fields when K starts to decrease (see Fig. 6),

2) increase of the layer thickness causes an increase of the average recombination rate (because the charge carriers have to travel a longer distance and reach the electrodes in a longer time), and an increase of the multiplication factor (compare Fig. 6(a, b)).

Thus, the changes of the photocurrent due to each of those two processes have the same sign when they are caused by a change of electric field, but opposite signs when they are caused by a change of the layer thickness. The latter fact could be used to check if the electron multiplication effect is present. If an increase of the layer thickness causes a significant increase of the sensitivity, then this would confirm that the field-stimulated electron multiplication is the main reason of the sensitivity increase. In absence of recombination, the relative change of sensitivity would be equal to the relative change of the multiplication factor. For example, using the parameter value E_min = 0.7 eV in Fig. 6, an increase of the layer thickness from 12.5 to 25 μm would cause an increase of the sensitivity at F = 6 ⋅ 10⁶ V/m by 36% (because the ratio of the corresponding K values is 5.448/4.010 = 1.36). If, on the other hand, an increase of the layer thickness causes a decrease of the sensitivity, then this would mean that the field-stimulated electron multiplication is absent or insufficient to overcome the effects of the increased recombination rate.

It should be noted again that all the above is based on the assumption of uniform photogeneration of charge carriers (i.e. constant absorbed dose rate). This assumption is approximately satisfied in the case of a weak absorption of X-rays, and it may be applied in the case of the layers discussed in the present work (they absorb only a few percent of incident X-ray photons at most).

The measured dependence of the sensitivity on electric field strength, which is shown in Fig. 4 for four values of the layer thickness, indicates that the sensitivity increases with layer thickness: an increase of the thickness from 7 to 25 μm causes an increase of the sensitivity by a factor greater than 2. As explained above, this confirms that the field-stimulated electron multiplication is the main reason of the sensitivity increase.

4. Conclusions

The results of calculations of the electron multiplication factor K in an organic-inorganic blend with tungsten nanoparticles demonstrate that the assumption of existence of a threshold value of electron energy E_min, below which the electrons cannot be accelerated by electric field to energies sufficient for impact ionization, leads to a significant departure of the dependence of the electron multiplication factor K on electric field strength F from a simple exponential increase, which is commonly associated with an electron avalanche. In fact, K even starts to decrease when F exceeds a certain value. Since there are no electrons with energy above E_min at the thermodynamic equilibrium at room temperature, the mentioned electron multiplication occurs only under conditions of electron excitation by an external source of energy, such as X-rays in the present work.

The results of measurements of the X-ray sensitivity of 2CBr+W layers indicate that the sensitivity (defined as the average charge collected from the unit volume divided by the average absorbed dose) increases with the layer thickness (an increase of the thickness from 7 to 25 μm causes an increase of the sensitivity by a factor greater than 2). This confirms that the mentioned electron multiplication is the main reason of the sensitivity enhancement, which has been observed after adding tungsten particles into the organic material.

Another factor affecting the X-ray sensitivity is the ionization energy loss of photoelectrons generated inside metallic nanoparticles. This phenomenon has an adverse effect on the sensitivity. As demonstrated by Monte Carlo simulations, when the photoelectrons are mainly generated inside the tungsten nanoparticles with an average diameter of 0.8 μm (as is the case with 2C+W and 2Ph+W), the corresponding relative decrease of the sensitivity may be as large as 75%. In order to reduce this effect, the size of nanoparticles should be reduced, or, alternatively, most of the photoelectrons should be generated in the organic matrix rather than inside the nanoparticles (as is the case with 2CBr+W, where the photoelectric absorption of X-rays mainly occurs in Br atoms).
