ALTERNATING CURRENT SUSCEPTIBILITY AND MAGNETISATION OF NANOCRYSTALLINE Co2MnSi HEUSLER ALLOY FILMS

B. Vengalis a, A. Maneikis a, G. Grigaliūnaitė-Vonsevičienė b, R. Juškėnas a, and A. Selskis a

a Center for Physical Sciences and Technology, Goštauto 11, 01108 Vilnius, Lithuania

b Vilnius Gediminas Technical University, Saulėtekio 11, 10223 Vilnius, Lithuania
Email: veng@pfi.lt

Received 11 June 2019; revised 16 September 2019; accepted 10 November 2019

The Co2MnSi (CMS) Heusler alloy films with thickness d = 90 ÷ 110 nm were grown by DC magnetron sputtering on both nonheated and heated Si(100) and MgO(100) substrates. The films grown (annealed) at T ≥ 400°C demonstrated a nanocrystalline structure with a partially ordered B2 phase and traces of a highly ordered L21 phase as found from XRD measurements. The films deposited onto the nonheated substrates followed by annealing at Tann = 300 ÷ 500°C demonstrated a gradual increase of the saturation magnetisation, Msat, up to about 4.0 μB/f.u. (at 295 K) while the coercity field, Hc, of the films increased from about 10 to 12 kA/m with Tann increasing from 400 to 500°C. Unusually low Hc values of about 0.1 and 0.3 kA/m have been indicated for the films grown in situ at 400°C on MgO and Si, respectively. A significant increase of the Hc values found for the films grown in situ at Ts = 450°C and reduced Msat values for similar films grown at 500°C have been associated with the instability of the ordered L21 structure at high temperatures.

Keywords: Co2MnSi, Heusler alloy films, AC magnetic susceptibility, magnetisation, magnetoresistance

PACS: 75.60.-d, 72.15 Gd, 75.70.-i, 75.30.-m

1. Introduction

Metallic Co2MnSi (CMS) compound is a member of the  group represented by the  general formula X2YZ (here X and Y are transition metals and Z is the main group element) and known as full Heusler alloys [1, 2]. The materials containing Co, Fe and Mn demonstrate interesting ferromagnetic properties. CMS is known as a strong ferromagnet exhibiting high Curie temperature (TC ≅ 985 K) and relatively high saturation magnetisation Msat (of about 5.1  μB/f.u. at T  =  4  K  [2]). Furthermore, a  large energy gap of about 0.5 eV for the minority-spin band is of key importance to ensure half metallicity of the compound [3, 4]. All these unique properties provide increasing scientific and technological interest making the compound as one of the most promising for the  fabrication of magnetic tunnel junctions, spin injection/detection structures and other spintronics devices operating at room or even higher temperatures [2, 4].

The CMS compound crystallizes in a  cubic structure. Three different types of structural configurations, namely L21, B2 and A2, depending on the chemical ordering degree of the constituent elements, have been reported [58]. The L21 structure demonstrating the  highest chemical order (space group Fm3̅m) is composed of four interpenetrating f.c.c. sublattices, as seen in Fig. 1. Two sites of the  L21 lattice with the  corresponding (0, 0, 0) and (0.5, 0.5, 0.5) positions occupied by Co atoms form a simple cubic sublattice while the (0.25, 0.25, 0.25) and (0.75, 0.75, 0.75) positions are occupied by the Mn and Si elements, respectively. The B2 structure characterized by a lower ordering degree corresponds to the  randomly occupied Mn and Si atomic sites while the random site occupancy of all atomic sites is characteristic of the  disordered A2 structure characterized by a simple b.c.c. lattice [2, 4].

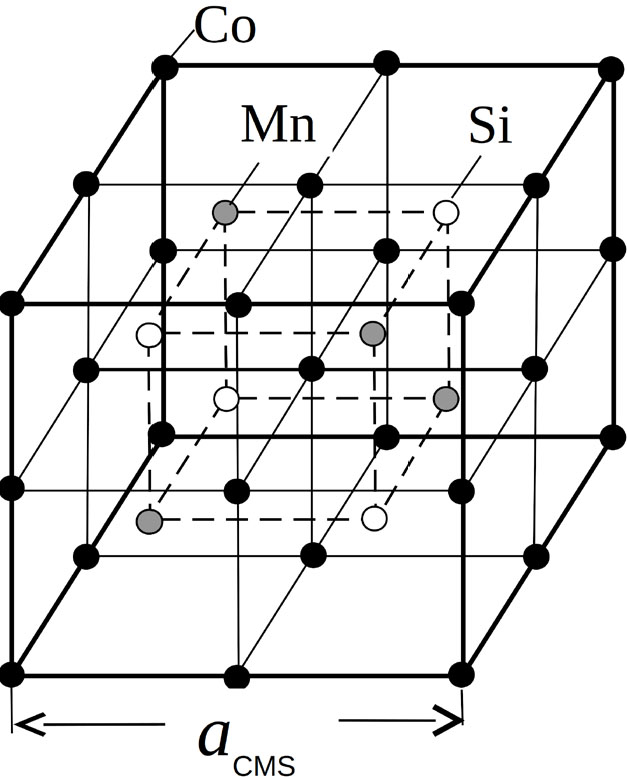

Fig. 1. Crystalline structure of the  highly ordered Co2MnSi compound (L21 structure).

Magnetic and electrical properties of the CMS compound are known to depend on a crystalline structure and chemical ordering of the  constituent elements. Ordering of atoms in CMS films was found to depend on a  number of factors such as crystalline quality, atomic composition, deposition conditions and post-annealing [2, 510].

Various deposition techniques such as magnetron sputtering  [911], molecular beam epitaxy  [12], laser ablation  [8] and plasma-assisted sputtering [13] have been employed for the growth of the CMS films using various substrates such as crystalline Si [5, 9, 11], Al2O3 [6, 14], MgO [6, 8], GaAs [15], Ge [12] and amorphous glass [7].

Preparation of CMS films on Si is highly appreciated due to a promising possibility to achieve spin injection into semiconductors and possible integration of spintronics devices based on CMS films into microelectronics circuits. However, a polycrystalline structure is usually certified for the CMS films when grown on Si substrates due to a  naturally formed amorphous SiO2 nanolayer. MgO is known as a promising tunnel barrier material for the  fabrication of tunnel junctions with Heusler alloy electrodes  [16]. Growth of high crystalline quality CMS films on MgO is still a problem because of a significant lattice mismatch (aCMS ≅ 0.5655 nm, aMgO ≅ 0.421 nm) although it was found that the CMS lattice parameter matches within 5% with the face diagonal of MgO. Attempts were undertaken to reduce this mismatch by introducing ultrathin metallic seed layers of CoFe  [16, 17] and Cr  [13, 18] and depositing the CMS films with an excess Mn content [17]. As a result, the epitaxial growth of the CMS films on MgO has been demonstrated [19]. High values of tunnelling magnetoresistance have been reported for the prepared tunnel junctions with CMS electrodes and MgO barrier [16].

The effects of deposition/annealing temperature on the  crystalline structure, magnetic and transport properties of CMS films were studied by a number of authors [7, 11]. However, up to date, the evolution of magnetic and magnetotransport properties in the films has not yet been fully understood. Unfortunately, there is still a great difference in major parameters and optimal deposition conditions reported by various authors. This can be understood taking into account a great number of competing processes taking place during CMS film preparation such as different crystallization conditions, diffusion-controlled ordering of atoms during film growth and post-deposition annealing, different conditions for ordering at interfaces and intergrain boundaries, possible interdiffusion of atoms [11], segregation of Si at interfaces [11, 20] and possible instability of the  ordered L21 phase at high temperatures [6].

In this work, we were focussing on a comparative study of the CMS thin films prepared by magnetron sputtering on both heated and nonheated Si(001) and MgO(001) substrates. To reveal the effect of a substrate on the major magnetic properties of the films, deposition conditions were kept identical by attaching different substrates on the sample holder. The films prepared ex situ on different substrates (characterized by the  same thickness) were annealed at the  same conditions. The  major magnetic properties, namely the coercive field and saturation magnetisation of the  CMS films prepared under various deposition (post-annealing) conditions, were studied systematically by applying an alternating current (AC) magnetic susceptibility method  [21]. A  high sensitivity to the slope of M(H) and not to the absolute value is an important advantage of this method. Thus, there was a promising possibility to reveal small magnetisation changes of the  CMS films caused either by substrates or preparation conditions.

2. Experiment

The CMS films with thickness d = 90 ÷ 110 nm were grown on both nonheated and heated (Ts  =  200  ÷  500°C) Si(001) substrates and MgO single crystals with cleaved (001) faces by using DC magnetron sputtering of a  commercially available disk-shaped Co0.50Mn0.25Si0.25 alloy target with a diameter of 50 mm. The pressure of residual gasses in a vacuum chamber was ∼3 ∙ 10–5 Pa while the pressure of Ar of about 3 Pa was used for sputtering. To reveal the  effect of a substrate on the  major magnetic properties, different (Si and MgO) substrates were attached nearby each other on the sample holder. The films grown on different substrates characterized by the  same thickness were subsequently annealed in vacuum in the same chamber at Tann = 300 ÷ 500°C.

The growth rate of the films was ∼4.0 nm/min. Their thickness was controlled by deposition duration. The uniformity of the thickness over a large film area was additionally controlled by optical absorption of infrared radiation with a  wavelength of 1.2  μm. In the  following, a  thickness of each sample used for magnetisation investigations was measured precisely by a Dektak 6M profilometer. A  crystalline structure was investigated by measuring X-ray diffraction patterns in the  Θ-2Θ geometry and the  grazing incidence X-ray diffraction (GIXRD) mode using an X-ray diffractometer equipped with a CuKα1 radiation source.

Alternating-current (AC) susceptibility measurements were performed to study the magnetic properties of the  films  [2124]. The  method is based on the  measurement of the  differential response of magnetisation (dM/dH) induced by the  oscillating magnetic field in the  limit of a small AC magnetic field, HAC. Different parts of the M(H) curve can be studied by applying a variable DC magnetic field (H) oriented parallel (antiparallel) to HAC. A number of new possibilities of this method adopted for the investigation of various materials including superconductors [24, 25] have been demonstrated earlier [2628].

The AC susceptometer employed in this work has been designed using local facilities. The coil system of the susceptometer consisted of magnetically coupled primary (1) and secondary (2) coils (see Fig. 2). The primary coil (600 turns of insulated copper wire) was used for the generation of AC magnetic field. The secondary (pick up) coil placed inside the  primary coil consisted of two identical sections (300 turns each) wound in opposite directions and separated from each other by a distance of 5 mm. The sections (a) and (b) shown in Fig. 2 were connected in series to make the output signal in the absence of the sample equal to zero. AC current in the primary coil was kept fixed (of about 1 mA) to ensure a small but fixed AC magnetic field (HAC < 10A/m) inside the coil. The applied DC magnetic field, H, directed along the coil axis, i. e. parallel (antiparallel) to the AC field, was tuned in a range of –300 ÷ 300 kA/m by passing DC current through the  coils of an electromagnet (see Fig. 2). The  measured signal was induced when a sample was placed into one of the  sections due to the  time-dependent magnetisation of the investigated material resulting in variation of mutual inductance. The  off-balance signal (occurring in the  absence of the  sample) was subtracted from the measured signal. A special care was taken to fix the positions and to minimise the thermal contraction of the primary and secondary coils.

In the case of a small sinusoidal AC field (HAC) and low driving frequency (f), the induced output voltage, VAC, may be expressed as [21, 23]

V AC =αVf( dM/dH ). H AC .sin( 2πft ),( 1 )

where M is the magnetic field-dependent magnetisation corresponding to a  unit volume of the  investigated material, χ  =  dM/dH is the  slope of the M(H) curve called the AC susceptibility, V is the sample volume and α is the coupling constant defined by the coil system and geometry factors of the measured sample. It can be seen from Eq. (1) that the absolute accuracy of the χ depends upon the accuracy with which each of the five parameters in Eq. (1) are determined. It is worth noting, however, that the excitation field, HAC, and the frequency (f  =  34.50  kHz) were kept fixed in this work. Furthermore, to avoid a possible effect of the geometrical factors, stripe-like films with the  well-defined thickness and fixed other dimensions, i.e. 15 mm in length and 5 mm in width, were used for the investigations.

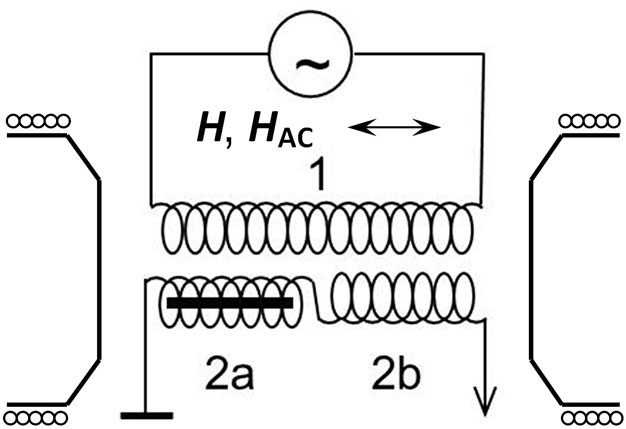

Fig. 2. Coil assembly used in this work for AC magnetic susceptibility measurements.

The detected signal was measured in a narrow frequency band, at the  fundamental frequency of the driving field using a phase-sensitive lock in amplifier. The phase shift of the amplifier was adjusted to maximise the output signal in respect to a  reversible magnetisation change staying in phase with the  AC field and corresponding to the real part of complex susceptibility. At the same time, by introducing a phase shift of 90° we were able to estimate the imaginary part of χ related to the energy absorbed from the field [22]. The measurement equipment has been designed to perform investigations in a wide temperature range (300 to 78 K) and frequencies ranging from 1.0 to 100 kHz. The  intermediate fixed frequency of 34.50  kHz used for the investigations has been picked out by us as a compromise to get a sufficient amplitude of the measured signal (VAC ∼ f) and to reduce possible irreversible magnetisation losses which may appear at high frequencies.

The variation of M with the applied DC magnetic field increasing from H ≤ –Hsat (Mlr) and decreasing from H ≥ Hsat (Mrl) was obtained numerically from the equations

M lr ( H )= H sat H χ ( H )dH, M r l ( H )= H H sat χ ( H )dH,( 2 )

where Hsat is the  saturation field. The  saturation magnetisation, Msat (corresponding to a  unit volume of the  material), has been estimated from the measured (H) curves by applying a conventional integration procedure and assuming that χ = 0 at |H| > |Hsat|:

M lr ( H )= H H sat χ ( H )dH.( 3 )

To evaluate the Msat values of the films, the magnetometer has been calibrated using ferromagnetic Fe and Co films (deposited on Si substrates) with the lateral dimensions 5.0 × 15.0 mm2, thickness of 150 and 145 nm, respectively, and Msat values found from the VSM measurements. The unit cell volume of the cubic CMS lattice has been evaluated in this work using the lattice parameter aCMS = 0.563 nm.

3. Results and discussion

Noticeable XRD patterns of the material have only been indicated for the  films annealed (or grown in situ) at higher temperatures (≥400°C). However, no XRD diffraction patterns of the CMS lattice have been indicated in this work for the  films grown either onto nonheated Si or MgO substrates and those annealed after the deposition at Tann < 400°C. Therefore, we point out the presence of an amorphous state or the  formation of nanocrystallites with a  small diameter either for the as prepared films and those annealed at low temperatures in accordance with earlier reports [5, 6].

A typical Θ-2Θ XRD scan measured for the CMS film grown onto the  nonheated Si substrate and annealed subsequently at 500°C for 1 h shown in Fig. 3(a) demonstrates the formation of a polycrystalline structure. The  observed XRD patterns at 2Θ = 27.3 and 31.2° correspond to the (111) and (200) diffraction reflexes of a partially ordered B2 phase  [8, 11]. Similar XRD scans demonstrating traces of the (111) and (200) reflexes have been indicated for the CMS/MgO films either annealed or grown in situ at T ≥ 400°C. The lattice parameter of a cubic unit cell, aCMS, of 0.563±0.005 nm estimated for the CMS/(Si, MgO) films from the angular position of the (111) and (100) reflexes is close to that of the bulk material of the same composition [11]. A rather low amplitude of the characteristic (111) and (100) XRD peaks may be explained assuming a  relatively small diameter of randomly oriented grains. Certainly, the  average diameter of grains of about 30 nm has been indicated from the SEM surface image of the  CMS/Si film annealed at Tann = 500°C (see the inset to Fig. 3(a)). It was found in this work that the averaged grain size of the CMS films decreased down to about 20 nm with Tann decreasing from 500 to 400°C.

Unfortunately, the highly ordered L21 phase has not been indicated in Θ-2Θ XRD scans. The evidence of this phase is usually associated with the characteristic (220) XRD diffraction reflex. In order to better reveal the  presence of this phase, XRD spectra were measured in the GIXRD mode. In this case, traces of a rather wide (220) reflex (in the vicinity of 2Θ ≅ 45°) have only been indicated for the films either post-annealed or grown in situ at T  ≥  450°C (see the  corresponding diffraction pattern in Fig. 3(b) indicated for the CMS/Si film annealed at 500°C and that grown in situ at 450° on MgO). The observed rather wide (220) reflex in both cases may be associated to a weakly defined long-range order of the L21 phase, small dimensions of the phase regions or the presence of a mixed B2–L21 phase structure. A  similar widened shape of the (220) reflex indicated for the films deposited on different substrates show, probably, that a nanocrystalline structure is formed in the very beginning of the  deposition process while subsequent annealing is not sufficient to realize diffusion-controlled recrystallization of randomly oriented crystallites. Insufficient crystallinity and relatively small grains in both post-annealed and in situ grown CMS films pointed out earlier [2, 4] have been explained taking into account a relatively slow diffusion of Si atoms in the CMS lattice.

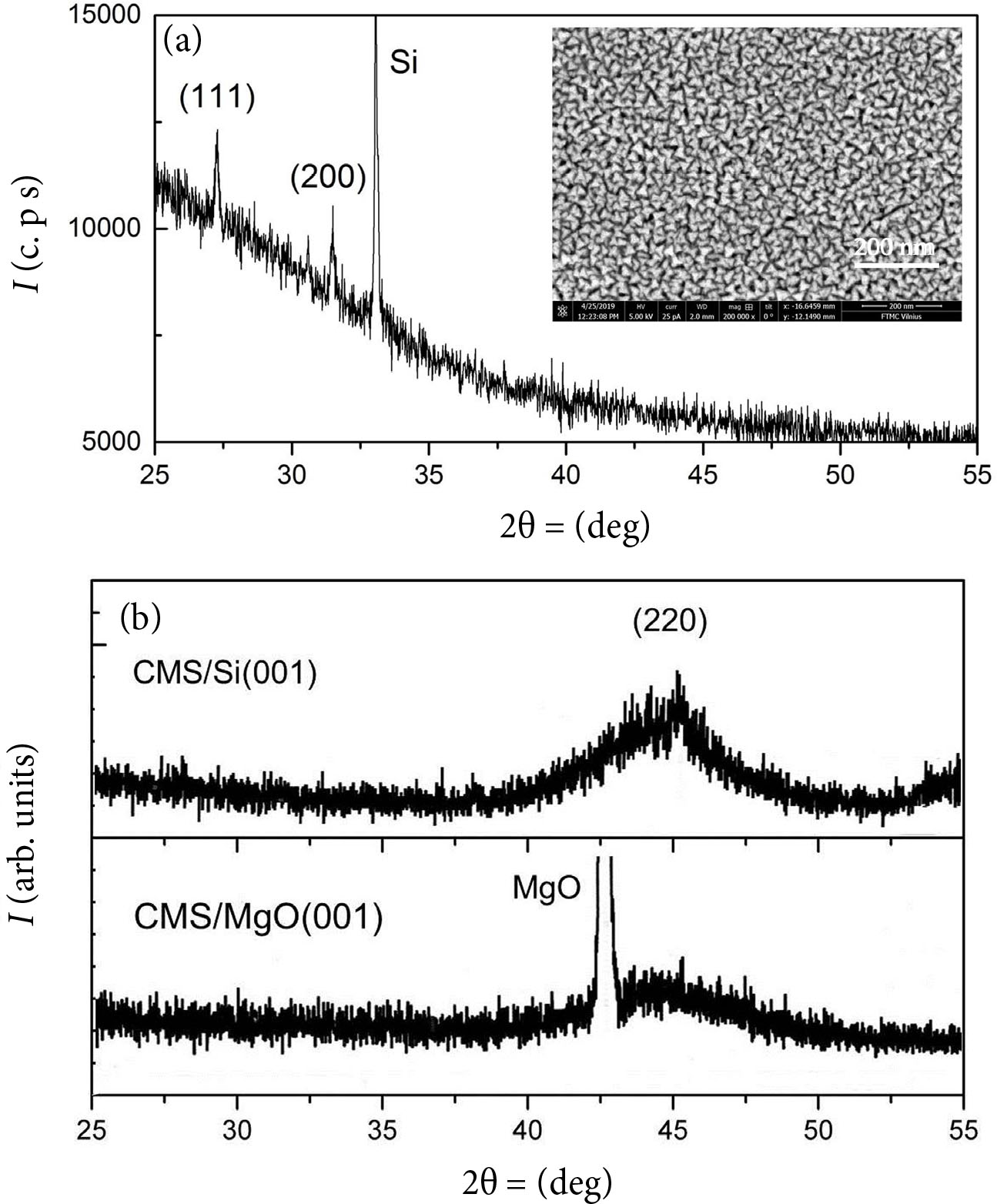

Fig. 3. XRD scans of the  CMS films. (a) The  Θ-2Θ XRD scan of the 110 nm thick CMS film grown on Si (001) and annealed subsequently in vacuum at 500°C for 1 h. The SEM surface image of the film is shown in the inset. (b) The GIXRD scans measured for the CMS/Si film annealed at 500°C for 1  h and for the  95  nm thick CMS/MgO film grown in situ at 450°C.

The CMS/(Si, MgO) films exhibiting the  nanocrystalline grains with an  A2 type disorder (when grown or annealed at T  ≤  300°C) demonstrated relatively high resistivity values (ρ ∼ 0.3 ÷ 0.4 mΩ cm at 295 K) which are typical of highly disordered metallic alloys. The negative temperature coefficient of resistance (TCR) with the  ratio ρ(300)/ρ(78) ranging from 0.9 to 0.97 has been indicated for these films in a good accordance with earlier observations  [7, 8]. The  reduced resistivity and positive TCR values, ρ(300)/ρ(78) ≅ 1.0 ÷ 1.2, have been indicated for the  films either annealed or deposited in situ at T ≥ 400°C. This our observation is in a consistent with the  XRD structural analysis revealing improved crystallinity and site ordering of the films when grown or annealed at T ≥ 400°C.

The investigation of complex magnetic susceptibility in a  wide frequency range (1.0–100  kHz) has showed that the imaginary part of the prepared CMS films is at least by two orders of magnitude smaller compared to that of the real part. Therefore, the influence of the imaginary part was further neglected and the variation of the real part of susceptibility has only been considered.

Figure 4(a) shows the magnetic field-dependent real part of χ (referred to hereafter for simplicity as AC susceptibility) measured for the  CMS film (d = 110 nm) series deposited onto the nonheated Si(001) substrate followed by annealing in vacuum at different temperatures. Curve 1 in the figure corresponds to the as prepared film while curves 2, 3 and 4 were obtained for the films after their annealing for 1 h at 400, 450 and 500°C, respectively.

Following Fig. 4(a), we also point out a significant change in the shape of the characteristic χ(H) curves with film annealing. The χ(H) curve of the as prepared film (see curve 1 in Fig. 4(a)) demonstrated a wide bell-shaped peak (with the half width at half maximum of about 200 kA/m). Meanwhile, annealing of the films at Tann  ≥ 400°C revealed a complex shape of the χ(H) curves demonstrating the occurrence of a narrow peak in the low field region (with the half width at half maximum of about 40 kA/m). The  observed complex shape of the  χ(H) curves may be understood assuming that magnetisation of the films is defined by different (smaller and larger) grains, as pointed out earlier [7]. Thus, we do believe that the observed peak-like χ(H) behaviour in the low field region (|H| ≤ 50 kA/m) may be associated with the magnetisation reversal process caused by larger grains exhibiting a highly ordered L21 (or partially ordered B2) structure while variation of χ(H) at higher fields (|H| = 50 ÷ 200 kA/m) could be associated either with the magnetisation of smaller grains or the amorphous matrix.

The field-dependent magnetisation of the films per formula unit, M(H), shown in Fig. 4(b) has been obtained numerically according to Eq.  2. The  coercive field values estimated for the  films from their magnetisation loops, seen in Fig. 4(b), correlate with the corresponding χ(H) peak positions in Fig. 4(a). It can be seen from Fig. 4(b) that Msat increased with Tann and reached the highest value of about 4.0 μB/f.u. (at T = 295 K) for the CMS/Si film annealed at 500°C. The CMS films prepared on the MgO(100) substrates demonstrated a similar χ(H) behaviour although the corresponding Hc values were lower and Msat values were slightly higher compared to those obtained for the CMS/Si films deposited and annealed at the same conditions. A slight increase of both Hc and Msat values has been found for all the  prepared films from the  corresponding χ(H) measurements at T = 78 K. The major magnetic parameters of the films grown onto the nonheated Si and MgO substrates with the following annealing at different temperatures, namely the coercive field, Hc, and saturation magnetisation per formula unit, Msat, are displayed in Table 1.

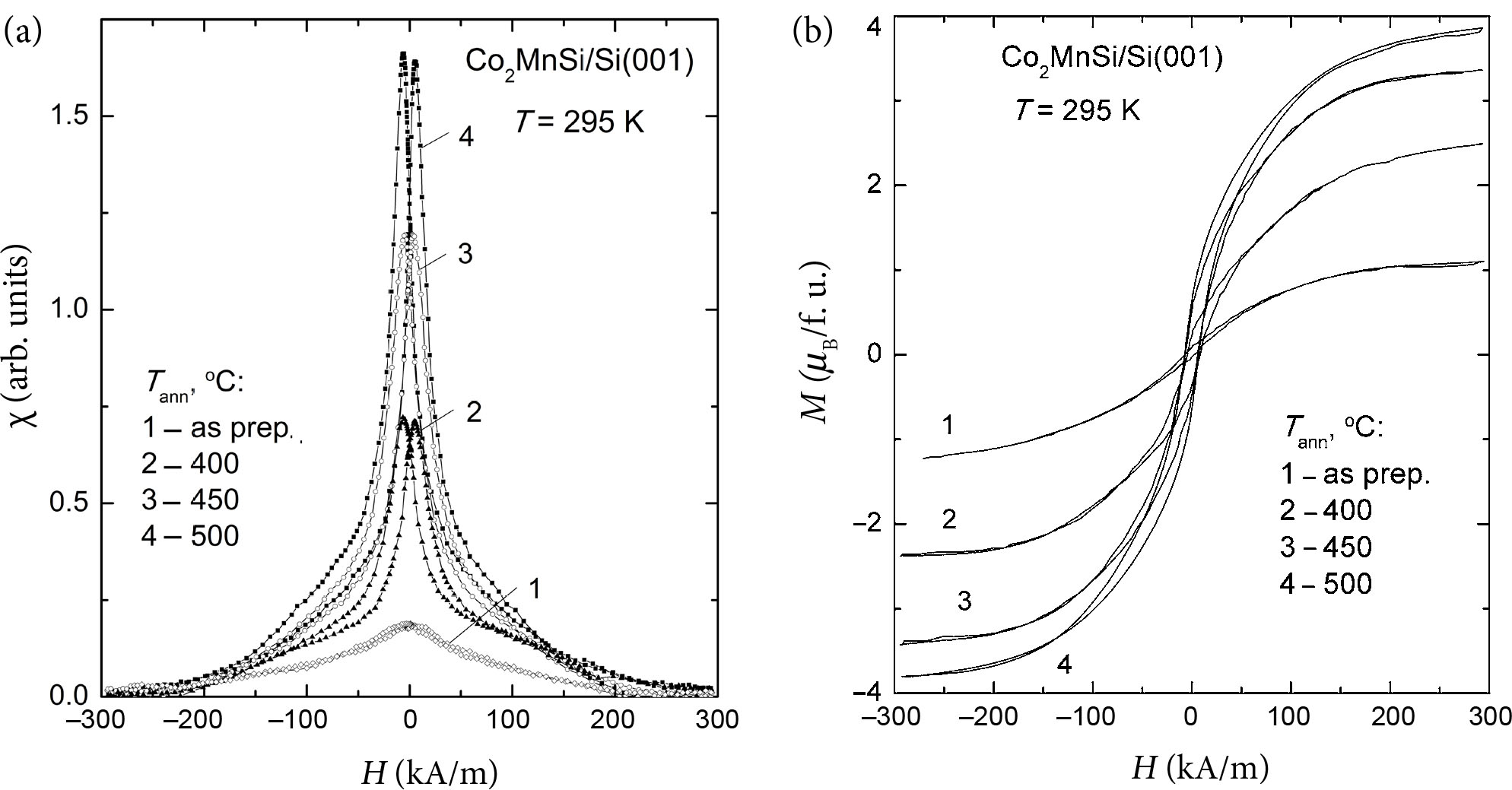

Fig. 4. Magnetic field-dependent AC susceptibility (∼dM/dH) (a) and the corresponding magnetisation loops (b) of the CMS/Si(001) films (d = 110 nm) measured at 295 K just after deposition (1) and after annealing in vacuum for 1 h at 400°C (2), 450°C (3) and 500°C (4).

Following Table  1, we point out relatively low coercive field values for the CMS films grown either on Si and MgO substrates and a gradual decrease of Hc with Tann increasing up to 500°C. A similar behaviour, i.e. a decrease of Hc down to about 35 kA/m and an increase of Msat up to 4.0 μB (at T  =  300  K) with Tann increasing up to 400°C, has been reported for the CMS films deposited on the Al2O3 substrates [6].

The increase of magnetisation correlating with the  improved crystalline structure and ordering of atoms caused by post-deposition annealing is a  common feature of most CMS films reported earlier [8, 9]. Certainly, it is generally accepted that the highest magnetic moment (of about 4.9 μB/f.u. at RT) can only be measured for perfectly ordered CMS films (L21 phase) due to the ferromagnetic interaction of the nearest Co–Co and Co–Mn sites and the absence of the nearest Mn–Mn sites resulting in a strong antiferromagnetic interaction [17]. The presence of anti-site disorder (less ordered B2 or disordered A2 phases) leads to the existence of the nearest Mn–Mn sites competing with the Co– Co and Co–Mn ferromagnetic interactions and thus resulting in reduced magnetisation values.

Table 1. The coercive field, Hc, and saturation magnetisation, Msat, values estimated at T = 295 K and 78 K for the CMS/Si and CMS/MgO films (≅ 120 nm) deposited under the same conditions and heated subsequently for 1 h in vacuum at different annealing temperatures, Tann.
Film/substrate Tann, °C Hc(295 K), kA/m Msat(295 K), μB/f.u. Hc(78 K), kA/m Msat(78 K), μ/f.u.
CMS/Si(001) 10.0 1.2 15.5 1.5
400 7.5 2.7 11.5 3.0
450 7.0 3.5 10.0 3.2
500 8.5 4.0 10.5 4.2
CMS/MgO(001) 13.0 1.5 18.0 2.1
400 7.0 3.1 11.5 3.3
450 7.0 3.5 11.0 3.5
500 7.5 4.2 11.2 4.5

It is worth noting also that there is a significant magnetisation of the as-prepared films when grown by magnetron sputtering onto the nonheated Si and MgO in contrast to the nearly zero magnetic moment reported for the CMS films sputtered either on Si and MgO [8, 9, 11]. Higher Msat values found in this work may be understood taking into account a higher growth rate (of about 4.0 nm/s) due, probably, to a higher discharge power of sputtering. Certain magnetisation of the films may be understood taking into account that the majority of magnetic interactions in the unit cell of the disordered CMS compound remain ferromagnetic  [7]. Thus, we point out the importance of plasma-enhanced diffusion of the adsorbed atoms during sputtering as a promising possibility to improve a short range order and to enhance the magnetisation of the films when grown onto nonheated substrates.

An interesting evolution of magnetic properties has been observed in this work for the films grown in  situ at various temperatures (Ts). The  magnetic field-dependent AC susceptibility measured for the  CMS films grown in situ on Si(001) and MgO(001) is shown in Fig. 5(a, b), respectively. To better reveal the variation of the χ(H) curves both at low and high fields, the  applied DC magnetic field in Fig. 5(a, b) is plotted in a logarithmic scale, and therefore positive field values (H > 0) are only displayed in the figure.

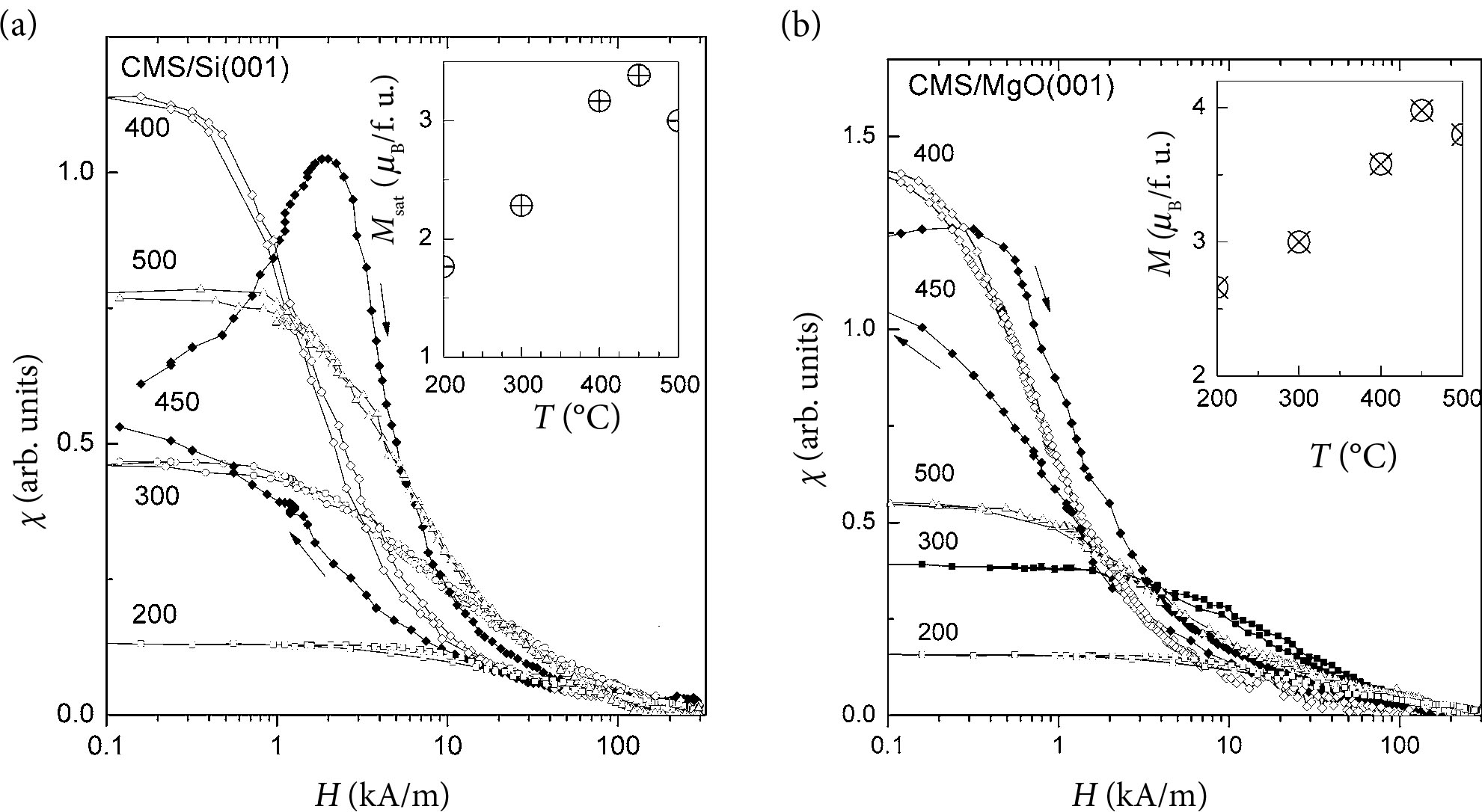

Fig. 5. AC susceptibility versus the applied magnetic field measured at 295 K for the CMS films grown in situ at various temperatures (Ts = 200, 300, 400, 450 and 500°C) on Si(001) (a) and MgO(001) (b) substrates. The corresponding saturation magnetisation values as a function of Ts are displayed in the insets.

Following Fig. 5(a, b) we point out rather narrow χ(H) peaks and significantly reduced coercive field values for the films grown in situ on both Si and MgO substrates if compared to similar data in Fig. 4(a, b) for the ex situ prepared films. The Msat values estimated for the  films from the  corresponding M(H) loops are displayed in the insets to Fig. 5(a, b). The major parameters of the CMS/Si and CMS/MgO films, namely the coercive field, Hc, and saturation magnetisation, Msat (at T = 295 K), are summarized in Table 2.

It can be seen from Fig. 5(a, b) that the highest amplitude of the  characteristic  χ(H) peaks and negligible hysteresis have been indicated for the  CMS/Si and CMS/MgO films when grown in situ at 400°C. A high amplitude of the χ(H) peaks is related to a  step-like magnetisation reversal process while negligible hysteresis demonstrates the property of a soft ferromagnet. Note, however, a significant hysteresis of the χ(H) curves indicated for the films grown in situ at 450°C on Si and MgO with the characteristic coercive field values of 3.0 and 0.5 kA/m, respectively, estimated from the  corresponding magnetisation loops. Meanwhile, it can be seen from the insets to Fig. 5(a, b) that growth of the films at T = 500°C either on Si or MgO substrates resulted in reduced Msat values.

Table 2. The coercive field, Hc, and saturation magnetisation, Msat (at T = 295 K), of the CMS films (d = 90 ÷ 110 nm) grown in situ on Si and MgO substrates at different temperatures (Ts).
Film/substrate d, nm Ts, °C Hc(295 K), kA/m Msat(295 K), μB/f.u.
CMS/Si(001) 110 200 5.0 1.75
105 300 1.0 2.3
95 400 0.5 3.15
90 450 3.0 3.4
96 500 2.0 3.0
CMS/MgO(001) 115 200 4.0 2.6
102 300 1.0 3.0
97 400 0.1 3.55
92 450 0.5 4.0
95 500 0.2 3.7

Following Fig. 5(a, b) and the results displayed in Table 2, we point out the growth temperature Ts = 400°C as the optimal one to prepare magnetically soft CMS films. Lower Hc values indicated for the films grown in situ at this temperature on MgO compared to similar films on Si may be understood taking into account worse crystallisation conditions on Si due, probably, to the existence of a naturally formed amorphous SiO2 nanolayer.

A significant increase of Hc values for the films grown at 450°C shows the  formation of certain inhomogeneities in the grown films acting as efficient pinning centres for domain walls. While the reduced magnetisation of the films grown at Ts = 500°C may be considered as a clear evidence certifying an instability of the  highly ordered (L21) phase at high temperatures in agreement to the earlier report [6].

4. Conclusions

The Co2MnSi (CMS) Heusler alloy films were grown by DC magnetron sputtering on both nonheated and heated Si(100) and MgO(100) substrates. The  films deposited onto the  non heated substrates were annealed subsequently in vacuum at Tann  =  300÷500°C. A  nanocrystalline structure with the partially ordered B2 phase and traces of a highly ordered L21 structure have been found from the XRD investigations for the films grown (annealed) at T ≥ 400°C. The AC susceptibility measurements of the post-annealed films revealed a  slight increase of the  coercivity field (Hc  =  10  ÷  12  kA/m) and a  gradual increase of the  saturation magnetisation, Msat, up to about 4.0 μB/f.u. with Tann increasing from 400 to 500°C. The  plasma-enhanced diffusion of the  adsorbed atoms during sputtering may be considered as an important factor to improve a short range order and to enhance magnetisation of the films when grown by magnetron sputtering onto the  non heated substrates. The films grown in situ on both Si and MgO substrates demonstrated significantly reduced coercive field values compared to similar data obtained for the  ex situ prepared films. The growth temperature Ts = 400°C was found as the optimal one to prepare magnetically soft CMS films. Reduced magnetisation values indicated for the films grown in situ at Ts = 500°C on both Si and MgO have been associated with the instability of the highly ordered (L21) phase at T ≥ 450°C.

References

[1] C. Felser, L. Wollmann, S. Chadov, G.H. Fecher, and S.S.P. Parkin, Basics and prospective of magnetic Heusler compounds, APL Mater. 3, 041518–1–8 (2015), https://doi.org/10.1063/1.4917387

[2] T. Graf, C. Felser, and S.S.P. Parkin, Simple rules for the  understanding of Heusler compounds, Prog. Solid State Chem. 39, 1–50 (2011), https://doi.org/10.1016/j.progsolidstchem.2011.02.001

[3] A.  Akriche, H.  Bouafia, S.  Hiadsi, B.  Abidri, B.  Sahli, M.  Elchikh, M.A.  Timaoui, and B.  Djebour, First-principles study of mechanical, exchange interactions and the  robustness in Co2MnSi full Heusler compounds, J. Magn. Magn. Mater. 422, 13–19 (2017), https://doi.org/10.1016/j.jmmm.2016.08.059

[4] C.J.  Palmstrøm, Heusler compounds and spintronics, Prog. Cryst. Growth Character. Mater. 62, 371–397 (2016), https://doi.org/10.1016/j.pcrysgrow.2016.04.020

[5] F. Yang, W. Li, J. Li, H. Chen, D. Liu, X. Chen, and C.  Yang, The  microstructure and magnetic properties of Co2MnSi thin films deposited on Si substrate, J. Alloys Compd. 723, 188–191 (2017), https://doi.org/10.1016/j.jallcom.2017.06.232

[6] D. Erb, G. Nowak, K. Westerholt, and H. Zabel, Thin films of the  Heusler alloys Cu2MnAl and Co2MnSi: recovery of ferromagnetism via solid state crystallization from the  x-ray amorphous state, J. Phys. D 43, 285001–285009 (2010), https://doi.org/10.1088/0022-3727/43/28/285001

[7] H.  Liu, M.  Tang, B.L.  Guo, C.  Jin, P.  Li, and H.L.  Bai, Effect of deposition temperature on the  structure, magnetic and transport properties in Co2MnSi Heusler films, Appl. Phys. A 121, 141–148 (2015), https://doi.org/10.1007/s00339-015-9397-4

[8] H. Pandey and R.C. Budhani, Structural ordering driven anisotropic magnetoresistance, anomalous Hall resistance and its topological overtones in full-Heusler Co2MnSi thin films, J. Appl. Phys. 113, 203918–203927 (2013), https://doi.org/10.1063/1.4808098

[9] K. Kim, S.J. Kwon, and T.W. Kim, Characterization of Heusler alloy thin film, Cu2MnAl and Co2MnSi, deposited by co-sputtering method, Phys. Status Solidi B 241(7), 1557–1560 (2004), https://doi.org/10.1002/pssb.200304580

[10] Y.  Takamura, R.  Nakane, and S.  Sugahara, Analysis of L21-ordering in full-Heusler Co2FeSi alloy thin films formed by rapid thermal annealing, J. Appl. Phys. 105, 07B109-1–3 (2009), https://doi.org/10.1063/1.3075989

[11] M.A.I.  Nahid, M.  Oogane, H.  Naganuma, and Y. Ando, Study of structure, magnetic and electrical properties of Co2MnSi Heusler alloy thin films onto n-Si substrates, IEEE Trans. Magn. 45(10), 4030–4032 (2009), https://doi.org/10.1109/TMAG.2009.2024320

[12] M.  Kawano, S.  Yamada, S.  Oki, K.  Tanikawa, M. Miyao, and K. Hamaya, Molecular beam epitaxy growth of Co2MnSi films on group-IV semiconductors, Japan. J. Appl. Phys. 52(4S), 884–885 (2013), https://doi.org/10.7567/JJAP.52.04CM06

[13] O.  Gaier, J.  Hamrle, S.J.  Hermsdorfer, H.  Schultheib, and B.  Hillebrands, Influence of the  L21 ordering degree on the  magnetic properties of Co2MnSi Heusler films, J. Appl. Phys. 103, 1039101–1039105 (2008), https://doi.org/10.1063/1.2931023

[14] M. Belmeguenai, F. Zighem, D. Faurie, H. Tuzcuoglu, S.M. Cherif, K. Westerholt, W. Seiler, and P.  Moch, Structural and magnetic properties of Co2MnSi thin films, Phys. Status Solidi A 209(7), 1328–1333 (2012), https://doi.org/10.1002/pssa.201228039

[15] S. Kawagishi, T. Uemura, Y. Imai, K.I. Matsuda, and M. Yamamoto, Structural, magnetic, and electrical properties of Co2MnSi/MgO/n-GaAs tunnel junctions, J. Appl. Phys. 103, 07A703 (2008), https://doi.org/10.1063/1.2830833

[16] T. Ishikawa, S. Hakamata, K. Matsuda, T. Uemura, and M. Yamamoto, Fabrication of fully epitaxial Co2MnSi/MgO/Co2Mn Si magnetic tunnel junctions, J. Appl. Phys. 103, 07A919 (2008), https://doi.org/10.1063/1.2843756

[17] H. Liu, Y. Honda, T. Taira, K. Matsuda, M. Arita, T. Uemura, and M. Yamamoto, Giant tunneling magnetoresistance in epitaxial Co2MnSi/MgO/Co2MnSi magnetic tunnel junctions by half-metallicity of Co2MnSi and coherent tunneling, Appl. Phys. Lett. 101, 132418 (2012), https://doi.org/10.1063/1.4755773

[18] S. Tsunegi, Y. Sakuraba, M. Oogane, K. Takanashi, and Y. Ando, Large tunnel magnetoresistance in magnetic tunnel junctions using a Heusler alloy electrode and a MgO barrier, Appl. Phys. Lett. 93, 112506 (2008), https://doi.org/10.1063/1.2987516

[19] G. Ortiz, A. Garcıa-Garcıa, N. Biziere, F. Boust, J.F. Bobo, and E. Snoeck, Growth, structural, and magnetic characterization of epitaxial Co2MnSi films deposited on MgO and Cr seed layers, J. Appl. Phys. 113, 043921 (2013), https://doi.org/10.1063/1.4789801

[20] A. Hirohata, S. Ladak, N.P. Aley, and G.B. Hix, Si segregation in polycrystalline Co2MnSi films with grain size control, Appl. Phys. Lett. 95, 252506 (2009), https://doi.org/10.1063/1.3276073

[21] M.I. Youssif, A.A. Bahgat, and I.A. Ali, AC magnetic susceptibility technique for the  characterization of high temperature superconductors, Egypt. J. Sol. 23(2), 231–250 (2000).

[22] M.  Balanda, AC susceptibility studies of phase transitions and magnetic relaxation: conventional, molecular and low-dimensional magnets, Acta. Phys. Pol. 124(6), 964–976 (2013), https://doi.org/10.12693/APhysPolA.124.964

[23] E. Garaio, J.M. Collantes, J.A. Garcia, F. Plazaola, S. Mornet, F. Couillaud, and O. Sandre, A wide-frequency range AC magnetometer to measure the specific absorption rate in nanoparticles for magnetic hyperthermia, J Magn. Magn. Mater. 368, 432–437 (2014), https://doi.org/10.1016/j.jmmm.2013.11.021

[24] F.  GÖmÖry, Topical Review. Characterization of high-temperature superconductors by AC susceptibility measurements, Supercond. Sci. Technol. 10, 523–542 (1997), https://doi.org/10.1088/0953-2048/10/8/001

[25] R.  Hein, ac magnetic susceptibility, Meissner effect, and bulk superconductivity, Phys. Rev. B  33(11), 7539–7549 (1985), https://doi.org/10.1103/PhysRevB.33.7539

[26] M. Ohashi, G. Oomi, and I. Satoh, AC magnetic susceptibility studies of single crystalline CeNiGe2 under high pressure, J. Phys. Soc. Jpn. 76, 114712 (2007), https://doi.org/10.1143/JPSJ.76.114712

[27] D.K. Oh, C.E. Lee, J.I. Jin, and S.J. Noh, Design of a sensitive ac magnetic susceptibility measurement system, J. Magn. 2(2), 55–57 (1997).

[28] Y.T. Chen, S.H. Lin, and T.S. Sheu, Effect of low frequency AC magnetic susceptibility and magnetic properties of CoFeB/MgO/CoFeB magnetic tunnel junctions, Nanomaterials 4, 46–54 (2014), https://doi.org/10.3390/nano4010046
