Synthesis of pyrimidines containing hydroxamic acid, 1,3,4-oxadiazole or 1,2,4-triazole moieties as potential HDAC inhibitors

INTRODUCTION

Pyrimidines represent an important group of heterocyclic compounds exhibiting a broad spectrum of biological activity [1–6]. Every year, several pyrimidine-based drugs are introduced to the market [7]. The 1,3,4-oxadiazole and 1,2,4-triazole rings are also important structural units that are widely found in molecular architectures with medicinal applications [8–12]. In addition, compounds with a moiety of hydroxamic acid exhibit antibacterial [13], anti-inflammatory [14], anticancer [15–18] and HDACs inhibitory [19–21] activities. It is also known that pyrimidine-based hydroxamic acids possess diverse biological activities, including HDACs inhibitory activity [22].

Histone deacetylases are a family of enzymes that modulate the acetylation of histones and non-histone proteins. HDACs play an essential role in many biological processes such as gene regulation, transcription, cell proliferation, angiogenesis, migration, differentiation and metastasis [23]. Moreover, HDACs are promising therapeutic targets for cancer treatment, particularly of hematological malignancies, based on the successful clinical approval of five HDACs inhibitors to date: vorinostat, romidepsin, belinostat, panobinostat and chidamide [24, 25]. Three of them have a hydroxamic acid moiety in their structure (Figure).

In this context and continuing our work dedicated to the development of efficient methods for the synthesis of functionalized pyrimidine heterocycles [26–29], we present herein the synthesis of pyrimidines with 1,3,4-oxadiazole or 1,2,4-triazole moiety and hydroxamic acid functional group as potential HDACs inhibitors.

EXPERIMENTAL

Melting points were determined in open capillaries with a digital melting point IA9100 series apparatus (Thermo Fisher Scientific) and are uncorrected. All reactions and the purity of the synthesised compounds were monitored by TLC using Silica gel 60 F₂₅₄ aluminium plates (Merck). Visualization was accomplished by UV light. Column chromatography was performed using Silica gel 60 (0.040–0.063 mm) (Merck). NMR spectra were recorded on a Bruker Ascend 400 spectrometer (400 and 100 MHz for ¹H and ¹³C, respectively) by using residual solvents peaks as an internal standard. Chemical shifts (δ) were reported in ppm. High Resolution Mass Spectrometry (HRMS) analyses were carried out on a Dual-ESI Q-TOF 6520 (Agilent Technologies) mass spectrometer.

Compounds 1 [30], 3, 4 [31], 6 [10], 10 [32] and 2-chloro-N-hydroxyacetamide [33] were prepared following literature methods.

Ethyl 2-(6-methyl-2,4-dioxo-1,2-

dihydropyrimidin-3(4H)-yl)acetate (2)

To a solution of compound 1 (0.364 g, 1.5 mmol) in dichloroethane (15 ml) at 0–5°C 75% m-CPBA (0.76 g, 3.3 mmol) was added portionwise. The reaction mixture was stirred at this temperature for 3.5 h, then a saturated aqueous NaHCO₃ solution (20 ml) was added and stirred for 5 min. The organic layer was separated, the aqueous solution was saturated with NaCl and extracted with dichloroethane. The dichloroethane solutions were combined, dried over Na₂SO₄ and evaporated under reduced pressure to dryness. Yield 0.262 g (82%), m. p. 144–145°C. Ref. [31]: m. p. 144–145°C; ¹H NMR (CDCl₃), δ: 10.36 (s, 1H, NH); 5.61 (s, 1H, CH); 4.64 (s, 2H, NCH₂); 4.21 (q, J = 7.2 Hz, 2H, OCH₂); 2.15 (s, 3H, CH₃); 1.28 (t, J = 7.2 Hz, 3H, CH₃); ¹³C NMR (CDCl₃), δ: 167.9; 162.7; 153.1; 150.7; 100.2; 61.7; 41.3; 18.9; 14.2.

General procedure for the synthesis of compounds 5, 7, 9 and 15

To a suspension of compound 4, 6, 8 or 14 (1 mmol) in abs. ethanol (10 ml) triethylamine (0.111 g, 0.158 ml, 1.1 mmol) was added at room temperature. The reaction mixture was stirred for 5 min, then 2-chloro-N-hydroxyacetamide (0.12 g, 1.1 mmol) was added. The mixture was stirred at reflux for 2 h, then cooled to room temperature. The resulting precipitate was filtered off (compound 15 was formed as an oil). Compound 7 was washed with cold ethanol and dried; compounds 5 and 9 were purified by crystallisation; compound 15 was purified by column chromatography.

N-Hydroxy-2-(5-((6-methyl-2,4-dioxo-1,2-dihydropyrimidin-3(4H)-yl)methyl)-1,3,4-oxadiazol-2-ylthio)acetamide (5)

Yield 0.174 g (56%), m. p. 288–290°C (decomp.) (from isopropanol–water); ¹H NMR (DMSO-d₆), δ: 11.20 (s, 1H, NH); 11.05 and 10.99 (2s, 1H, NH); 10.53 and 10.46 (2s, 1H, OH); 5.51 (s, 1H, CH); 4.62 and 4.46 (2s, 2H, NCH₂); 4.01 (s, 2H, SCH₂); 2.07 (s, 3H, CH₃); ¹³C NMR (DMSO-d₆), δ: 168.7; 166.4; 166.0; 164.0; 163.0 (2); 152.8; 152.1; 151.8; 41.2; 41.1; 29.6; 29.5; 18.6; HRMS calcd for C₁₀H₁₁N₅O₅S: [M + H]⁺ = 314.0554, found: 314.0554.

N-Hydroxy-2-(5-((6-methyl-2-(methylthio) pyrimidin-4-yloxy)methyl)-1,3,4-oxadiazol-2-ylthio)acetamide (7)

Yield 0.098 g (30%), m. p. 220–222°C (decomp.); ¹H NMR (DMSO-d₆), δ: 11.07 (br. s, 1H, NH); 10.51 (br. s, 1H, OH); 6.56 (br. s, 1H, CH); 5.12 and 4.90 (2s, 2H, OCH₂); 3.99 (br. s, 2H, SCH₂); 2.45 and 2.41 (2s, 3H, SCH₃); 2.32 (br. s, 3H, CH₃); ¹³C NMR (DMSO-d₆), δ: 170.2; 168.1 (2); 166.0; 163.8; 153.8; 102.0; 63.3; 29.0; 23.3; 13.5; HRMS calcd for C₁₁H₁₃N₅O₄S₂: [M + H]⁺ = 344.0482, found: 344.0479.

2-(4-Amino-5-((6-methyl-2-(methylthio)

pyrimidin-4-yloxy)methyl)-4H-1,2,4-triazol-3-ylthio)-N-hydroxyacetamide (9)

Yield 0.154 g (43%), m. p. 178–180°C (from ethanol); ¹H NMR (DMSO-d₆), δ: 10.78 and 10.34 (2s, 1H, NH); 9.56 and 9.05 (2s, 1H, OH); 6.54 (s, 1H, CH); 6.06 (2s, 2H, NH₂); 5.46 (s, 2H, OCH₂); 4.15 and 3.79 (2s, 2H, SCH₂); 2.52 (s, 3H, SCH₃); 2.34 (s, 3H, CH₃); ¹³C NMR (DMSO-d₆), δ: 170.7; 168.7; 168.4; 164.6; 152.7; 152.3; 102.5; 57.2; 33.0; 23.8; 13.9; HRMS calcd for C₁₁H₁₅N₇O₃S₂: [M + H]⁺ = 358.0751, found: 358.0747.

N-Hydroxy-2-(5-(4-(6-methyl-2-(methylthio) pyrimidin-4-yloxy)butyl)-1,3,4-oxadiazol-2-ylthio)acetamide (15)

Purified by column chromatography; yield 0.142 g (37%), colourless oil, R_f 0.27 [CHCl₃:EtOAc:MeOH (4:1:1)]; ¹H NMR (CDCl₃), δ: 10.37 (br. s, 2H, NH); 8.98 (br. s, 1H, OH); 6.20 (s, 1H, CH); 4.37 (s, 2H, OCH₂); 4.16 and 3.88 (2s, 2H, SCH₂); 2.88 (s, 2H, CH₂); 2.51 (s, 3H, SCH₃); 2.34 (s, 3H, CH₃); 1.87 (br. s, 4H, 2CH₂); ¹³C NMR (CDCl₃), δ: 171.4; 169.2; 168.4; 167.7; 165.4; 164.3; 102.2; 65.6; 32.6; 28.1; 25.1; 23.7; 22.9; 14.1; HRMS calcd for C₁₄H₁₉N₅O₄S₂: [M + H]⁺ = 386.0951, found: 386.0951.

4-Amino-3-((6-methyl-2-(methylthio)

pyrimidin-4-yloxy)methyl)-1H-1,2,4-triazole-5(4H)-thione (8)

To a suspension of compound 6 (0.27 g, 1 mmol) in abs. butanol (7 ml) 99% hydrazine hydrate (0.08 g, 0.08 ml, 1.5 mmol) in abs. butanol (7 ml) was added dropwise. The reaction mixture was stirred at reflux for 6 h, then cooled to room temperature. The resulting precipitate was filtered off and recrystallised to give 0.11 g (39%) of compound 8, m. p. 169–171°C (from water); ¹H NMR (DMSO-d₆), δ: 13.81 (s, 1H, NH); 6.56 (s, 1H, CH); 5.63 (s, 2H, NH₂); 5.42 (s, 2H, OCH₂); 2.48 (s, 3H, SCH₃); 2.33 (s, 3H, CH₃) ¹³C NMR (DMSO-d₆), δ: 170.3; 168.4; 167.8; 166.6; 147.7; 101.9; 56.9; 23.3; 13.4; HRMS calcd for C₉H₁₂N₆OS₂: [M + H]⁺ = 285.0587, found: 285.0585.

Synthesis of compounds 11 and 12

Method A: A mixture of compound 10 (0.3 g, 1.9 mmol), TBAB (0.061 g, 0.19 mmol) and triethylamine (0.8 ml) was stirred at room temperature for 5 min, then methyl 5-bromopentanoate (0.4 g, 0.3 ml, 2 mmol) was added dropwise. The reaction mixture was stirred at 50°C for 2.5 h, then cooled to room temperature, diluted with cold water (30 ml) and extracted with chloroform. The extract was dried over Na₂SO₄ and evaporated under reduced pressure. The resulting oil was purified by column chromatography using CHCl₃ : EtOAc : MeOH (4:1:1) as an eluent to give 0.281 g (52%) of compound 11, R_f 0.6 and 0.187 g (32%) of compound 12, R_f 0.5.

Method B: A mixture of compound 10 (0.3 g, 1.9 mmol), K₂CO₃ (0.1857 g, 1.34 mmol) and dry dimethylformamide (6 ml) was stirred at room temperature for 10 min, then methyl-5-bromopentanoate (0.4211 g, 0.314 ml, 2.2 mmol) was added dropwise to the suspension. The reaction mixture was stirred at 70°C for 2.5 h and filtered. The filtrate was evaporated under reduced pressure, the resulting oil was purified by column chromatography using CHCl₃ : EtOAc : MeOH (4:1:1) as an eluent to give 0.353 g (65%) of compound 11, R_f 0.6 and 0.117 g (21%) of compound 12, R_f 0.5.

Methyl-5-(6-methyl-2-(methylthio)pyrimidin-4-yloxy)pentanoate (11)

¹H NMR (CDCl₃), δ: 6.20 (s, 1H, CH); 4.35 (t, J = 6 Hz, 2H, OCH₂); 3.67 (s, 3H, OCH₃); 2.52 (s, 3H, SCH₃); 2.37 (t, J = 7.2 Hz, 2H, CH₂); 2.34 (s, 3H, CH₃); 1.80–1.74 (m, 4H, 2CH₂); ¹³C NMR (CDCl₃), δ: 173.7; 171.2; 169.1; 167.5; 102; 65.7; 51.5; 33.6; 28.2; 23.6; 21.5; 14; HRMS calcd for C₁₂H₁₈N₂O₃S: [M + H]⁺ = 271.1111, found: 271.1111.

Methyl 5-(6-methyl-2-(methylthio)-4-oxopyrimidin-3(4H)-yl)pentanoate (12)

¹H NMR (CDCl₃), δ: 6.01 (s, 1H, CH); 4.00 (t, J = 7.6 Hz, 2H, NCH₂); 3.66 (s, 3H, OCH₃); 2.55 (s, 3H, SCH₃); 2.36 (t, J = 6.8 Hz, 2H, CH₂); 2.20 (s, 3H, CH₃); 1.80–1.66 (m, 4H, 2CH₂); ¹³C NMR (CDCl₃), δ: 173.6; 162.2; 161.2; 107.7; 51.5; 43.6; 33.5; 26.8; 23.6; 22.2; 14.9; HRMS calcd for C₁₂H₁₈N₂O₃S: [M + H]⁺ = 271.1111, found: 271.1111.

5-(6-Methyl-2-(methylthio)pyrimidin-4-yloxy) pentanehydrazide (13)

To a solution of ester 11 (0.372 g, 1 mmol) in abs. ethanol (2 ml) 99% hydrazine hydrate (0.195 g, 0.195 ml, 3.9 mmol) was added. The reaction mixture was stirred at room temperature for 48 h, then another portion of 99% hydrazine hydrate (0.195 g, 0.195 ml, 3.9 mmol) was added and stirring was continued for 4 h at 50°C, followed for 24 h at room temperature. The resulting precipitate was filtered off, washed with ethanol–diethyl ether (1:2) and dried. Yield 0.194 g (52%), m. p. 70–72°C; ¹H NMR (CDCl₃), δ: 6.19 (s, 1H, CH); 4.33 (s, 2H, OCH₂); 3.92–2.90 (br. s, 3H, NHNH₂); 2.51 (s, 3H, SCH₃); 2.34 (s, 3H, CH₃); 2.22 (s, 2H, CH₂CO); 1.77 (s, 4H, 2CH₂); ¹³C NMR (CDCl3), δ: 173.6; 171.4; 169.2; 167.8; 102.1; 65.9; 34.1; 28.4; 23.8; 22.1; 14.1; HRMS calcd for C₁₁H₁₈N₄O₂S: [M + H]⁺ = 271.1223, found: 271.1220.

5-(4-(6-methyl-2-(methylthio)pyrimidin-4-yloxy)butyl)-1,3,4-oxadiazole-2(3H)-thione (14)

A mixture of hydrazide 13 (0.158 g, 0.58 mmol), potassium ethyl xanthate (0.098 g, 0.61 mmol) and abs. ethanol (0.85 ml) was stirred under reflux for 12 h. The solvent was removed under reduced pressure, the residue was dissolved of in cold water (2 ml). The obtained solution was acidified with conc. HCl to pH 5. The resulting oil was extracted from the aqueous solution with chloroform. The extract was dried over Na₂SO₄ and evaporated under reduced pressure. The residue was purified by column chromatography using CHCl₃ : EtOAc : MeOH (4:1:1) as an eluent to give 0.121 g (66%) of compound 14, R_f 0,71, m. p. 138–140°C; ¹H NMR (CDCl₃), δ: 12.02 (br. s, 1H, NH); 6.22 (s, 1H, CH); 4.39 (t, J = 5.6 Hz, 2H, OCH₂); 2.77 (t, J = 6.8 Hz, 2H, CH₂CO); 2.52 (s, 3H, SCH₃); 2.38 (s, 3H, CH₃); 1.96–1.83 (m, 4H, CH₂); ¹³C NMR (CDCl₃), δ: 178.7; 171.5; 169.1; 167.8; 164.1; 102.2; 65.5; 27.9; 25.5; 23.6; 22.4; 14.1; HRMS calcd for C₁₂H₁₈N₄O₂S₂: [M + H]⁺ = 313.0787, found: 313.0787.

RESULTS AND DISCUSSION

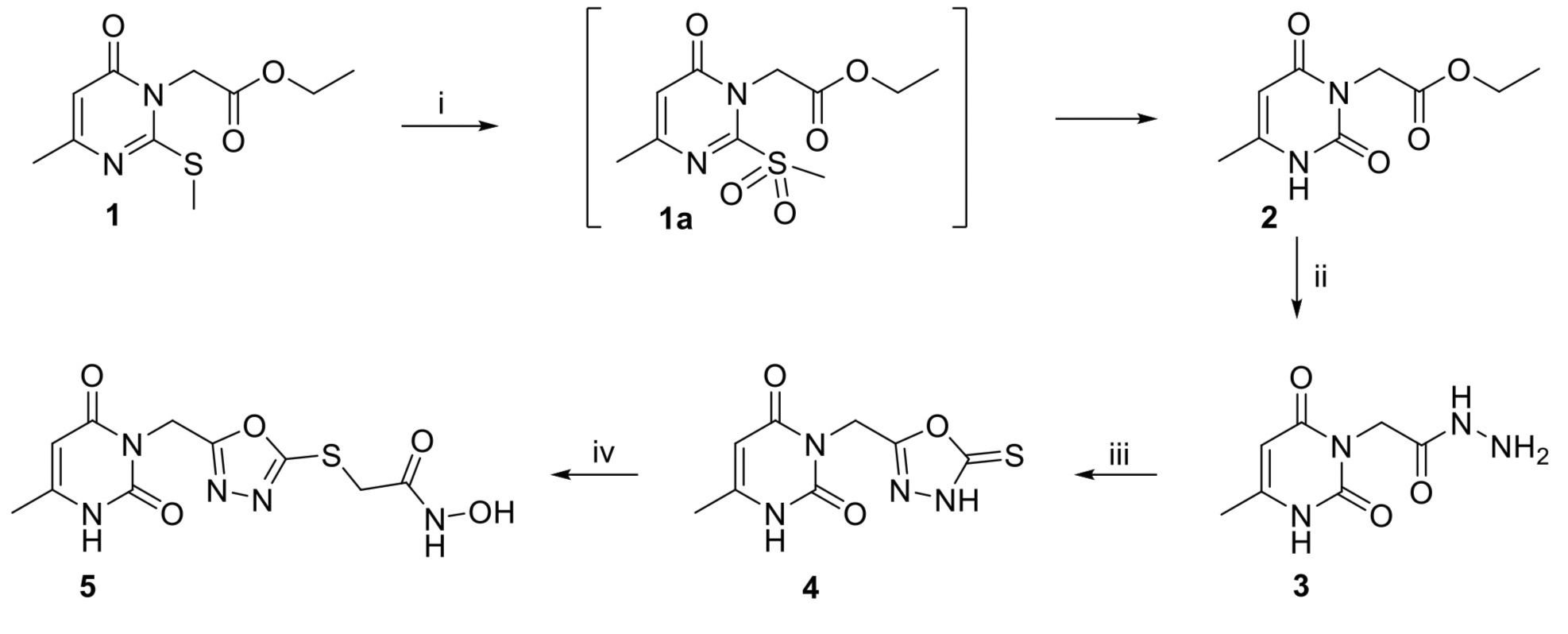

Oxadiazole thione 4, used as a starting compound for synthesis of target compound 5 to study its HDACs inhibitory activity, has been previously synthesised as described in Ref. [31] (Scheme 1).

It should be noted that we have improved the synthesis of compound 2. Previously, this compound was synthesised by stirring ester 1 [30] for 2 days at room temperature in 2 M hydrochloric acid solution [31]. This technique appeared to be inconvenient due to the unpleasant odour and toxicity of methanethiol released during the reaction. To avoid this problem, the methylthio group of compound 1 was oxidised with 75% m-chloroperoxybenzoic acid to a methylsulfonyl group, which was readily replaced by a hydroxy group in the presence of water. Compound 2 by this two-step ‘one pot’ method was obtained in good 82% yield and pure enough to use in the next step. The treatment of ester 2 with hydrazine hydrate in methanol led to the synthesis of hydrazide 3. 1,3,4-oxadiazole-2-thione 4 was prepared by the reaction of hydrazide 3 with potassium O-ethyl xanthate in ethanol. The alkylation of oxadiazole thione 4 with 2-chloro-N-hydroxyacetamide in ethanol in the presence of triethylamine as a base at reflux for 2 h afforded compound 5 in 56% yield. Under the same conditions, the alkylation of 1,3,4-oxadiazole-2-thione 6 [10] with 2-chloro-N-hydroxyacetamide led to the synthesis of hydroxamic acid 7 (Scheme 2).

The treatment of compound 6 with hydrazine hydrate in boiling 1-butanol for 6 h led to the recyclization of the 1,3,4-oxadiazole-2-thione ring to give 4-amino-1,2,4-triazole-5-thione 8. The alkylation of compound 8 with 2-chloro-N-hydroxyacetamide to give hydroxamic acid 9 was carried out under the reaction conditions used for the synthesis of 7 from 6. A synthesis route similar to the previous one was applied to prepare compounds with a longer methylene group bridge between the pyrimidine and oxadiazole rings (Scheme 3).

For the synthesis of these compounds, 6-methyl-2-methylthiopyrimidin-4(3H)-one (10) [32] was chosen as a starting material. For its alkylation with methyl 5-bromopentanoate, the previously elaborated method [10, 34, 35], whereby alkylation of compound 10 with methyl bromoacetate selectively yields the pure O-isomer in the presence of triethylamine as a base and tetrabutylammonium bromide (TBAB) as a phase transfer catalyst, was first tested. Different variations of this methodology were carried out: bromoester was added dropwise to the reaction mixture at 50°C and stirred at this temperature for further 2 h; bromoester was added dropwise at room temperature and stirred at this temperature for further 24 h; bromoester was added dropwise at room temperature for a period of 6 h. However, in all cases the mixtures of O- and N(3)-isomers 11 and 12 in almost the same ratio (3:2) were formed. In the absence of the selective O-alkylation procedure of compound 10, we decided to perform the alkylation reaction of 10 with ethyl 5-bromopentanoate in dimethylformamide using potassium carbonate as a base. It was found that heating compound 10 at 70°C with methyl 5-bromopentanoate for 2.5 h also produced a mixture of O- and N(3)-isomers, but with the higher proportion of O-isomer compared to previous experiments. The ratio of O- to N(3)-isomers was 3:1. Thus, although the alkylation was not selective, this method proved to be the most suitable for the synthesis of O-isomer 11. It should be noted that the above isomers were isolated by column chromatography from the reaction mixture and the ratios of isomers were determined from the ¹H NMR spectra of the reaction mixtures based on the proton signals of their 5-CH, 4-OCH₂ and 3-NCH₂ groups. For example, in the ¹H NMR spectrum of O-isomer 11, a characteristic triplet of the OCH₂ group is observed at 4.35 ppm, while the triplet of the NCH₂ group of N-isomer 12 is shifted towards a stronger field by 0.35 ppm. The treatment of ester 11 with hydrazine hydrate in methanol led to the formation of hydrazide 13, which in the reaction with potassium O-ethyl xanthate gave oxadiazole-2-thione 14. This multi-step synthesis was completed by the addition of a hydroxamic acid fragment: compound 14 was alkylated with 2-chloro-N-hydroxyacetamide in ethanol in the presence of triethylamine as a base to furnish compound 15 in 37% yield.

The inhibitory activity of compounds 5–9 and 13–15 against HDAC4 and HDAC8 isoforms were tested. We have found that only compound 15 showed a weak inhibitory activity against HDAC8 isoform (IC₅₀ = 12.7 μM).

CONCLUSIONS

In summary, for the evaluation of HDACs inhibitory activity, a series of new pyrimidines with 1,3,4-oxadiazole or 1,2,4-triazole scaffold and hydroxamic acid moiety were synthesised. A synthetic route consists of the preparation of (O- and N(3)-pyrimidinyl)alkanoates, their conversion to hydrazides, cyclisation of the latter with potassium O-ethyl xanthate to the corresponding 1,3,4-oxadiazoles and their alkylation with 2-chloro-N-hydroxyacetamide. The preliminary testing of inhibitory activity against HDAC4 and HDAC8 isoforms showed that N-hydroxy-2-(5-(4-(6-(6-methyl-2-(methylthio)pyrimidin-4-yloxy)butyl)-1,3,4-oxadiazol-2-ylthio)acetamide exhibited a weak inhibitory activity against HDAC8 isoform.

ACKNOWLEDGEMENTS

The authors acknowledge prof. dr. Franz-Josef Meyer-Almes and Markus Schweipert (Department of Chemical Engineering and Biotechnology, University of Applied Sciences, Darmstadt, Germany) for the testing of HDACs inhibitory activity.
