Characterization of natural silicate garnets by means of non-destructive testing methods

Chemical composition of garnets

After publication of the data on the chemical composition of nine different silicate garnets (Table 1) [1], we have possessed new samples of silicate garnets and have determined the mean values of their chemical composition (Table 4). The data obtained (Table 4) together with the data of Table 2 were used for further interpretation of the below discussed topics.

Pyrope (Fig. 2) is the only member of the garnet family to always display red colouration in natural samples, and it is from this characteristic that it gets its name: from the Greek for fire and eye. Sometimes it is with an alexandrite effect of green, lilac and blue in daylight and purple and raspberry in artificial light. This variety was first called that by A. Werner in 1803. These garnets are sometimes called Bohemian garnets, after the old German name of western Czech Republic. Pyrope is usually red, pink, orange-red, raspberry, cherry and reddish purple. The luster is glassy. The refractive index is 1.705–1.785, density 3.65–3.87 g/cm³ and hardness 7–7.5 [2]. Pure pyrope has not yet been found, it is found in nature as a mixture with almandine and grossular. After the determination of chemical elements in pyrope, it was found out that the content of magnesium oxide varies from 13.67 to 14.49%, that of aluminium(III) oxide from 22.30 to 23.00% and that of iron(III) oxide from 20.29 to 22.98%, which are characteristic of pyrope and its varieties. In this mineral, silicon(IV) oxide varies from 38.26 to 39.59% and that of calcium oxide from 2.63 to 2.79%.

Table 4. Silicate garnets investigated and their real chemical composition

The name almandine (Fig. 3) comes from the Alabanda area of Turkey, where the ‘alabanda carbuncles’ were mined, described back in Pliny’s (77 years B. C.). The name was granted by Georg Agrikola in 1546. It is purple-red, red, red with a brown tinge and dark red (almost black). Gloss is glass, refractive index 1.78–1.81, density 3.95–4.20 g/cm³ and hardness 7.5 [2]. After the determination of chemical elements in almandine it was found out that the content of aluminium(III) oxide varies from 25.90 to 29.92% and that of iron(III) oxide from 10.45 to 18.82%, which are characteristic of almandine and its varieties. In this mineral, magnesium oxide varies from 6.13 to 7.95%, silicon(IV) oxide from 48.85 to 53.71% and manganese(II) oxide and calcium oxide levels were found to be up to 0.5%.

The name rhodolite (Fig. 4) comes from the Greek rose-like. The colour is reddish pink. The hardness according to the Mohs scale is 7–7.5, the density 3.84 (+/–0.10) and the refractive index 1.760 (+0.010–0.020). The absorption spectra typically have absorption maxima at 504, 520 and 573 nm, and may also have a weak line at 423, 460, 610 and 680–690 nm [3]. Rhodolite is a mixture of pyrope and almandine. After the determination of chemical elements in rhodolite, it was found out that the content of magnesium oxide varies from 10.49 to 16.87% and the aluminium(III) oxide content varies from 30.86 to 35.48%, which are characteristic of rhodolite and its varieties. In this mineral, iron(III) oxide varies from 1.11 to 2.06%, that of silicon(IV) oxide from 50.61 to 54.93% and manganese(II) oxide and calcium oxide levels were found to be up to 0.5%.

Spessartine (Fig. 5) was named after the Spessart area in Germany in 1832. The name was given by F. Biodan. Its beauty is defined primarily by its colour: orange, red-orange and yellow-brown. Gloss is glassy, the refractive index 1.79–1.82, the density 4.12–4.20 g/cm³ and the hardness 7–7.5 [2]. After the determination of chemical elements in spesartine, it was found out that the content of manganese(II) oxide varies from 34.70 to 36.59% and that of aluminium(III) oxide from 21.43 to 23.13%, which are characteristic of spessartine and its varieties. In this mineral, the iron(III) oxide content varies from 0.00 to 0.95%, that of silicon(IV) oxide from 36.65 to 38.33%, that of magnesium oxide from 0.00 to 4.80% and the content of calcium oxide varies from 1.5 to 1.80%.

The blue colour-change garnet (Fig. 6) is the only one known example of blue garnets. This garnet is not of blue colour only, thus, it would not be entirely correct to refer to it as the blue garnet. The most interesting thing is that this garnet can change its colour in the same manner as alexandrite, therefore, the most correct name for this garnet would be the blue colour-change garnet [4]. The test of chemical elements showed that this garnet is a mixture of pyrope and spessartine. Magnesium oxide is characteristic of pyrope, whereas manganese oxide is characteristic of spessartine, and these two, in addition to aluminium(III) and silicon(IV) oxides, form the core of the chemical composition of these elements; this is confirmed by the tests of other authors [5]. In the garnet tested in this work, the content of magnesium oxide varies from 11.18 to 13.43%, that of magnesium oxide from 8.63 to 17.37%, that of aluminium(III) oxide from 22.03 to 25.29% and the content of silicon(IV) oxide from 42.24 to 48.75%. In addition to these elements, the designated content of calcium oxide varies from 2.13 to 2.88%, that of iron(III) oxide from 1.78 to 3.32%, and the content of colour determining chemical elements, i.e. vanadium(III) oxide, varies from 0.38 to 0.50% and that of chromium(III) oxide concentration about 0.37%.

Andradite (Fig. 7) was named by James Dwight Dana in 1868 in honour of José Bonifácio de Andrada de Silva, Brazilian mineralogist, who first described and named what Dana (1868) defined as a subvariety of andradite. d’Andrada had earlier, in 1800, discovered a yellowish-grey mineral from a mine near Drammen, Buskerud, Norway [6]. After the determination of chemical elements in andradite, we found out that the content of calcium oxide varies from 27.64 to 29.45% and that of aluminium(III) oxide from 15.97 to 16.11%, which are characteristic of andradite and its varieties. In this mineral, the content of iron(III) oxide varies from 6.53 to 6.69%, that of magnesium oxide content varies from 1.05 to 1.77% and that of silicon(IV) oxide from 54.28 to 56.45%.

Demantoid (Fig. 8a, b, c) is a variety of andradite. It is characterized by diamond lustre, which gave it the name in the 19th century. The colour varies from cold, very pale green to mid or strong green, not, as a rule, a very livery colour and similar to certain shades of green in tourmaline, zircon, or olivine [5]. After the determination of chemical elements in demantoid, it was found out that the content of calcium oxide varies from 28.23 to 28.75% and that of iron(III) oxide from 13.93 to 15.99%, which are characteristic of andradite and its varieties. In this mineral, the aluminium(III) oxide content varies from 0.99 to 1.38% and that of silicon(IV) oxide from 54.28 to 56.45%. The green colour of this variety is determined by chromium [7].

Topazolite (Fig. 8d, e, f) is a variety of andradite. It was named in allusion to the resemblance with topaz (in colour and transparency) [8]. In the garnet tested, the content of calcium oxide varies from 27.96 to 30.68% and that of iron(III) oxide from 26.15 to 29.84%, which are characteristic of andradite and its varieties. In this mineral, the aluminium(III) oxide content varies from 1.55 to 1.99%, that of silicon(IV) oxide from 36.44 to 40.85%, magnesium oxide varies from 0.00 to 2.95%, titanium(IV) oxide from 0.02 to 0.10% and colour determining chemical elements, i.e. vanadium(III) oxide about 0.21% and the content of chromium(III) oxide varies from 0.01 to 0.05%.

Rainbow garnet (Fig. 9) is called in this way because its surface glows like a rainbow. After the chemical analysis, it was indicated that the content of calcium oxide varies from 32.19 to 32.95%, iron(III) oxide from 23.49 to 24.91%, silicon(IV) oxide from 39.51 to 41.71%, aluminium(III) oxide from 1.71 to 3.64% and manganese(II) oxide from 0.24 to 0.32%. Based on the results of the tests, it was found out that the chemical composition of the rainbow garnet is as that of andradite variety. By comparing the chemical composition of this rare variety with another tested variety of andradite, i.e. demantoid and topazolite, it was found out that the content of manganese(II) oxide in the rainbow garnet varies from 0.24 to 0.32%, whereas in demantoid and topazolite there is none. What is more, the content of iron(III) oxide (from 23.49 to 24.91%) in the rainbow garnet is higher than in demantoid (from 13.93 to 15.99%) but lower than in topazolite (from 26.15 to 29.84%). These differences in the chemical composition determine the difference in colour, and the multi-colourfulness of the rainbow garnet should depend on the surface reflectivity, i. e. irisation.

Grossular (Fig. 10) has most varieties among the garnet group minerals. Its name is derived from the Latin word grossularia (Eng. gooseberry). Since the 1960s, it has been found in gem quality, mainly green [9]. However, this mineral can also be of other colours depending on impurities, even colourless. In the garnet tested, the content of calcium oxide varies from 32.15 to 36.05%, aluminium(III) oxide from 22.76 to 24.48% and silicon(IV) oxide from 39.20 to 39.91%. In addition to these elements, the designated content of iron(III) oxide varies from 0.00 to 1.45%, magnesium oxide from 0.00 to 0.49, manganese(II) oxide from 0.60 to 1.56% and colour determining chemical elements, i.e. vanadium(III) oxide content varies from 0.00 to 1.23% and that of chromium oxide from 0.00 to 0.45%.

In the tested colourless grossular (Fig. 11), the content of magnesium oxide found varies from 1.55 to 1.24%, aluminium(III) oxide from 27.14 to 30.14%, silicon(IV) oxide from 52.95 to 55.75%, calcium oxide from 12.56 to 18.42% and iron(III) oxide about 0.25%. Based on the results of the tests, it was found out that there were no colour-determining chromophores in the mineral, except for 0.25% of iron(III) oxide, which may not affect the colour at all.

Tsavorite (Fig. 12) is a variety of grossular, characterized by green colour. Its name was proposed by Tiffany and Co. President, Sir Henry Platt, after the Tsavo East National Park, Kenya, which lies near the place where tsavorite was originally found. In the dark green tsavorite (Fig. 13a), the content of magnesium oxide was found to vary from 0.58 to 0.64%, aluminium(III) oxide from 21.89 to 21.92%, silicon(IV) oxide from 40.79 to 40.89%, calcium oxide from 35.06 to 35.30%, vanadium(III) oxide from 0.32 to 0.47%, manganese(II) oxide from 0.76 to 0.81% and the content of titanium(IV) found is about 0.39%. In the medium green tsavorite (Fig. 13b), the content of magnesium oxide was found to vary from 0.40 to 0.73%, aluminium(III) oxide from 20.12 to 21.52%, silicon(IV) oxide from 39.62 to 43.90%, calcium oxide from 31.91 to 37.59%, vanadium(III) oxide about 0.35%, chromium(III) oxide from 0.98 to 1.04%, manganese(II) oxide from 0.42 to 0.72% and titanium(IV) oxide from 0.35 to 0.37%. In the light green tsavorite (Fig. 13c), the content of magnesium oxide was found to vary from 0.43 to 0.55%, aluminium(III) oxide from 23.07 to 24.30%, silicon(IV) oxide from 39.95 to 41.13%, calcium oxide from 34.27 to 35.10%, vanadium(III) oxide from 0.00 to 0.26%, chromium(III) oxide from 0.00 to 0.018%, manganese(II) oxide from 0.00 to 1.06% and titanium(IV) oxide from 0.00 to 0.53%. The highest levels of vanadium, manganese and titanium(IV) oxides were found in dark green tsavorite, the lower levels in medium green tsavorite and the lowest levels in light green tsavorite. Comparing the analytical data between tsavorites, it was found that dark green tsavorite contains mainly magnesium(II), calcium(II), vanadium(III), manganese(II) and titanium(IV) oxides. Medium green tsavorite has more chromium than other tsavorites studied.

In light orange grossular (Fig. 13), there are predominantly aluminium(III) and calcium oxides. Having performed the tests, it was found out that the aluminium(III) oxide content varies from 23.91 to 27.84% and the calcium oxide content varies from 18.13 to 28.59%. At different points of the sample testing, it was found out that if the aluminium(III) oxide content increases, the content of calcium and iron(III) oxides become lower. The silicon(IV) oxide content was found to vary from 46.62 to 54.09%. Based on the results of the tests, it is presumed that the content of iron(III) oxide, which determines the colour of this variety, varies from 0.38 to 0.88%.

Hessonite (Fig. 14) is a variety of grossular, which can vary from yellow to brown colour; sometimes this variety is referred to as essonite. Those are honey-yellow and yellow-brown garnets, tending to a reddish orange colour similar to that of spessartine. Its name comes from the Greek word esson, which means inferior. Minerals of this colour are regarded as less valuable. Brown colour hessonite is of the lowest value. Hessonites have a good luster and seemingly a good transparency, but when viewed with a lens, they seem to be undulated, in places of inclusions the view becomes contorted and they become non-transparent. Due to its colour hessonite is also called cinnamon garnet. In the tested orange hessonite (Fig. 14a), there are predominantly calcium and aluminium oxides. The amount of aluminium(III) found during the analysis varies from 22.23 to 23.68%, calcium oxide from 27.73–35.36, silicon(IV) oxide from 41.33–47.25%, iron(III) oxide 2.36–2.41% and manganes(II) about 0.30%. In the tested pink hessonite (Fig. 14b), there are predominantly calcium and aluminium(III) oxides. The amount of aluminium(III) found during the analysis varies from 21.89 to 22.29%, calcium oxide from 27.52–29.53, silicon(IV) oxide from 45.34–47.51%, and manganes(II) oxide from 0.35 to 0.41% and iron (III) oxide 2.35–2.84%.

In the tested cinnamon hessonite (Fig. 15), there are predominantly silicon(IV), calcium and aluminium(III) oxides. The amount of aluminium(III) found during the analysis varies from 20.20 to 36.37%, calcium oxide from 22.26–26.93, silicon(IV) oxide from 33.52–52.46% and iron(III) oxide about 0.64%.

Uvarovite (Fig. 16) usually forms small crystals and groups of joint crystals. In 1832, H. Hess named uvarovite in honor of Count S. Uvarov (1786–1855), Russian statesman and scholar, President of the Russian Academy of Science. Its density was found to be equal to 3.7 [10]. In the uvarovite tested, the content of calcium oxide varies from 2.71 to 4.34%, chromium(III) oxide from 4.77 to 6.58%, aluminium(III) oxide from 43.41 to 44.73%, silicon(IV) oxide from 22.67 to 22.93% and the content of magnesium oxide varies from 14.53 to 17.80%.

Specific gravity (or density) of garnets

Different types of gemstones vary in density, therefore the measurements of the specific gravity can be performed by one of the methods for their characterization. In gemology, the density or specific gravity of a gemstone is computed as the ratio of the density of the material to the density of water. The density is expressed as a number which indicates how much heavier the gemstone is compared to an equal volume of water. The specific gravity (ρ) can by expressed as ratio of the weight of the substance to the volume unit. Since till now in many textbooks the dimension of the specific gravity is expressed in g/cm³, with the aim to make comparison of the data, we have determined the specific gravity of garnets investigated in the same dimension.

It can be noted that the specific gravity of silicate garnets ranges from 3.50 to 4.20 g/cm³ [11]. Our data obtained fit into the mentioned range (Table 5).

According to Table 5, the determined specific gravity of the investigated grossulars was in the range from 3.54 to 3.63 g/cm³ and are in a good agreement with the literature data. The specific gravity of the dark green, medium green and light green tsavorites are 3.62, 3.66 and 3.61 g/cm³, respectively. Probably, different amounts of Mn(II), Cr(III) and V(III) (Table 2) determine the difference in the values of specific gravity. The specific gravity of pink hessonite (3.74 g/cm³) is higher than that of orange hessonite (3.71 g/cm³) and can be accounted for the higher content of Fe³⁺ and Mn(II) in pink hessonite (Table 2). The highest value of the specific gravity was measured for uvarovite (3.77 g/cm³), whereas the lowest value was obtained for hydrogrossular – 3.52 g/cm³.

Table 5. Specific gravity of the investigated garnets

Refractive indexes of garnets

The refractive index is one of the most important signatures of a gemstone. Measuring the refractive index is one of the first steps in identifying the gemstone, though some gems have similar refractive indices and additional tests are required for a definitive identification. The refractive index is the difference between the speed of light in a vacuum and the speed of light in the gemstone. As light passes through the gemstone, it slows down because the gemstone is denser than air. This causes the path of light to change. Refraction is the bending of light as it passes in or out of a gem. The angle of refraction in the stone determines its refractive index. Gemstones with a high refractive index are more brilliant than those with a low refractive one.

Table 6. Refractive indexes of the investigated garnets

It can be noted that the refractive indexes of silicate garnets range from 1.73 to 1.89 [15]. Our data obtained fit into the mentioned range (Table 6).

When comparing the results obtained (Table 6) it is obvious that rhodolite has the highest value of the refractive index, whereas the lowest value was determined for grossular. Other garnets have comparable values of the refractive index. It is notable that due to the limitation of the experimental equipment (see the Experimental part) we have had investigated only samples with the refraction index lower than 1.81. For instance, uvarovite and demantoid have much higher refractive indexes, e.g. 1.865 and ca. 1.91, respectively [5].

Cathodoluminescence investigations

Cathodoluminescence (CL) is an optical and electromagnetic phenomenon in which electrons impacting on a luminescent material cause the emission of photons which may have wavelengths in the visible spectrum. The cathodoluminescence emission from a rock can provide insights into crystal growth, zonation, cementation, chemical replacement, deformation, provenance, trace elements and defect structures. CL presents a valuable technique for fundamental sedimentary, metamorphic and igneous rock studies but also for more applied studies on ores or precious gems [17–22].

When investigating cathodoluminiscence of silicate garnets in the presented work, it was found that pyrope and rhodolite exhibit an intense red luminescence, meanwhile dark green, medium green and light tsavorites also yield red, but less intense and darker luminescence [Fig. 17]. An orange luminescence was observed in the case of orange hessonite. The behaviour of grossular under the influence of cathode beam differs from that of other investigated garnets – it has a characteristic dark brownish-green luminescence. It is generally known that the red luminescence is incident to the presence of Fe(III), whereas the green luminescence is incident to the presence of Mn(II) [21].

When comparing the results obtained with the data on the chemical composition of garnets (Table 4) it can be concluded that the intense red luminescence in the case of pyrope and rhodolite correlates well with the high content of Fe(III) – they have. ca. 20% of Fe₂O₃, as well as with the presence of small amounts of Mn(II), which can intensify the luminiscence. The less intense red luminescence of all investigated tsavorites can be attributed to the absence of Fe(III), but to the presence of V(V) and Mn(II) in the samples (Table 4). The orange luminescence of orange hessonite can be also connected with the presence of Fe(III) (ca. 10 times less than in the case of pyrope and rhodolite) and Mn(II). The cause of brownish-green luminescence of grossular can be in the simultaneous presence of relatively small amounts of Fe(III), Cr(III) and V(V) and, especially, Mn(II) (Table 4).

In addition, the cathodoluminescence images of tsavorites show the seasonality of the garnet growing zone, which is prime in medium green tsavorite (Fig. 17).

Visible spectra of garnets

Generally it is agreed that certain elements cause the colours in certain garnets; likewise, the light absorption lines and bands in garnets are attributable to specific elements. It will be recalled that chromium is responsible for the colours of a number of red and green stones, e.g. the rare chrome-pyrope garnet. In combination with iron it is partly responsible for the colours of demantoid garnet. The absorption lines caused by chromium are mainly fine ones in the red, together with a broad band in the center of the spectrum in the yellow and green. The position, width and intensity of this band largely determines the precise hue of the stone. Iron is another important colour-causing agent in gemstones. There are two categories of iron spectra: that caused by ferric iron (Fe(III)) and that caused by ferrous iron (FeII), e.g. demantoid garnet. In general, the fines and bands caused by iron are found in the blue and green part of the spectrum. Manganese is responsible for the colour in rhodolite and spessartite garnet. Lines attributed to it in the spectra of these stones are centered in the blue, violet and even in the ultraviolet [23–27].

The visible spectra of light absorption of natural silicate garnets were also investigated and discussed in Refs [28–36].

The light absorption spectra of investigated pyralspites differs – the highest intensity is observed for spessartine and pyrope, whereas almandine and rhodolite exhibit lower intensity (Fig. 18). In the visible region, spessartine has the well expressed maximum at 430 nm. Later, the absorbance values decrease continuously going to the side of longer waves. The absorption features of this garnet are due mostly to Mn(II) and Fe(III) (Table 4) – the absorbance peak at 430 nm is related to Fe(III) [3] and the absorbance in the region from 410 to 525 nm to Mn(II) [3, 28, 35]. The spectrum of pyrope is more complicate (Fig. 18). A comparatively broad maximum is seen in the region from 490 to 560 nm, the highest value being at 530 nm. This is a peak related to the presence of both Mn(II) and Fe(III) [27, 31] (Table 4). The less expressed peak is observed at 695–700 nm. Usually in this region of the spectrum Cr(III) absorbs the light [23–27], and the garnet contains some amount of not detectable impurities of this element. The spectrum of almandine shows the decrease in light absorbance going from 400 nm to the side of longer waves up to 635 nm, whereas from 640 nm a weak increase begins. A small peak was found at 720 nm. In contrast to almandine, the increase in intensity of the spectrum of rhodolite is observed going to the side of longer waves beginning from 400 up to 560 nm, where the highest value of light absorbance was observed (Fig. 18). Later, going to the side of longer waves, the values of light absorbance slightly decrease. The spectra of almandine and rhodolite also have colour-causing elements – Fe (III) and Mn(II) (Table 4). The higher content of Fe(III) is responsible for the higher light absorbance values of almandine, compared with that of rhodolite at wavelength of 400–500 nm.

When investigating the spectrophotometric properties of ugrandites, it was found that andradite has the highest intensity in light absorbance (Fig. 19). Its spectrum has a broad maximum in the region from 430 to 500 nm, the maximum being at 470 nm. Beginning from 470 nm to the side of longer waves the light absorbance slightly decreases up to 750 nm, whereas later slightly increases (Fig. 19). The garnet colour is mainly due to Fe(III) [33, 34] (Table 4). The light absorption of grossular in the visible region decreases continuously from 400 to 565 nm with further increase up to 800 nm, no specific peaks were observed (Fig. 19). The first region of the spectra (decrease in absorbance) can be connected with the presence of iron(III) and manganese(II) in the sample [32], whereas the second one with the presence of the same iron(III) together with Cr(III) [24] or iron(III) and manganese [23] (see Table 4). The values of the light absorbance of uvarovite are lowest from the investigated ugrandites (Fig. 19). The broad maximum can be recognized in the region from 460 to 540 nm, the highest value being at 500 nm.

The spectra of two other varieties of grossular – pink hessonite and orange hessonite – differ from that of grossular (Fig. 20). They are much more complicated and have many absorption peaks. The red hessonite exhibits peaks at 425–430, 505, 570 and 690 nm, whereas the orange hessonite displays peaks at 430, 485 and 525 nm. According to the data of our chemical analysis, Fe(III) and Mn(II) are responsible for the light absorbance in both hessonites. The data of literature confirm our conclusion [24].

The light absorption spectra of the dark green and medium green tsavorites display two broad bands centered at about 435 and 610 nm, both bands are well defined. The 435 nm band is more intense than that at 610 nm, which is slightly broader (Fig. 20). These peaks become more intensive with increasing of the V(III) and Mn(II)content [23–26] (see Table 4). The spectrum of light green tsavorite differs from other tsavorites (Fig. 20) – the general intensity is much lower. The broad band from 450 to 550 nm (centered at 510 nm) is observed. The possible origin could be not detectable impurities of Fe(III).

The spectra of andradite and its varieties, rainbow garnet, demantoid and topazolite, are seen in Fig. 21. The intensity of the spectrum of the rainbow garnet is lower than that of andradite (Fig. 21). Two maximum values are observed in the spectrum at 425 and 580 nm. The values of the light absorption of investigated demantoid and topazolite are low, therefore it is difficult to identify specific peaks (Fig. 21). The highest intensity of light absorption for demantoid was determined at 400 nm, and a nonintense peak was found at 660 nm. In the case of topazolite, a non-intense peak was observed at 500 nm. The main colour-causing agent is Fe(III), probably together with Mn(II) (see Table 4).

Raman spectroscopy

Raman spectroscopy provides insights into the molecular structure and short-range ordering of garnets [37–46]. The Raman spectra of different garnets are displayed in Figs 22–25. The vibrational bands of the studied compounds can be divided into several groups: (i) internal vibrations of SiO₄ tetrahedra (symmetric stretching, ν₁; asymmetric stretching, ν₃; symmetric bending, ν₂; asymmetric bending, ν₄), (ii) translation of SiO₄tetrahedra, T(SiO₄), (iii) rotation of SiO₄tetrahedra, R(SiO₄) and (iv) translation of YO₆octahedra (Y=Fe³⁺, Cr³⁺ and Al³⁺), T(M) [42–45]. The symmetric stretching vibrational mode of SiO₄ group (ν₁) appears as a medium-intense band in the frequency region 874–918 cm^–1. The asymmetric stretching mode ν₃ appears as a lower intensity band (several features) at slightly higher frequencies. The deformation vibrational modes of SiO₄tetrahedra ν₂ and ν₄ are visible in the spectral region 420–640 cm^–1. It should be noted that the asymmetric bending mode ν₄ usually displays higher frequency bands [42]. The mode associated with the rotation of SiO₄ tetrahedra R(SiO₄) appears in the lower frequency region 350–420 cm^–1 [42]. Finally, the translation modes T(SiO₄) and T(M) usually can be observed at wavenumbers lower than 340 cm^–1 [42, 43, 45].

The Raman spectra of pyrope and almandine are very similar (Figs 22a, b). The most intense band located at 915–918 cm^–1 belongs to the ν₁ mode of the stretching vibration of SiO₄ group. The second strong band peaked at 348–353 cm^–1 is associated with the R(SiO₄) vibrational mode [44]. The considered compounds slightly differ in their composition; the relative amount of Fe/Mg ions increases going from pyrole to almandine (Table 4). Because Raman bands are well-defined the following correlation can be recognized based on the analysis of shifts of two major Raman bands; the increase in the relative amount of Fe/Mg ions results in the decrease of ν₁ mode frequency and the increase in R(SiO₄) mode frequency (Figs 22a, b). This is related with slight changes in the lattice constant and the local structure of compounds. Similar spectra changes were observed in the series of pyrope-garnet compounds [44]. The replacement of Mg²⁺ ions by Ca²⁺ ions resulted in the decrease in ν₁ and the increase in R(SiO₄) mode frequencies.

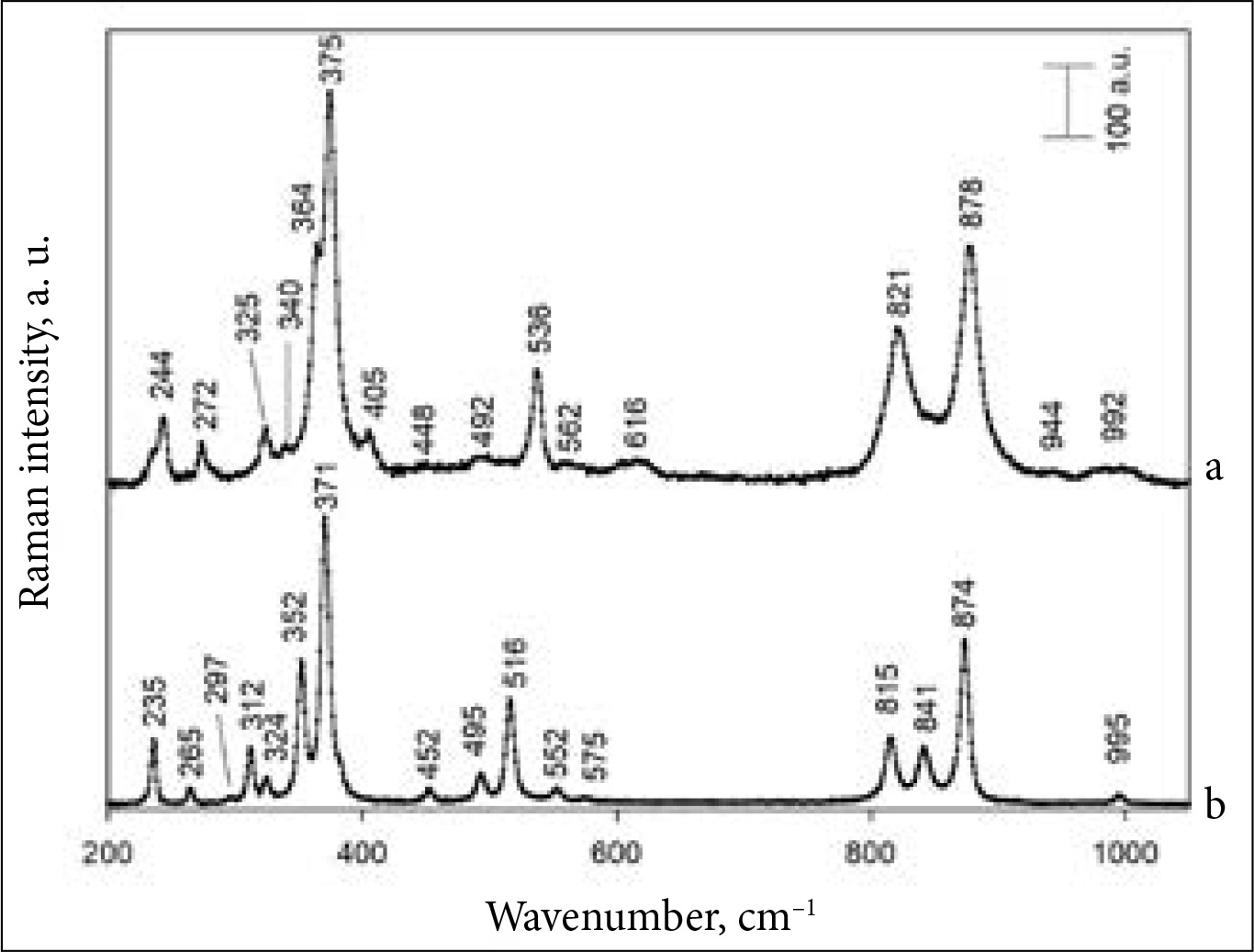

Figures 23a and b compare the Raman spectra of andradite and demantoid. The samples differ in the ratio of Fe/Al ions (Table 4). One can see that the increase in the Fe/Al ratio results in a clear decrease in the ν₄ mode associated with the asymmetric deformation vibration of the SiO₄ group frequency from 536 to 516 cm^–1. In addition, the andradite Raman bands ν₁ (878 cm^–1), R(SiO₄) (375 and 364 cm^–1) and ν₄ are broader compared with similar demantoid bands. This observation indicates that a lower Fe/Al ratio results in a slight disordering of the crystalline structure.

Figures 24a, b and c compare the Raman spectra of grossular, cinnamon hessonite and orange hessonite, respectively. One can see that cinnamon hessonite exhibits narrow bands in a broad spectral region, indicating a high crystalline structure of the studied compound. In contrast, grossular exhibits broadened bands, especially considering the R(SiO₄) and ν₄ modes located at 350 and 524 cm^–1, respectively. In addition, this compound shows a considerably suppressed ν₁ band intensity. This might be related to the presence of a small amount of different cations (Mg²⁺, Cr³⁺ and Mn²⁺) (Table 4) which may induce the structural disordering and presence of defects in the lattice. The appearance of broad features at 595 and 378 cm^–1 along with the relatively narrow bands at 908 and 354 cm^–1 in the case of orange hessonite points to the presence of both amorphous-like and crystalline phases.

Figures 25a, b and c compare the Raman spectra of dark green tsavorite, medium green tsavorite and light green tsavorite, respectively. The peak positions of main bands are very similar, while the relative intensities of the bands differ considerably. The peak positions of ν₁, R(SiO₄) and ν₄ modes are visible in the narrow frequency regions 881–883, 349–350/375 (two bands) and 525/549 (two bands) cm^–1, respectively. A considerable decrease in the relative intensity of the ν₁ band for medium green tsavorite might be related to the presence of Cr³⁺ ions (Table 4) [46]. In addition, the widths of the ν₁ and R(SiO₄) bands were found to be highest for this sample indicating a crystalline structure disordering for this sample. The broad low intensity bands visible at 603–605 and 437–439 cm^–1 in all three samples might be related to the presence of TiO₂ rutile phase [47]. Finally, the broad band near 525 cm^–1 may have contribution from the V₂O₃ phase [48].
