XPS studies on the Mo oxide-based coatings electrodeposited from highly saturated acetate bath

INTRODUCTION

Molybdenum oxide (MoO_x) thin films exhibit interesting structural, chemical, electrical and optical properties [1, 2], and it makes them attractive to use them in a new type of technological devices. Since molybdenum has the oxidation states ranging from +2 to +6, a variety of its oxide compounds exist. The most important and commonly found are molybdenum trioxide and molybdenum dioxide. Particularly, MoO₃ films have an important application in gas sensors [3], energy storage [4], optical switching devices [5] and smart windows [6]. Meanwhile, MoO₂ can be potentially used as an anode material for the solid oxide fuel cells [7]. Thus, an accurate elemental oxidation state determination for the outer surface of a complex molybdenum oxide material is of crucial importance in many science and engineering disciplines, including chemistry, fundamental and applied surface science, catalysis, semiconductors and many others. X-ray photoelectron spectroscopy (XPS) is the primary tool used for this purpose. XPS has been clearly useful in monitoring changes in elemental oxidation states and in stoichiometry during various processes.

Previously, XPS analysis has been used to elucidate the composition of the molybdenum oxide films grown by heating molybdenum metal in the air [8, 9], using pulsed-laser deposition and sputtering techniques [10]. Generally, the Mo oxide films prepared by mentioned techniques are predominantly in the Mo⁶⁺ state [11]. Also in some cases, a small quantity of Mo⁵⁺ at the top oxide film surface can be observed due to the exposure of films to the atmosphere [10]. However, the electrodeposition of Mo oxides from an aqueous solution is an advantageous method since it offers an easy control over the thickness, morphology and extent of oxidation. Moreover, water-based electrolysis is a cost-effective and environment-friendly alternative than those requiring the volatile and/or inflammable solvents [12]. In the light of these advantages, MoO_x thin films have been deposited from aqueous peroxo-polymolybdate [13], sodium molybdate [14] and ammonium-heptamolybdate [15] solutions. In this case, the electrodeposited films consist of mixed valence oxides containing Mo⁺⁴, Mo⁺⁵ and Mo⁺⁶ [16–18]. However, the literature review indicates that the catalytic properties and composition of electrolytic molybdenum oxide films are closely related to electrolyte composition, electrolyte pH and applied potential/current density.

It was found that the catalytic activity decreases in the following sequence: MoO₂ > MoO₃ > Mo [19]. Such findings provide motivation for the development of a simple electrodeposition procedure for preparation of more active metallic molybdenum films that would be combined with its oxides in a synergetic manner to yield a surface which is more active than each of the components separately. On the other hand, metallic molybdenum deposition from aqueous electrolytes is rather a failure, which can be attributed to the rapid uptake of oxygen by Mo and the formation of a mixture of polyvalent molybdenum oxides and/or hydroxides on the cathode during electrodeposition [20]. Nevertheless, molybdenum electrodeposition from aqueous saturated acetate baths is discussed [21–23]. It was reported that Mo coatings obtained from a saturated acetate salt solution at very high current densities (200–400 mA cm^–2) are characterized by an amorphous structure and a low oxygen content on the top of the surface [22]. It was suggested that hydrogen which discharges simultaneously via water electrolysis under the mentioned conditions the cathode accelerates the molybdate ions reduction to metallic Mo in the presence of a high concentration of acetate ions.

The main aims of this work are (i) to investigate the possibility to electrodeposit the coating composed of mixed-valence molybdenum oxides and possibly of metallic Mo, and (ii) to study the electrodeposited coating using the XPS technique.

EXPERIMENTAL

RESULTS AND DISCUSSION

Following the suggested procedure [21], the electrodeposition of Mo-based coating was carried out from a highly saturated acetate bath at –350 mA cm^–2 for 14 h in order to deposit the coating thick enough for instrumental analysis. As the current started flowing through the system, the cathode was covered by a light grey layer and an intense instantaneous foaming of the solution due to the enormous hydrogen evolution has been observed. Moreover, black precipitate was noticed in the plating bath after electrolysis probably because of the conversion of MoO₄^2– to MoO₂. Furthermore, the SEM images show that the deposit is not uniform and the Cu substrate is not covered continuously; various sizes nodules and multiple cracks were detected (Fig. 1a, b). Meanwhile, a more detailed view at a higher magnification revealed a fine and granular surface morphology of the coating (Fig. 1c).

The EDS spectra of the as-deposited coating indicate the presence of a high amount of oxygen (67.4 at.%). Moreover, the XRD pattern shows that under the applied deposition conditions one broad peak at 2Θ≈37° is present (Fig. 2a). Based on PDF cards Nos. 00-005-0506 and 00-005-0452, the following peaks can be attributed to MoO₃ (101) at ~33°, MoO₂ (200) and MoO₂ (111) at ~ 37°.

It is notable that no diffraction peaks of metallic Mo or other crystalline phases were found, except those that match the spectral lines of the Cu substrate. Taking into account an incredibly high amount of oxygen and knowing that Mo exists in a variety of oxidation states, the as-deposited coatings were annealed at a high temperature of 800°C in air atmosphere in order to identify the crystalline oxide phases.

As it was reported, the thermally induced changes in the internal structure of Mo deposit start at 700°C temperature and new phases assigned to (110), (200), (211) and (220) reflections of Mo appear. At the higher temperature, T > 800°C, additional peaks of MoO₂ and MoO₃ start forming [22]. However in our work, as it can be seen from Fig. 2b, even after heat treatment at 800°C in the air atmosphere for 5 h, the Mo structure retains an ‘amorphous-like’ structure and similar to the as-deposited coating crystalline phase peaks are visible only due to the Cu substrate.

In addition, XPS analysis was performed to identify the composition of as-deposited and heat-treated Mo-based films and the characterization was focused on the bonding of Mo to the oxygen. It should be noted that due to the complexity of the Mo 3d spectra, quite wide ranges (i.e. 0.8–1.0 eV) of the binding energies for the same Mo oxides are provided in the literature and in various studies they are different even for the same oxide [25–28]. The importance of the critical assessment and reliance on the published XPS data is clearly demonstrated in Ref. [24] that repeats an undisputedly erroneous interpretation of the Mo 3d peak provided in [22]. In the latter work, without any fitting, the authors mark three apexes of the observed multicomponent Mo 3d peak as Mo⁰ 3d_5/2 (at 228.8 eV), Mo(III) 3d_3/2 (at 232.1 eV) and Mo(VI) 3d_3/2 (at 235.5 eV). The generally accepted value for Mo 3d_5/2 electron binding energy for Mo⁰ metal is 228.0 eV and a significantly higher value of 228.8 eV is probably assigned to the non-careful interpretation of the results published in [21], where authors also report a similarly high Mo⁰ 3d_5/2 value, but provide comments that it is overestimated by 0.8 eV due to the uncompensated charging.

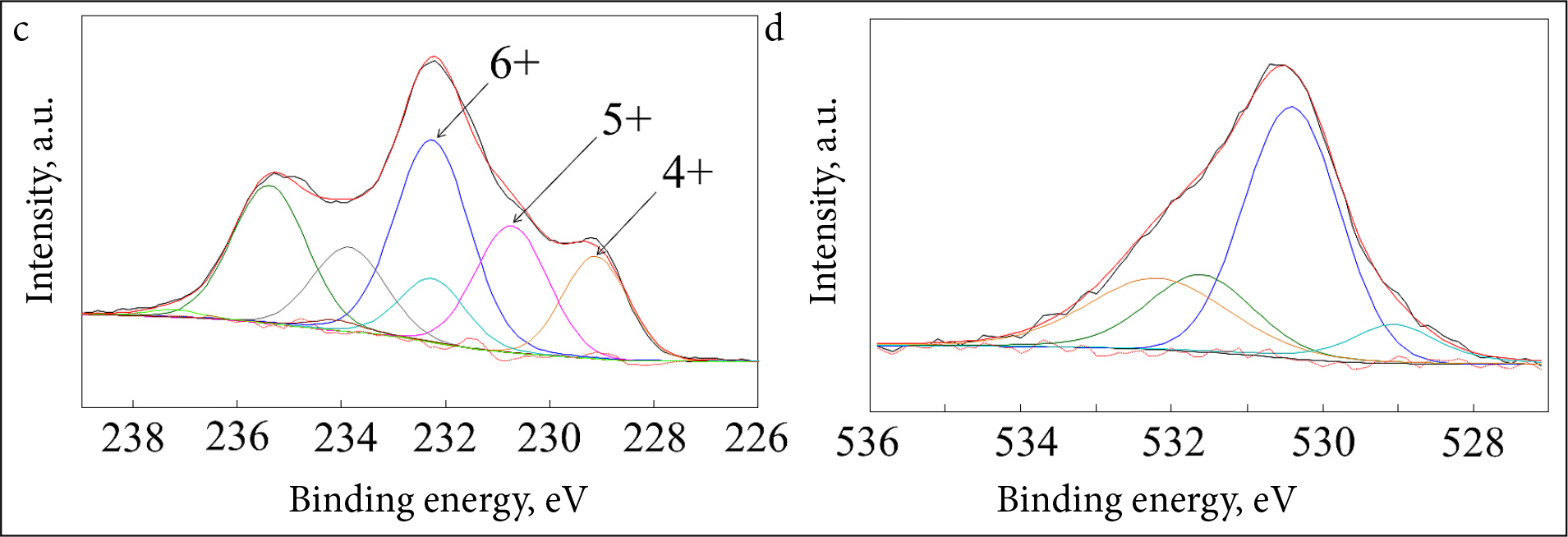

By fitting current Mo 3d XPS data, no components near to the 228 eV binding energy were observed and it was concluded that there was no Mo⁰ metallic phase in the samples. Whereas for the curve fitting of the oxidized Mo forms the model proposed in [29] was used suggesting the use of three oxidation states of Mo, i.e. Mo⁶⁺, Mo⁵⁺ and Mo⁴⁺ (from the highest to the lowest binding energy components) for corresponding components and disregarding the possible energy shifts in the discussion. Accordingly, in this study, at first the as-deposited Mo coating spectra were fitted using three Mo 3d_5/2 components at 229, 230.5 and 232.1 eV that correspond to the oxidation states of Mo⁴⁺, Mo⁵⁺ and Mo⁶⁺ (Fig. 3). Also, higher energy peaks of Mo 3d_3/2 and small satellite lines at 234 and 237 eV can be seen.

The XPS data fitting reveals that the deposited coating comprises species corresponding to various Mo oxidation states with different percentage. Namely, Mo⁴⁺, Mo⁵⁺ and Mo⁶⁺ species are present in the following percentage: 31, ~28 and ~41%, respectively.

After an exposure of the samples to the air for 4 months (see Fig. 4), the amount of Mo⁴⁺ component was significantly lower (around 21%) and the contribution from Mo⁶⁺ increased up to 49%. Such results indicate that lower valent state Mo is predominantly oxidized to MoO₃. While the Mo⁵⁺ percentage remained stable (around 28–29%) and possibly could be considered as an intermediate state during the Mo⁴⁺ transition to Mo⁶⁺. Nevertheless, it is presumed that ~10% of potassium detected in the sample is attributed to the organic substances adsorbed from electrolyte and corresponds to K₂MoO₄ compound, which could contribute to the main peak at 232.1 eV. Thus, it should be concluded that not all oxidation state of Mo⁶⁺ is related to the formation of MoO₃ phase. This is due to overlapping of the binding energies of MoO₃ and K₂MoO₄ compounds (the difference is just around 0.1 eV [30]).

Figure 5 indicates that after the thermal treatment at 800°C molybdenum is predominantly oxidized to the Mo⁶⁺ state. Its fraction is 91% for the as-deposited sample and 84% for the same sample after exposure for 4 months in the air atmosphere. Interestingly, the Mo⁴⁺ and Mo⁵⁺ peaks detected in the as-deposited films appear very similar to those determined in the XPS spectra of the same samples previously exposed to the atmosphere for 4 months.

Meanwhile, after keeping the annealed Mo coating samples up to 4 months in atmospheric air, only one additional Mo 3d_5/2 peak is visible at 230.8–231.1 eV. It can be assumed that this binding energy is attributed to the +5 oxidation state of Mo (MoO_x). On the other hand, water vapour can be absorbed onto the surface in air, thus explaining the possible formation of Mo(OH)_x/Mo type hydroxides, in agreement with previous studies [29].

Other authors reported that the binding energies for the O 1s peaks of MoO₂ and MoO₃ compounds differ only by 0.2 eV and have almost identical full width at half maximum (FWHM) [31]. Supporting this finding, an interpretation determining the MoO₂ and MoO₃ lines in the XPS spectra is quite complicated. Nevertheless, according to the given Mo 3d data, general assumptions can be proposed.

In the recent study, no significant changes were observed in O 1s spectra and in all cases they are dominant by one peak at about 530.3 ± 0.1 eV which becomes more intense after thermal treatment, thus corresponding to the oxidation state Mo⁶⁺. Contrary to the Mo 3d spectra, in this case other spectral components do not disappear. Most likely, the peak at 532.5 eV is attributed to organic contamination and absorbed water molecules, whilst the peak at 531.2 eV corresponds to the MoO₃ phase and the dominant peak is characteristic of the overlapped MoO₂ and K₂MoO₄ lines. Then after heat treatment, we can see that the dominant peak is more expressed (due to crystallization of K₂MoO₄) and narrowed (only one line forms from two overlapped peaks), meanwhile the MoO₃ component is practically unchanged. The weak peak at the binding energy of approximately 529 eV can be related to defective Mo oxide, intercalated water molecules or some kind of organic compound residuals.

CONCLUSIONS

1. The amorphous-like mixed valence molybdenum oxide films were electrodeposited from a highly saturated acetate electrolyte under the galvanostatic mode. The XRD analysis showed that the deposits consisted only of a mixture of MoO₂ and MoO₃ phases without any reflection of the Mo⁰ phase.

2. The presence of Mo oxides was confirmed by XPS analysis. The spectrum exhibited the characteristic Mo 3d_5/2 peaks at 229, 230.5 and 232.1 eV that correspond to the oxidation states of Mo⁴⁺, Mo⁵⁺ and Mo⁶⁺ in the following percentages: 31, 28 and 41%.

3. After the annealing at 800°C, the films remained amorphous-like; however, molybdenum was predominantly oxidized to the Mo⁶⁺ state (91%). No peak at the bonding energy of 228 eV which is characteristic of the Mo metallic phase was observed.

4. This suggests that the electrodeposition from the concentrated acetate solution can be used for the synthesis of a mixture of MoO₃ and MoO₂, but not for the metallic molybdenum phase, as it was reported by previous authors. Nevertheless, the use of such coatings as catalysts in many reactions with the participation of hydrogen or oxygen could be the area of interest for researchers.

ACKNOWLEDGEMENTS

This research has received funding from the Horizon 2020 Research and Innovation Program under MSCA-RISE-2017 (No. 778357) and from the Research Council of Lithuania Project (No. 09.3.3-LMT-K-712-08-0003).
