Static headspace gas chromatographic determination of hexanal as a marker of lipid oxidation in fat-rich food

INTRODUCTION

Lipid oxidation is a  process where unsaturated fatty acids react with molecular oxygen via a free radical mechanism or in a photosensitized oxidation process [1]. As a consequence, intermediate oxidation products hydroperoxides are formed. Later on, they decompose to volatile secondary oxidation products such as alkanes, alkenes, aldehydes, ketones, alcohols, esters, acids and hydrocarbons [1, 2]. Oxidation occurs during storage and especially during heat treatment. It has a negative impact on the quality of fat-rich food because results in rancidity, off-flavours, in the formation of cytotoxic, genotoxic or neurotoxic compounds, can increase propensities to various cardiovascular and metabolic diseases [3–7].

Peroxide value, p-anisidine value, carbonyl value, polar compounds and polymerized triacylglycerols are indexes of the deterioration of edible fats and oils [8]. However, determination of all those indexes is tedious and time consuming. Another approach for oxidation level evaluation is to select a marker the concentration of which is proportional to lipid oxidation degree. Hexanal seems to be a  suitable marker as it is the main secondary oxidation product of linoleic acid which is one of the principle fatty acids of many edible oils [1, 9–13].

One of the  most frequently used methods for hexanal determination is gas chromatography (GC). However, food matrices contain high molecular weight, non-volatile molecules that can remain in the  GC system and result in poor analytical performance. Because of that the compounds of interest should be separated from the  unwanted nonvolatile matrix. Traditional extraction techniques such as liquid extraction or Soxhlet extraction are time consuming. A  perfect choice for hexanal determination is static headspace sampling combined with gas chromatography. Static headspace gas chromatography (SHS-GC) includes isolation of a volatile analyte in the headspace and subsequent automatic delivery of an aliquot of vapour to the GC system. SHS-GC is considered to be the fastest and cleanest method for analysing volatile organic compounds in solid or liquid matrices [14–17].

For SHS extraction of hexanal from solid matrices, water is usually used to disperse the matrix and to prepare calibration solutions of hexanal [1, 18–20]. To promote the transfer of volatile analyte into the headspace, the sample should be heated. However, heating temperature should not be set above the  boiling point of the  solvent, otherwise the  vapour pressure becomes too great and leakages can occur or the vial could even burst. Replacing of water with a less volatile solvent should enable one to increase heating temperature, to drive the equilibrium in favour of the gas phase and thus to obtain lower detection limits of the analyte.

The aim of the work was to select an adequate static headspace extraction solvent and to develop a sensitive, fast, reliable and reproducible SHS-GC technique for determination of hexanal as an oxidation indicator in fat-rich food.

EXPERIMENTAL

Reagents and samples

Hexanal (98%) and benzaldehyde (99%) were purchased from Alfa Aesar (Germany). n-Tetra-decane (99%) was purchased from Sigma-Aldrich (Germany). Hexanal stock solutions (10  g  l^–1) were prepared in n-tetradecane. Working hexanal solutions were diluted with n-tetradecane to a required concentration.

Potato chips ‘Estrella’ (Estrella Baltics, Lithuania) were purchased in a local supermarket. Fried potatoes were purchased in a local restaurant.

Sample preparation

1 g of a grinded sample was placed into a 20 ml headspace vial and 2  ml of a  100  mg  l^–1 benzaldehyde solution in tetradecane was added. The vial was hermetically capped, ultrasonicated for 10 min and subjected for headspace gas chromatographic analysis.

Instrumentation and conditions

Headspace gas chromatographic analysis was performed on a  PerkinElmer Clarus 580 series gas chromatograph (PerkinElmer, USA) equipped with a  flame ionisation detector (temperature 250°C, hydrogen flow 40  ml  min^–1, air flow 400  ml  min^–1, auxiliary gas (helium) flow 30 ml min^–1). The GC system was equipped with the Elite 200 capillary column (30 m × 0.25 mm id, 0.25 µm film thickness) (PerkinElmer, USA). Headspace extraction and sample introduction was performed on a  PerkinElmer Headspace Sampler Turbomatrix  16 (PerkinElmer, USA) equipped with a balanced pressure system. Twenty millilitre headspace vials were used in all experiments. A headspace vial was positioned in the HS autosampler and equilibrated at selected temperature. The  needle temperature and the  transition line temperature was 10°C higher than the headspace vial equilibration temperature. The settings of the headspace sampler were 1 min for pressurization and 0.07  min for injection. Helium was employed as a  carrier gas with 16.7 psi column head pressure. The injector temperature was held at 110°C. The  GC oven temperature was programmed as follows: 40°C for 1 min and from 40 to 250°C at 10°C min^–1.

RESULTS AND DISCUSSION

Headspace method development

A selection of a suitable matrix for hexanal release is one of the  most important steps of the  optimization of hexanal headspace extraction conditions. As it was mentioned above, for hexanal quantification in fat-rich solid samples, water is usually used to extract the analyte and to prepare calibration solutions. However, in the case of water in order to avoid leakages and possible vial burst, equilibration temperature must be lower than 100°C. Moreover, in the case of a volatile solvent, a significant quantity of its vapour is transferred to the headspace. Because of that hexanal is pushed from the headspace to a solution and its concentration in the headspace decreases.

Here we suggest to replace water with n-tetradecane. Tetradecane is less volatile (boiling point is 253°C) thus enables one to apply higher equilibration temperature and at the same time to have a relatively small amount of the solvent vapour in the  headspace. Moreover, more efficient extraction of hexanal from oily solid matrices should be reached as hydrophobic tetradecane easily penetrates a fat-rich matrix.

For static headspace extraction, sample heating temperature is one of the main parameters to be optimized. For this hexanal content was determined at different equilibration temperatures (90–200°C), using 1 ml of the solution of hexanal in n-tetradecane (0.1  g  l^–1) and keeping 10 min equilibration time.

Under these conditions the content of hexanal in the  headspace permanently increased. On the other hand, it was determined that when sunflower oil and olive oil were heated above 110°C temperature, the  hexanal content increased because of the  degradation of linoleic acid that is a precursor of hexanal (Fig. 1). Based on these results the maximum equilibration temperature that does not generate hexanal formation was determined to be 110°C. This temperature was chosen as optimal for further work.

Solvent amount has an influence on the  analytes concentration in the headspace. An increase in solvent volume can improve the extraction of hexanal from a solid matrix. On the other hand, diffusion of the  analyte through a  thick layer of a solvent can require longer equilibration time. It was decided that a reasonable equilibration time should not exceed 30 min. Thus from 0.5 to 5 ml of n-tetradecane containing 0.1  g  l^–1 of hexanal was equilibrated at 110°C temperature for 30 min.

The results demonstrated (Fig.  2) that for the  1.5–5  ml solution volume hexanal peak areas were quite stable and a  slight decrease in the peak area was observed only up to the 1.5 ml liquid phase volume. It can be explained by a high solubility of hexanal in tetradecane. It is known that the concentration of a compound in the headspace vapour phase is proportional to its original concentration in the  sample and the  reciprocal of the  partition coefficient K of the  analyte between the liquid phase and the gas phase added to the phase ratio β [21]. If K is low (the compound prefers the headspace phase), then the value of β (hence the  sample volume) significantly affects the  concentration in the  headspace phase. Contrarily, in the case of a compound with a high partition coefficient the effect of changing the sample volume makes a little difference to the concentration in the headspace vapour. Hexanal is very soluble in tetradecane, thus its partition coefficient between the  tetradecane phase and gas phase is high resulting in a minor effect of the liquid phase volume on the  concentration of the  analyte in the headspace. For further work 2 ml of the liquid phase has been chosen and equilibration time for this liquid phase volume has been determined.

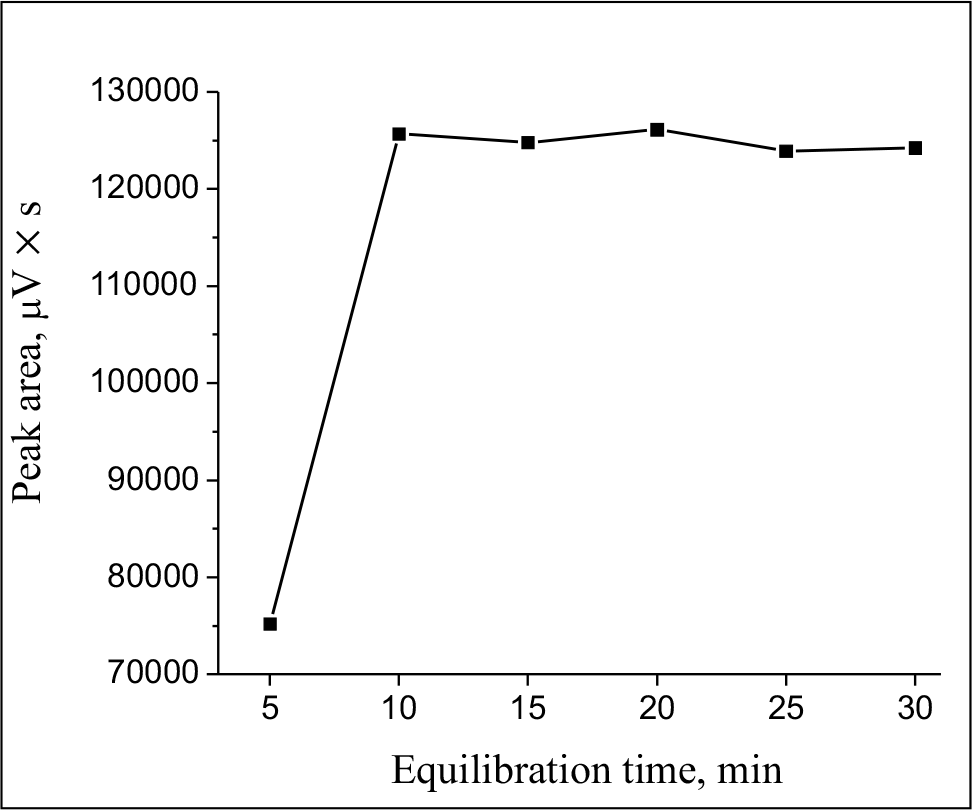

The results presented in Fig.  3 demonstrate that the hexanal peak area has maximized at about 10 min and after remained stable. The  optimum equilibration time was set to 12  min, to allow for possible variations in the  heat transfer into the vial.

Further, a volume of the gas phase injected to GC has been optimized. The more gas phase injected, the bigger peak of hexanal should be observed. On the  other hand, with the  increase of injected gas phase volume, peaks can broaden and tail. We used an equipment supplied by pressure balanced sampling that allows direct control of the  time width of the  vapour plug entering the GC column. Injection time widths from 0.01 to 0.2  min have been examined using a  hexanal solution in n-tetradecane (0.1  g  l^–1). The  results presented in Fig. 4 demonstrate that at low injection times peak area and height proportionally increase with the injection time and the efficiency starts to decrease notably when the injection time exceeds 0.08 min. The peak area correlation coefficient is bigger than 0.99 up to 0.15 min injection time. Peak height linearity is more sensitive to the injection time and at 0.08 min is less than 0.99 (its value is 0.9827). Based on the results, in order to establish the optimal conditions for maximum recovery of volatile compounds without a loss of efficiency, 0.07 min injection time was chosen.

In order to achieve a  better repeatability of the  results benzaldehyde was selected as an internal standard. Under the optimized conditions quality parameters were determined. The calibration curve was drawn with 8 calibration points with three replicate injections and was linear in the concentration range from 25 µg l^–1 to 2 g l^–1 with the correlation coefficient 0.9994. The limit of detection was calculated as three times the baseline noise and was 15 µg l^–1. The relative standard deviation was determined by five replication analysis of the sample with hexanal concentration 0.1 g l^–1 and was 1.2%.

Real sample analysis

The developed SHS-GC method was applied for hexanal determination in potato chips and fried potatoes. 1  g of a  grinded sample was placed into a 20 ml headspace vial and 2 ml of a 0.1 g l^–1 benzaldehyde solution in tetradecane was added. The vial was hermetically capped, ultrasonicated for 10 min and subjected for headspace gas chromatographic analysis.

A  chromatogram of potato chips headspace is presented in Fig. 5. Quantification was carried out using the standard addition method. The results demonstrated that the  concentration of hexanal in the examined potato chips was close to that obtained by other researchers [1, 9] and was 1.2 mg kg^–1 (RSD = 3.8%, n = 3).

Fried potatoes obtained from a local restaurant were also analysed using the  prepared method. The analysis revealed that fried potatoes contained 280 mg kg^–1 of hexanal (RSD = 4.2%, n = 3). Such a big quantity of hexanal suggests that the edible oil for potatoes frying was heated at elevated temperatures for a long time.

CONCLUSIONS

The static headspace gas chromatographic method for hexanal determination was improved by applying n-tetradecane as an extraction solvent and a solvent for calibration solutions of hexanal. Before, for hexanal quantification in fat-rich solid samples, water was usually used to extract the analyte and to prepare calibration solutions. Replacement of water with less volatile n-tetradecane enabled an efficient extraction of hexanal from oily solid matrices, application of higher equilibration temperature, ensured a small amount of the solvent vapour in the headspace and thus low detection limits of hexanal.

At optimized extraction conditions the sensitivity of the suggested method is quite satisfactory to determine hexanal as a marker of edible oil oxidation in fat-rich solid samples such as potato chips and fried potatoes.

Received 12 February 2020

Accepted 2 March 2020

References

1. M.  H.  Azarbad, H.  Jelen, Food Anal. Methods, 8, 1727 (2015).
2. L. Sghaier, J. Vial, P. Sassiat, et al., Eur. J. Lipid Sci. Technol., 118, 1853 (2016).
3. S.  Babaee, A.  Daneshfar, Anal. Methods, 10, 4162 (2018).
4. H. R. Katragadda, A. Fullana, S. Sidhu, Á. A. Carbonell-Barrachina, Food Chem., 120, 59 (2010).
5. N.  Gotoh, H.  Watanabe, R.  Osato, A.  Iwasawa, K. Inagaki, S. Wada, J. Oleo Sci., 54(7), 397 (2005).
6. M. D. Guillen, P. S. Uriarte, J. Agric. Food Chem., 57(17), 7790 (2009).
7. Y. Cui, P. Hao, B. Liu, X. Meng, Food Chem., 233, 77 (2017).
8. Y. Endo, J. Oleo Sci., 67(1), 1 (2018).
9. A.  Sanches-Silva, A.  Rodriguez-Bernaldo de Quiros, J.  Lopez-Hernandez, P.  Paseiro-Losada, J. Chromatogr. A, 1046, 75 (2004).
10. S.  Panseri, S.  Soncin, L.  M.  Chiesa, P.  A.  Biondi, Food Chem., 127, 886 (2011).
11. F.  Giuffrida, P.  A.  Golay, F.  Destaillats, B.  Hug, F. Dionisi, Eur. J. Lipid Sci. Technol., 107, 792 (2005).
12. E.  Beltran, R.  Pla, J.  Yuste, M.  Mor-Mur, Meat Science, 64, 19 (2003).
13. D.  Ghirardello, M.  Bertolino, S.  Belviso, et  al., Postharvest Biol. Technol., 112, 95 (2016).
14. A. Arezou, M. Shuhaimi, A. M. Yazid, M. Rosfarizan, Int. J. Food Prop., 12, 808 (2009).
15. H. Cheng, Crit. Rev. Food Sci., 50, 938 (2010).
16. V. Vičkačkaitė, D. Jasas, Chemija, 27(2), 109 (2016).
17. B. Kolb, L. S. Ettre, Static Headspace–Gas Chromatography: Theory and Practice, 2nd edn., Wiley, New Jersey (2006).
18. A. I. Mandic, I. J. Sedej, M. B. Sakac, A. C. Misan, Food Anal. Methods, 6, 61 (2013).
19. M.  Romeu-Nadal, A.  I.  Castellote, M.  C.  López-Sabater, J. Chromatogr. A, 1046, 235 (2004).
20. T. Wenzl, E. P. Lankmayr, J. Sep. Sci., 24, 885 (2001).
21. An Introduction to Headspace Sampling in Gas Chromatography [http://citeseerx.ist.psu.edu/viewdoc/download;jsessionid=4C927F8F2082BDFED99465B2936847B2?doi=10.1.1.684.7251&rep=rep1&type=pdf].

Vida Vičkačkaitė, Gintarė Pipiraitė, Vilius Poškus, Ingrida Jurkutė, Birutė Bugelytė

RIEBALŲ OKSIDACIJOS INDIKATORIAUS HEKSANALIO NUSTATYMAS RIEBALINGAME MAISTE STATINĖS VIRŠERDVĖS DUJŲ CHROMATOGRAFIJOS METODU

Santrauka

Riebalų oksidacijos indikatoriui heksanaliui nustatyti pasiūlyta statinė viršerdvės dujų chromatografinė analizė. Tetradekanas pasirinktas terpe, į kurią iš mėginio pereina heksanalis. Optimizuota mėginio kaitinimo temperatūra, trukmė, tetradekano tūris ir įleidimo trukmė. Vidiniu standartu pasirinktas benzaldehidas. Optimizuotomis sąlygomis nustatytos metodo analizinės charakteristikos: kalibracinė kreivė tiesinė 25 µg l^–1 – 2 g l^–1 heksanalio koncentracijų intervale, aptikimo riba 15 µg l^–1, santykinis standartinis nuokrypis esant heksanalio koncentracijai 0,1 g l^–1 ir atlikus penkis matavimus yra 1,2 %. Sukurta metodika pritaikyta heksanaliui nustatyti bulvių traškučiuose ir keptose bulvėse.
