An in silico study into the bioacaricide power of the Algerian argan tree against Varroa destructor

INTRODUCTION

Pollinators have an essential role in the environment. The safety of our food, particularly vegetable, fruit, oilseed, and protein crop, depends on animal pollination. Therefore, the  honeybee plays a  very important economic role, not only in relation to its various exploited products such as honey, pollen, and royal jelly (Mekaoui, 2018) but also for its role in maintaining the diversity of plants and our food resources (Rosenkranz et al., 2010).

Varroa  destructor, or the  Varroa mite, the parasitic mite is considered a major pathogenic threat to the honeybee Apis mellifera. It is responsible for varroosis, a  disease that causes the  weakening and loss of colonies, and for numerous damages at the  individual and colony level due to the  association of the parasite with several bee viruses (Rosenkranz et al., 2010). Since the appearance of this disease, several chemical molecules have been available on the  market. But the  misuse of these products generates multiple drawbacks: residues in hive products, possible toxicity to bees, and the development of resistance to certain acaricidal molecules in mites (Elzen et al., 2000; Sammataro et al., 2005).

The argan tree A. spinosa, the only representative of the tropical family of Sapotaceae in Morocco and Algeria, is characteristic of the  Sahara steppe zone (Chevalier, 1953). It protects the soil from desertification and erosion (Alados, El Aich, 2008). This tree is very important economically due to the possibility of using all the  parts of the  tree (oil, wood) and the  uses of its parts (firewood, fodder) (Aboughe-Angone et al., 2008) (El Aich et al., 2007). A. spinosa is a source of biologically active and edible oil from its fruits (Stussi et al., 2005). Its oil is used in the culinary, cosmetic and traditional medicine fields (Charrouf, 2002). It has nutritional, phytochemical (Charrouf, 1984) and pharmacological qualities such as antioxidant (Cherki  et  al., 2005), antiproliferative (Bennani et al., 2007), cardioprotective (Charrouf et al., 2007), and hypolipidemic (Drissi et al., 2004). It is an oil rich in essential polyunsaturated fatty acids, a source of oleic acid and linoleic acid (Rahmani, 2005). It is rich in minor and noble compounds such as tocopherols, polyphenols, sterols, carotenoids, xanthophylls, squalene (Khallouki et al., 2005) and saponins (Guillaume and Charrouf, 2005) which explains its versatility and its efficiency.

The objective of this work is to theoretically test the  bioacaricide power of A.  spinosa for the control of V. destructor by molecular modelling methods.

MATERIAL AND METHODS

Preparation of inhibitors. The present work consists in studying the  interaction and the degree of affinity between two proteins of the Varroa mite: cytochrome c oxidase and acetylcholinesterase with a series of molecules extracted from the essential oils of the fruit part of A. spinosa to have the most stable complex that means the lowest energy level. The plant molecules that are the subject of this study are: oleic acid, palmitic acid, gamma-tocopherol, Schottenol, palmitodiolene (POO). They were chosen according to the highest yield, which is expressed by the quantity of oil (ml) obtained from 100 g of dry plant matter (Akrout, 2004). Their chemical structure is presented in Tables 1, 2, and 3. We downloaded the chemical structure of the inhibitors from the PubChem Drugbank database and performed molecular docking using the PyRx Autodock Vina software (v. 0.8).

We then downloaded and performed the docking with synthetic molecules (Amitraz, Coumaphos, Tau-fluvalinate) and molecules naturally present in honey (formic acid, oxalic acid, thymol) to establish a  comparison between the  three types of molecules (plant molecules, synthetic, and naturally present in honey) to choose the  best Varroa mite inhibitor.

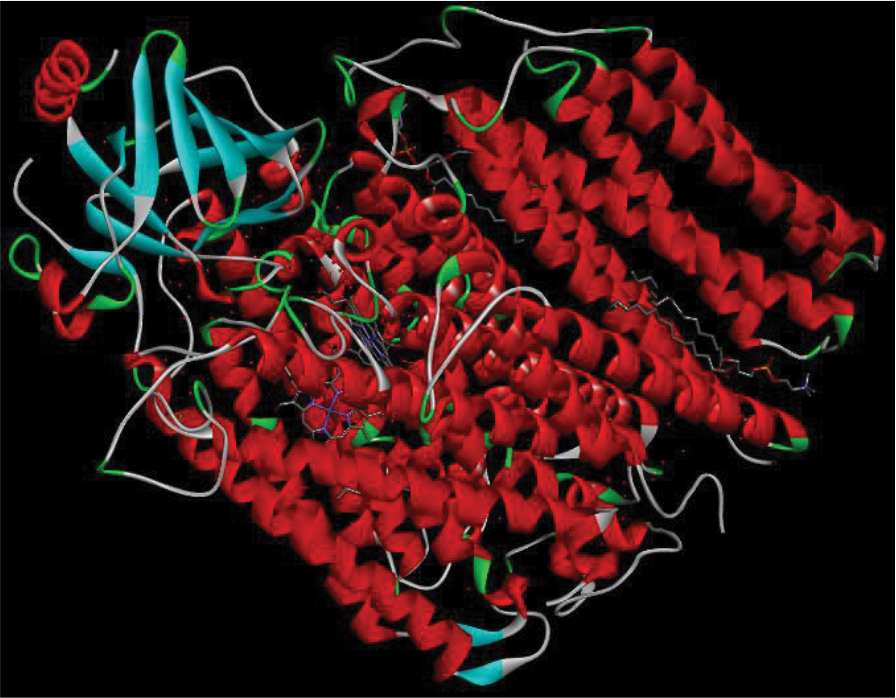

Preparation of the protein. We downloaded the  cytochrome c oxidase protein under the access code 7AU6 from the Protein Data Bank with the resolution of 2.40 Å; composed of four chains and 1180 amino acids in total. The  three-dimensional structure is shown in Fig. 1.

Table 1. Chemical structures of plant molecules extracted from the A. spinosa tree (DrugBank – PubChem Data Source)

Chemical compound	Chemical structure

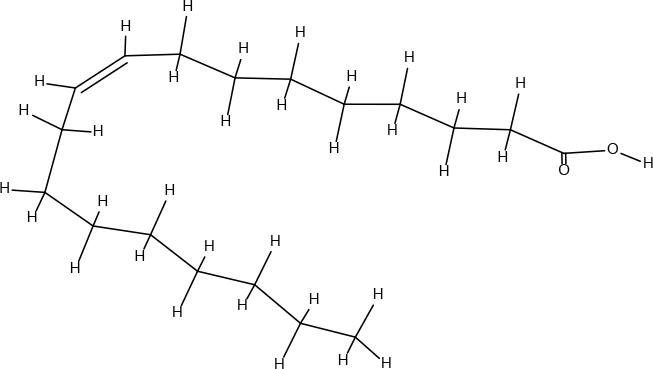

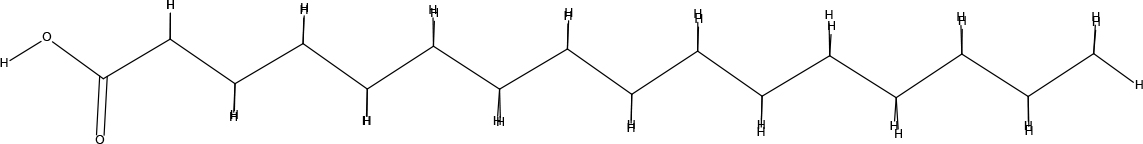

Oleic acid
Palmitic acid

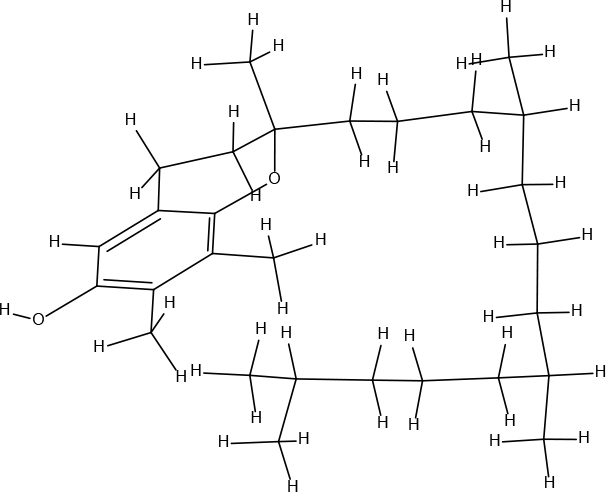

Gamma-tocopherol

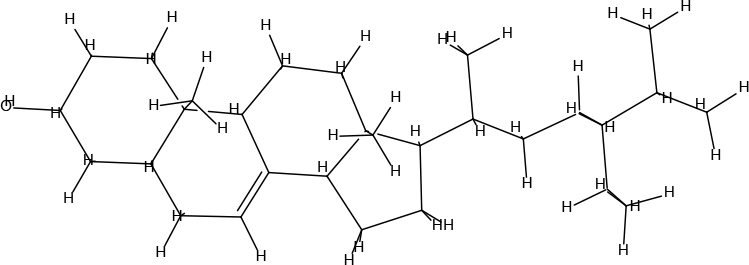

Schottenol

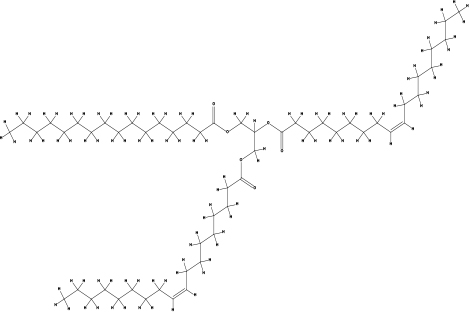

Palmito-diolene (POO)

Table 2. Chemical structure of synthetic molecules (DrugBank – PubChem Data Source)

Chemical compound	Chemical structure

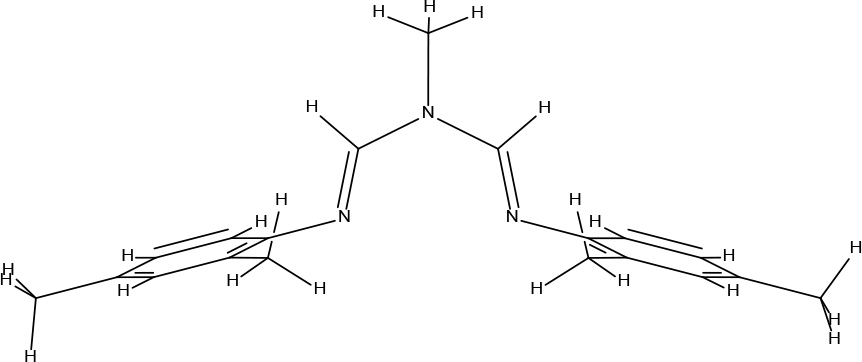

Amitraz

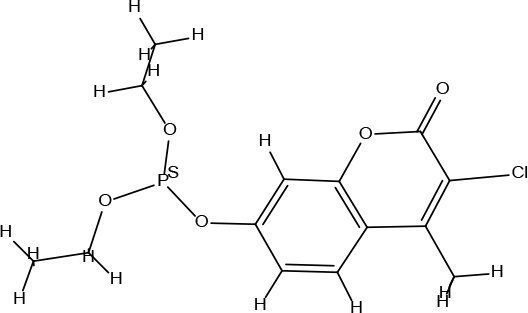

Coumaphos

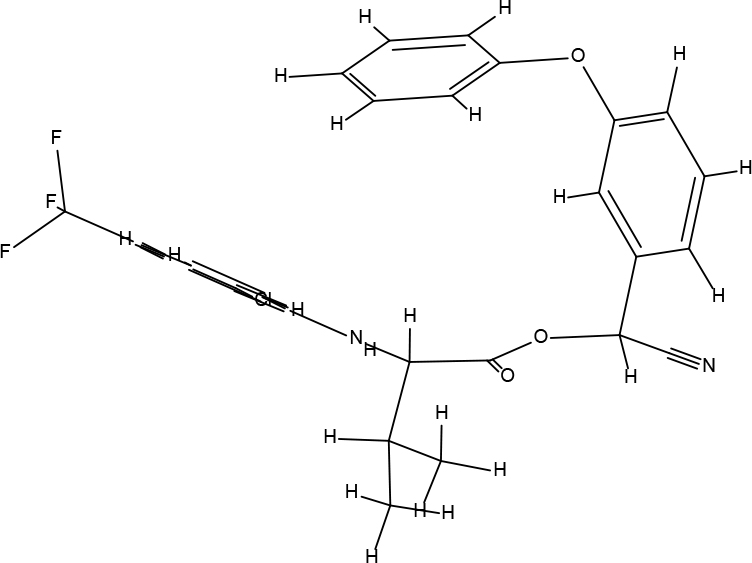

Tau-fluvalinate

Table 3. Chemical structure of molecules naturally present in honey (DrugBank  –  PubChem Data Source)

Chemical compound	Chemical structure
Formic acid
Oxalic acid

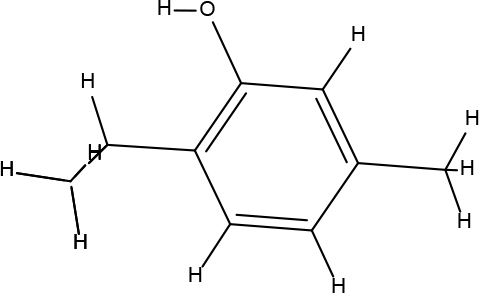

Thymol

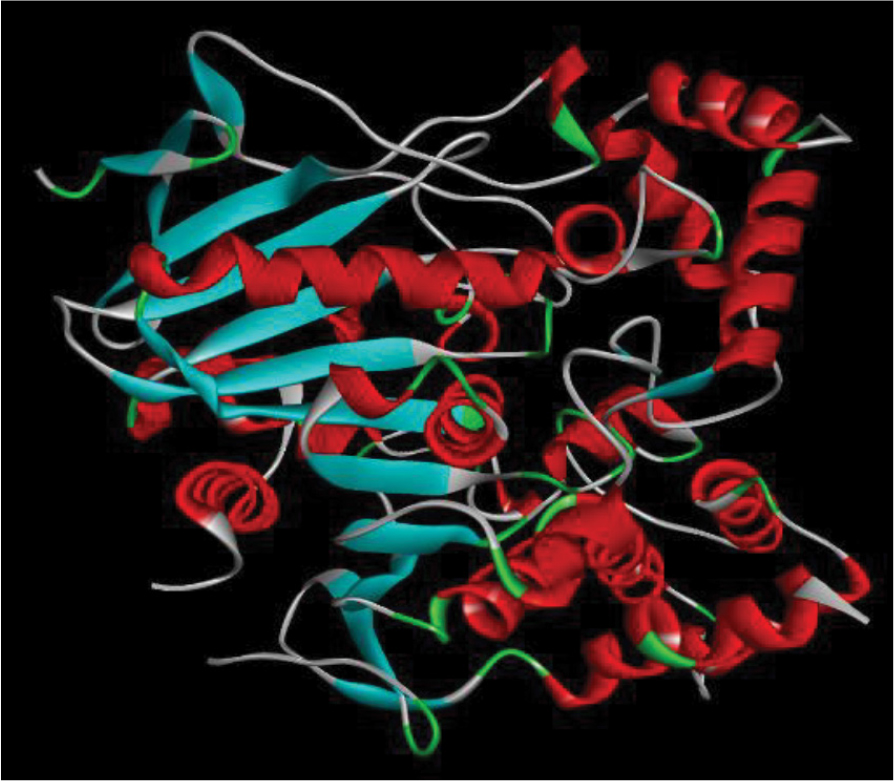

Thus, we downloaded the acetylcholinesterase protein under the access code 1EEA with the resolution of 4.50 Å, composed of a single chain and 534 amino acids. The three-dimensional structure is shown in Fig. 2.

Molecular docking. We used molecular modelling method in this work. It is a  bioinformatics tool that allows the study of biological phenomena at the atomic scale. Molecular modelling is increasingly used to study chemical reactions and protein dynamics (Hercend, 2012). Its purpose is to predict the  structure and reactivity of molecules (Debord). The principle of molecular modelling consists of specifying, from calculations, the position of atoms in space and calculating the energy of the structure generated. The closest possible representation to reality will correspond to a lower energy structure (Paugam, 2008). Molecular modelling involves theoretical computational methods, including molecular mechanics (MM) and molecular docking.

Simulation of molecular dynamics. Simulations of molecular dynamics were performed using Desmond at 100 ns to investigate the binding conformational stability of the protein-ligand complex. The  stability of the  protein-ligand complex was observed to be maintained during the whole 100 ns simulations for compounds based on RMSD (root mean square deviation) shows the  stability of the  docked complex, RMSF (root mean square fluctuation) indicates the conformational flexibility of the complex, and hydrogen bond interactions (Bowers 2006). The details of the procedure are available elsewhere (El Khatabi 2022).

RESULTS

Molecular docking

We performed molecular docking with the PyRx Autodock Vina software (v. 0.8) between the cytochrome c oxidase protein under the access code 7AU6 and the eleven inhibitors; then, between the acetylcholinesterase protein under the access code 1EEA and the same inhibitors (Table 4).

We observed that the 7AU6-schottenol complex released an energy of –11.7 kcal/mol and the  7AU6-Tau-fluvalinate complex released an energy of –11.3  kcal/mol. So, the  7AU6schottenol complex is the most stable since it represents a better affinity with the lowest energy level compared to the others and we note that this plant molecule is the  best inhibitor compared to the other types of molecules. On the other hand, the 1EEA-schottenol complex released an energy of –11.4 kcal/mol which is close to the energy released by the 1EAA-Taufluvalinate complex which is –11.9  kcal/mol. Thus, schottenol inhibits the protein acetylcholinesterase as well.

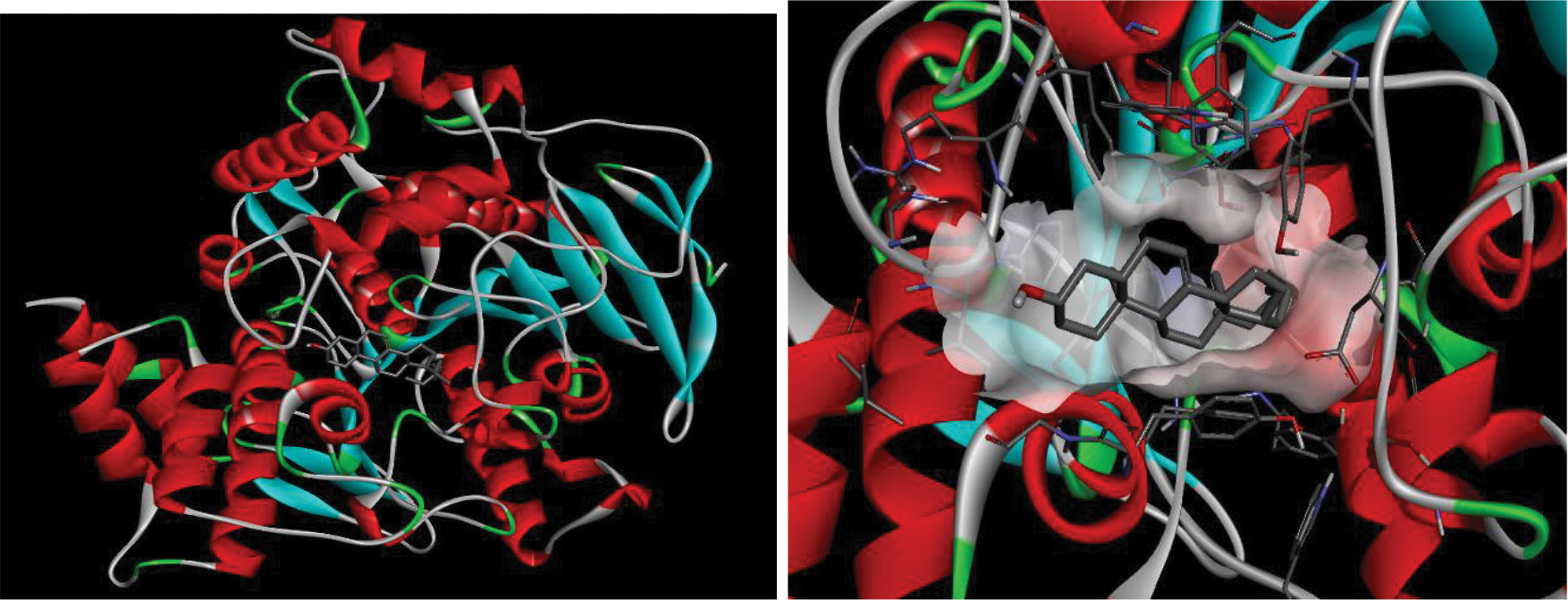

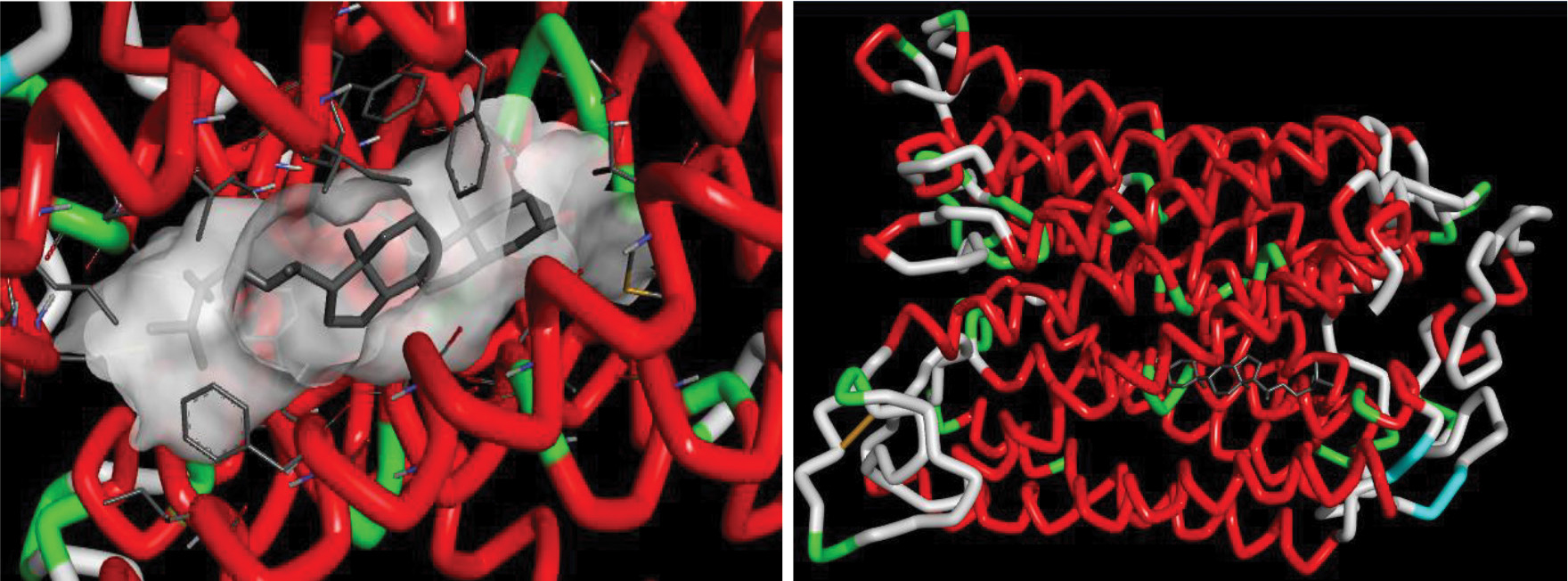

Figs 3 and 4 represent the pose of the plant molecule schottenol in the enzymatic cavity of each of the two proteins.

Molecular dynamics simulation

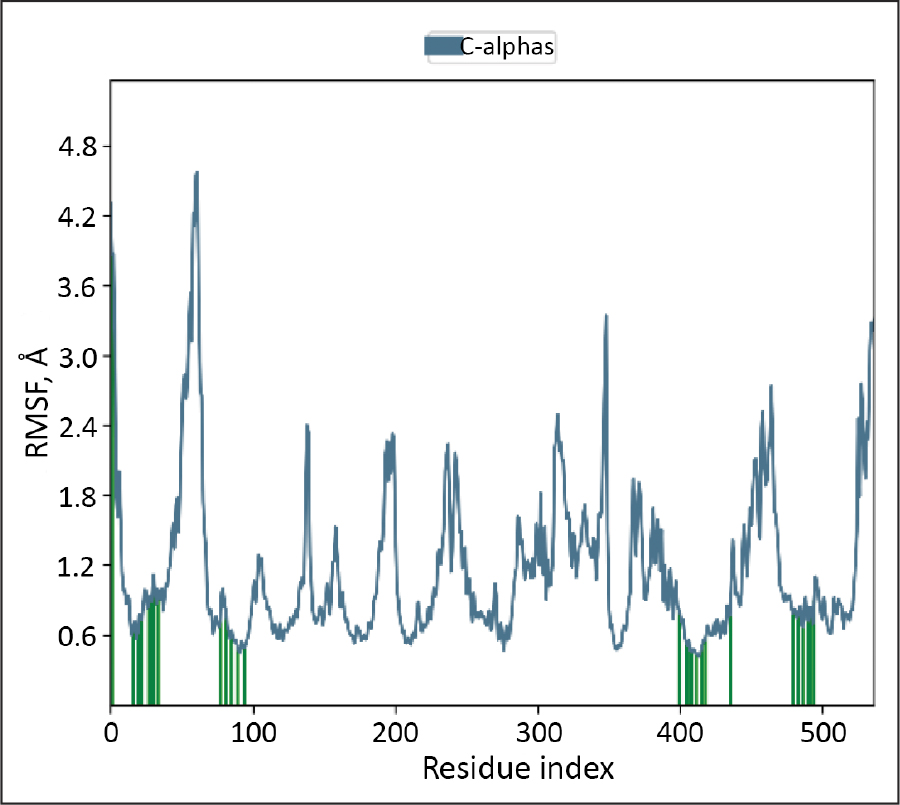

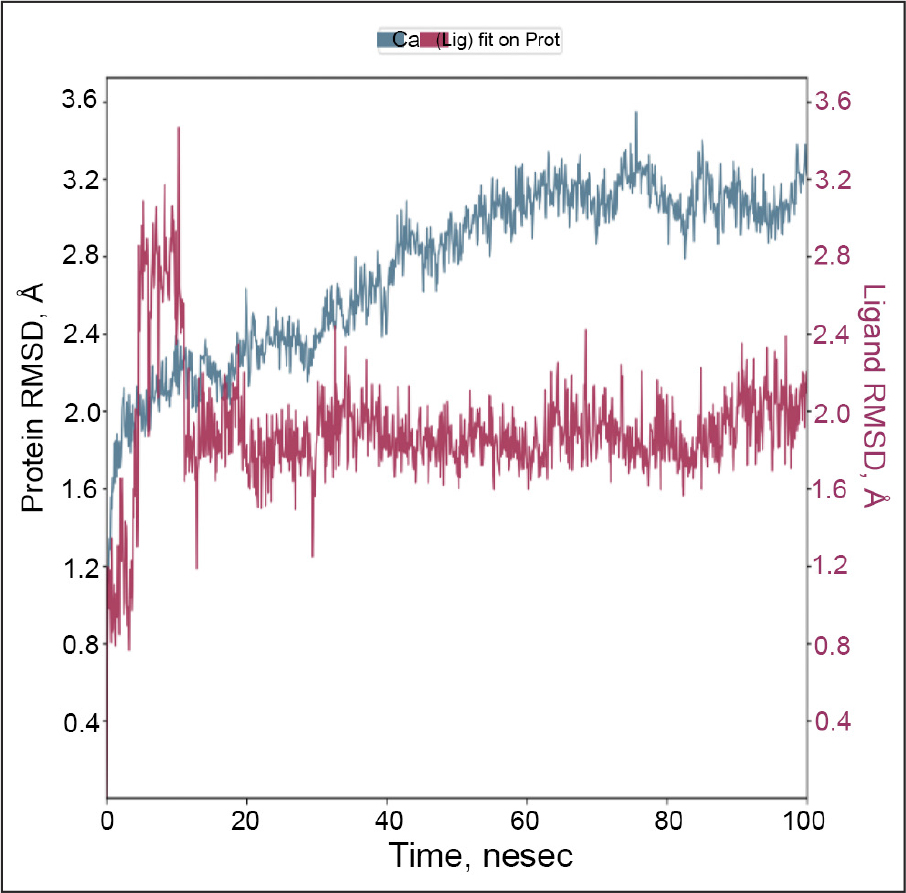

Molecular dynamics was performed on the top hit which contains high energy bonds. Projected conformational changes from the  original structure were shown by RMSD. Structural stability, atomic mobility, and flexibility residues at the time of protein-hit interaction were expressed by root mean square fluctuation (RMSF) values. The RMSD values of the protein-ligand complex are presented in Fig. 5. The RMSD of the complex showed a deviation of about 2 Å up to 15 ns, then there was no significant fluctuation, and the simulation converged. It indicates the stability of the protein-ligand complex (Fig. 5) for RMSF, there was a fluctuation of approximately 3 Å from GLU 68 to CYS 80, and the  remaining structure was stable comparatively and there was not much fluctuation where ligand made contacts with protein (Fig.  6). The  ligand showed significant different types of intermolecular interactions during the entire simulation, including hydrogen bonds, ionic, water bridges, and hydrophobic. The  residues participating in these interactions include PHE 18, ILE 33, LEU 36, PHE 37, SER 46, VAL 47, THR 50, HIS 94, MET 98, VAL 102, ALA 106, PHE 111, MET 416, SER 417, VAL 421, ILE 424, PHE 425, VAL 428, ILE 432, MET 435, MET 452, SER 496, PHE 500, PHE 503, VAL 508, and LEU 511 (Fig. 7).

DISCUSSION

This paper presents the  results of molecular docking and dynamic simulation between proteins of V. destructor and molecules extracted from the essential oils of the fruit part of Argania spinosa in the  first time. On the  other hand, it presents the results of molecular docking and dynamic simulation between proteins of V. destructor and synthetic molecules, then, between proteins of V. destructor and molecules naturally present in honey. V. destructor is still a major threat for apiculture during its long history (Rosenkranz et al., 2010). It causes damage to the morphology and physiology of bees. Glinski and Jarosz (1984) showed in their studies a reduction of the content of total proteins in haemolymph of drone brood parasitised by Varroa mite and the alterations were related to the intensity of the invasion.

V. destructor is also a disease vector (Gliński, Jarosz, 1992). Elzen  et  al. (2000) proved that Varroa mites are not only resistant to fluvalinate, but also to amitraz. Coumaphos was effective against these resistant mites. Sammataro et al. (2005) reported resistance of Varroa mite to all three acaricides (amitraz, coumaphos, and tau-fluvinate). Vilarem et al. (2021) pointed out the necessity to find a sustainable solution for honeybees and in such a way that Varroa mites do not develop any resistance. In their research results, Elzen et al. (2001) showed the efficiency of the biological activity of grapefruit leaf burning residue extract for the detachment of Varroa mite from honeybees, and grapefruit leaf burning residue had any negative side effect on the hive.

Formic acid, oxalic acid, and thymol are molecules naturally present in honey. The  results of molecular docking were not too good compared with plant and synthetic molecules. The synthetic molecules (amitraz, coumaphos, and tau-fluvinate) gave a  good score, especially tau-fluvinate with cytochrome c oxidase (–11.3  kcal/mol) and acetylcholenisterase (–11.9  kcal/mol). Synthetic molecules are toxic for the hive; they have a negative impact on the health of bees, the quality and quantity of honey, and therefore on human health. Our results of molecular docking show that the difference between the score given by plant molecules and that given by acaricides molecules is not big. The score given by oleic acid, palmitic acid and palmito-diolene (POO) is close to the  values given by coumaphos. Amitraz and gamma-tocopherol have practically the  same values; and we note the same for tau-fluvinate and schettenol. Schettenol gave good results and it has many advantages: a  small size and a  minimal weight compared to tau fluvinate (DrugBank – PubChem Data Source). Finally, schottenol is a biomolecule that has no negative impact on the hive and on bee health; due to that, we can propose that A. spinosa has a bioacaricide power to control Varroa mites.

CONCLUSIONS

Our work aimed to test theoretically the  bioacaricide power of A.  spinosa for the  control of the parasitic mite V. destructor by molecular modelling methods, establishing a comparison between these plant molecules and a series of molecules frequently used by beekeepers.

Molecular docking results showed that the  two complexes 7AU6–schottenol complex and 1EEA–schottenol complex represent a better affinity with the  lowest energy level compared to the other complexes.

The molecular dynamics results show that the complexes are stable and they have formed multiple types of bonds.

Therefore, we propose the  schottenol molecule extracted from essential oils of A. spinosa as a possible new inhibitor of V. destructor and confirm the bioacaricide power of this tree for the control of this parasite of honeybees.

References

1. Aboughe-Angone S. Nguema-Ona E, Ghosh P, Lerouge P, Ishii T, Ray B, Driouich A. Cell wall carbohydrates from fruit pulp of Argania spinosa: structural analysis of pectin and xyloglucan polysaccharides. Carbohydr Res. 2008; 343: 67–72.

2. Alados CL, El Aich A. Stress assessment of argan (Argania spinosa (L.) Skeels) in response to land uses across an aridity gradient: Translational asymmetry and branch fractal dimension. J Arid Environ. 2008; 72: 338–49.

3. Akrout A. (2004). Etude des huiles essentielles de quelques plantes pastorales de la région de Matmata (Tunisie). 5.

4. Bank RPD, n.d. RCSB PDB: Homepage [URL https://www.rcsb.org/] (accessed 3.14.22).

5. Bennani  H, Drissi  A, Giton  F, Kheuang  L, Fiet  J, Adlouni  A. Antiproliferative effect of polyphenols and sterols of virgin argan oil on human prostate cancer cell lines. Cancer Detect Prev. 2007; 31: 64–9.

6. Bowers KJ, Chow DE, Xu H, Dror RO, Eastwood MP, Gregersen BA, Klepeis JL, Kolossvary  I, Moraes  MA, Sacerdoti  FD. Scalable algorithms for molecular dynamics simulations on commodity clusters. In Proceedings of the SC’06: Proceedings of the 2006 ACM/IEEE Conference on Supercomputing, Tampa, FL, USA, 2006, p. 43.

7. Charrouf  M. [Contribution of the  chemical study of the oil of Argania spinosa (L.) (Sapotaceae)]. Science Thesis, University of Perpignan, France, 1984. French.

8. Charrouf  Z. [Argan oil, a  prodigious vitality born on the  edge of the  desert]. Esperance Medicale. 2002; 9: 1–8. In French.

9. Charrouf Z, Benomar M, Guillaume D. [Argan oil and the cardiovascular system, a review]. Cœur & vaisseaux. 2007; 4: 50–5. French.

10. Cherki  M, Derouiche  A, Drissi  A, El  Messal  M, Bamou  Y, Idrissi-Ouadghiri  A, Khalil  A, Adlouni  A. Consumption of argan oil may have an antiatherogenic effect by improving paraoxonase activities and antioxidant status: Intervention study in healthy men. Nutr Metab Cardiovasc Dis. 2005; 15: 352–60.

11. Chevalier  A. [Argan, Marmulanos and Walnuts, tree of the future in North Africa, Macaronesia and in semi-desert regions of the globe if they are protected and improved]. Rev Int Bot Appli Agri trop. 1953; 363–4: 165–8. French.

12. Debord  J. [Molecular modeling]. [URL https://www.unilim.fr/pages_perso/jean.debord/model/model.pdf]. French.

13. Drissi A, Girona J, Cherki M, Godàs G, Derouiche  A, Messal  ME, Saile  R, Kettani  A, Solà  R, Masana  L, Adlouni  A. Evidence of hypolipemiant and antioxidant properties of argan oil derived from the argan tree (Argania spinosa). Clin Nutr. 2004; 23: 1159–66.

14. DrugBank. PubChem Data Source. (s.d.). [URL https://pubchem.ncbi.nlm.nih.gov/source/DrugBank] [cited 22 March 14].

15. El  Aich  A, El  Assouli  N, Fathi  A, MorandFehr  P, Bourbouze  A. Ingestive behavior of goats grazing in the Southwestern Argan (Argania spinosa) forest of Morocco. Small Rumin Res. 2007; 70: 248–56.

16. El Khatabi  K, El-mernissi  R, Moukhliss  Y, Hajji H, Rehman HM, Yadav R, et al. 2 Rational design of novel potential EGFR inhibitors by 3D-QSAR, molecular docking, molecular dynamics simulation, and pharmacokinetics studies. Chem Data Collect. 2022; 39: 100851.

17. Elzen  PJ, Baxter  JR, Spivak  M, Wilson  WT. Control of Varroa jacobsoni Oud. resistant to fluvalinate and amitraz using coumaphos. Apidologie. 2000; 31: 437–41.

18. Elzen  PJ, Elzen  GW, Stipanovic  RD. (2001). Biological activity of grapefruit leaf burning residue extract and isolated compounds on Varroa jacobsoni. Am Bee J. 2001; 141: 369–71.

19. Glinski Z, Jarosz J. Alterations in haemolymph proteins of drone honey bee larvae parasitized by Varroa jacobsoni. Apidologie. 1984; 15: 329–38.

20. Gliński Z, Jarosz J. Varroa jacobsoni as a carrier of bacterial infections to a  recipient bee host. Apidologie. 1992; 23: 25–31.

21. Guillaume  D, Charrouf  Z. [Saponins and secondary metabolites of the  argan tree (Argania spinosa)]. Cah Agric. 2005; 14: 509–16. French.

22. Hercend C. 2012. Contribution of molecular modelling to the study of human pathologies: application to the ATP7B transporter and to the 5HT2B receptor. Paris V University, 2012.

23. Kechairi R. [Study of the argan tree of Tindouf: State of play, constraints and prospects for its development]. Doctorat Thesis, University of Tlemcen, Algeria, 2018. French.

24. Khallouki  F, Spiegelhalder  B, Bartsch  H, Owen RW. Secondary metabolites of the argan tree (Morocco) may have disease prevention properties. Afr J Biotechnol. 2005; 4: 381–8.

25. Mekaoui  S. [Study of the  acaricidal effect of two essential oils against the Varroa destructor mite parasite of the honey bee (Apis mellifera)]. Mouloud Maameri university of TiziOuzou: Algeria, 2018, p. 64. French.

26. Msanda  F, Aboudi  AE, Peltier  JP. [Biodiversity and biogeography of the Moroccan argan tree]. Cah Agric. 2005; 14: 357–64. French.

27. Paugam R. [Introduction to molecular modelling]. Institute of Molecular Chemistry and Materials, Paris University: France, 2008, p. 14. French.

28. Rahmani M. 2005. Composition chimique de l’huile d’argane ‘vierge’. Cah Agric. 2005; 14: 461–5.

29. Rosenkranz P, Aumeier P, Ziegelmann B. Biology and control of Varroa destructor. J Invertebr Pathol. 2010; 103: S96–119.

30. Sammataro D, Untalan P, Guerrero F, Finley J. The resistance of varroa mites (Acari: Varroidae) to acaricides and the presence of esterase. Int J Acarol. 2005; 31: 67–74.

31. Stussi  I, Henry  F, Moser  P, Danoux  L, Jeanmaire C, Gillon V, et al. Argania spinosa – How ecological farming, fair trade and sustainability can drive the research for new cosmetic active ingredients. SOFW J. 2005; 131: 35–46.

32. Vilarem C, Piou V, Vogelweith F, Vétillard A. Varroa destructor from the laboratory to the field: control, biocontrol and IPM perspectives – A Review. Insects. 2021; 12: 800.

Amina Belhadji, Imane Abdelli, Faiçal Hassani, Sohayb Bekkal Brikci, Sarra Ghalem, Hafiz Muzzammel Rehman, Réda Kechairi

ARGANO MEDŽIO KAIP BIOAKARICIDO POVEIKIO VARROA DESTRUCTOR ERKĖMS TYRIMAS IN SILICO (ALŽYRAS)
