Influence of laser irradiation on the growth and biosynthetic indicators of basidiomycete strains of carotenoid synthesis

INTRODUCTION

One of the most popular biologically active substances is carotenoids. They are natural organic pigments, polyene isoprenoids of the terpene series, which are widespread in wildlife (Yiguang et al., 2018).

It has been revealed that carotenoids can prevent manifestations of atherosclerosis, arthrosis, cataracts, and infections, as well as related diseases of the heart and blood vessels. In addition, they have anticarcinogenic, immunomodulatory, anti-inflammatory, and antioxidant effects (Gammone et al., 2015; Bee et al., 2019).

Despite a  range of positive effects of carotenoids on the body with a chronic lack of these pigments in the daily diet, a number of pathological processes occur in the body (Moore et al., 2011). That is why the  development of biologically active additives, perfumes, and cosmetics containing carotenoids has become such a popular and demanded direction for studies.

In the modern world, an active search for new sources of these biologically active substances is conducted (Torregrosa-Crespo  et  al., 2018). Nowadays, however, the knowledge of the qualitative and quantitative content of carotenoids in basidiomycetes, their mycelia, and culture filter during their cultivation is insufficient, which necessitates further screening work in this direction (Veligodska, 2012).

Among medicinal mushrooms, one of the most perspective fungi is the basidiomycete L.  sulphureus, a  producer of carotenoids (Velygodska et al., 2016). This fungus can be widely used to obtain preparations providing antioxidant protection (Becker, 1988).

Based on this, the aim of this research was to study the ways to increase the biosynthetic activity of the  carotenoids of basidiomycetes L.  sulphureus by searching for the  most productive strain, determining optimal cultivation conditions, and studying the influence of various light emission spectra.

MATERIALS AND METHODS

Pure culture method. Mushrooms were isolated in pure culture and observed in  vitro. The  isolation of pure cultures of basidiomycetes was carried out by seeding a sterile piece (5 × 5 mm) of vegetative mycelium on culture media.

The presence of pure cultures makes it possible to evaluate the  dependence of fungal growth on environmental factors (temperature, light sources) and to describe morphogenetic features.

Determination of growth characteristics. For determination of the  linear growth, we measured the  diameter of the  colony (from the  seeding site to the  end of the  mycelial growth zone) in Petri dishes, at certain intervals. For this aim, the studied fungus was sown in the centre of a dense nutrient medium surface (Becker, 1988). The diameter of the colony was measured in two mutually perpendicular directions at certain intervals of time (10, 15, 20 days). The number of measurements depended on the growth rate of the fungus.

Determination of carotenoid content. For determination of the total carotenoid content, the  mycelium was homogenized by grinding in a sterile mortar and extracted with acetone in a 1:10 ratio. The mixture was centrifuged at 2000 g for 10 min. The number of carotenoids was determined per unit mass (g in mycelium) and per unit volume (cm³ in the culture filtrate) by the  spectrophotometric method and was calculated according to the Wettstein method (1957).

Chlorophyll content was calculated by the formula:

Ca (mg/L)  =  9.784  ×  E662  –  0.990  × E644 (1),

Cb (mg/L)  =  21.426  ×  E644  –  4.650  × E662 (2),

C(a+b) (mg/L)  =  5.134  ×  E662  +  20.436  × E644 (3),

Carotenoids content was calculated by the formula:

Carotenoids (mg/L) = 4.695 × E440 – 0.268 × C(a+b) (4),

where: E662, E644 and E440 are the results of measuring chlorophyll colour at wavelengths of 662 nm, 644 nm, and 440 nm;

Ca, Cb, Ca+b are, accordingly, chlorophyll content a, b, and total.

Then, the pigment content in the test material was calculated (Agarwal, Rao, 1998):

where: A – the pigment content in the prototype;

C  –  the  pigment concentration found by the Wettstein formula, mg/dm³;

V – the volume of the extract, cm³;

n – the sample of the prototype, g;

1000 – the coefficient for conversion of pigment concentration to 1 cm³.

Studying the  effect of various radiation spectra. To study the effect of laser irradiation on the  growth and morphological and cultural characteristics of the  fungus L.  sulphureus, the mycelium of strain Ls-0917 was cultured for seven days in a Potato Glucose Agar in standard Petri dishes (9  cm in diameter). Subsequently, using a  sterile steel tube, 5  mm diameter mycelial disks were cut from the  uterine culture. Before plating on the substrate, they were irradiated with LED lasers (Reshetnyk et al., 2019). Four types of irradiation were used in the study: the  control culture grown without irradiation, while three others had a single exposure to laser light for 15 s (red, blue, and green spectrum). We used the following LED lasers: BRP-3010-5 with 635  nm red wavelength radiation, BBP-3010-5 with 405 nm blue wavelength radiation, and BGP-3010-5 with 532 nm green wavelength radiation (BOB LASER Co., China). The power of each laser was 100 mW. The density of the energy of laser irradiation was calculated by Vakarchuk’s formula (Vakarchuk, 2012).

The energy dose of radiation (the energy of light incident on a unit area) was determined as the product of energy density and exposure time. In each variant of the experiment, radiation energy was 77.3  mJ/cm². This value was selected according to the  results reported in the literature (Poyedinok et al., 2015). Unirradiated mycelium was used in the control culture. Cultivation was carried out at a temperature of 27 ± 1°C until the Petri dish in the thermostat was completely overgrown with mycelium.

To assess the growth of fungal cultures, we studied and analysed the  dynamics of the  increase in colonial radial growth depending on the time of cultivation.

RESULTS AND DISCUSSION

The dynamics of biomass and carotenoid accumulation were screened in three strains of basidiomycetes L.  sulphureus: Ls-0917, Ls-0918, Ls-0919.

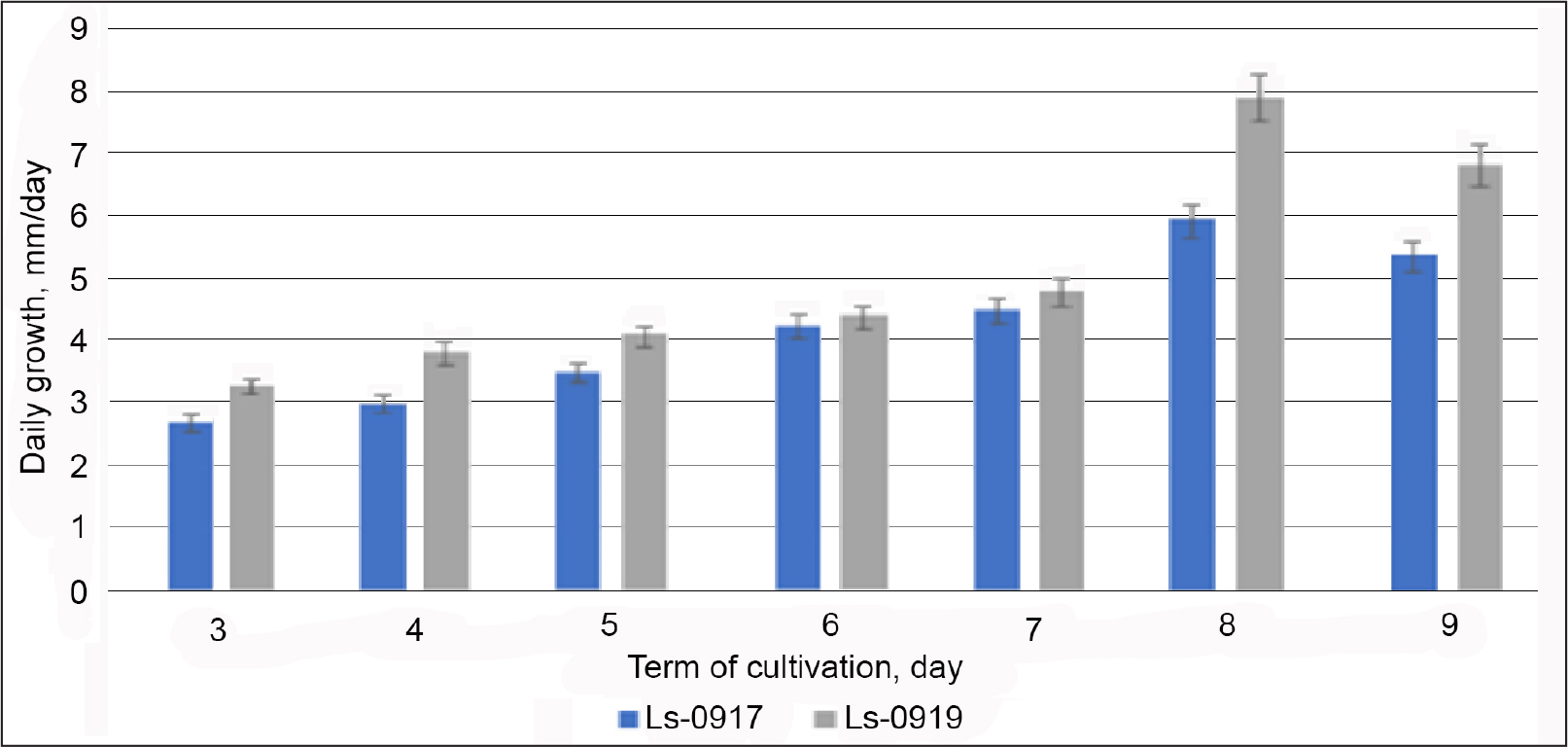

According to the  evaluation of the  daily growth of mycelium, the best results were demonstrated by strain Ls-0919 with its maximum value on day 8 of cultivation. This period also corresponded to the  largest daily increase of strain Ls-0917 (Fig. 1).

The maximum growth rate on Potato Glucose Agar (PGA) was observed for the  cultivation of strain Ls-0919. Strain Ls-0917 displayed somewhat positive results, which were only 8–10% lower than the culture of Ls-0919 (Fig. 1).

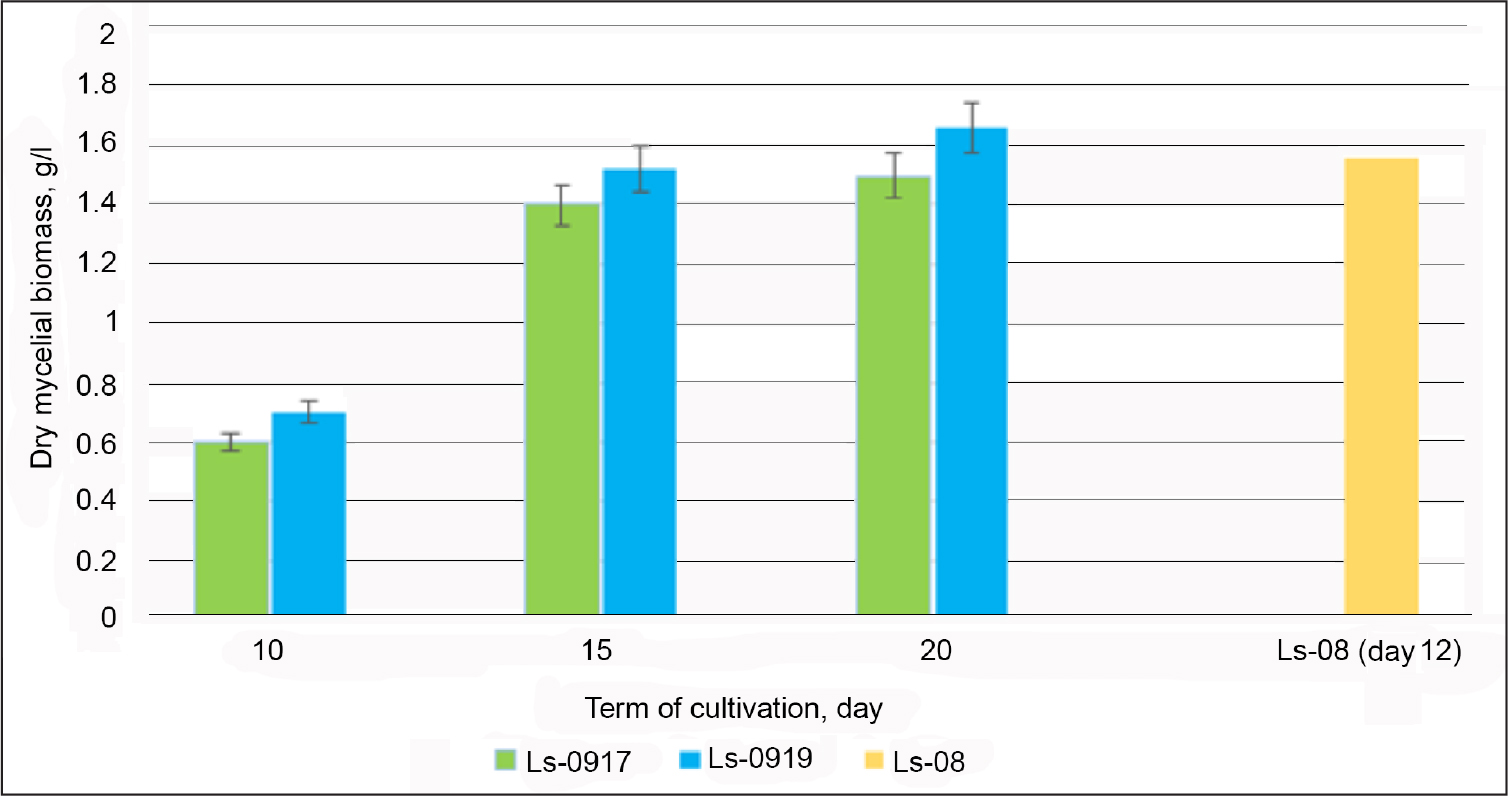

As can be seen the maximum accumulation of biomass was observed on day 15 of cultivation for both strains. Furthermore, accumulation stopped by day 20 of cultivation. This is likely due to the depletion of a certain amount of nutritional resources (Fig.  2). This study reveals that cultivated strains demonstrate the same result as the previously studied strain-producer Ls-08 (Velygodska et al., 2012).

The study of carotenoid content illustrates that cultures can accumulate them throughout the cultivation period.

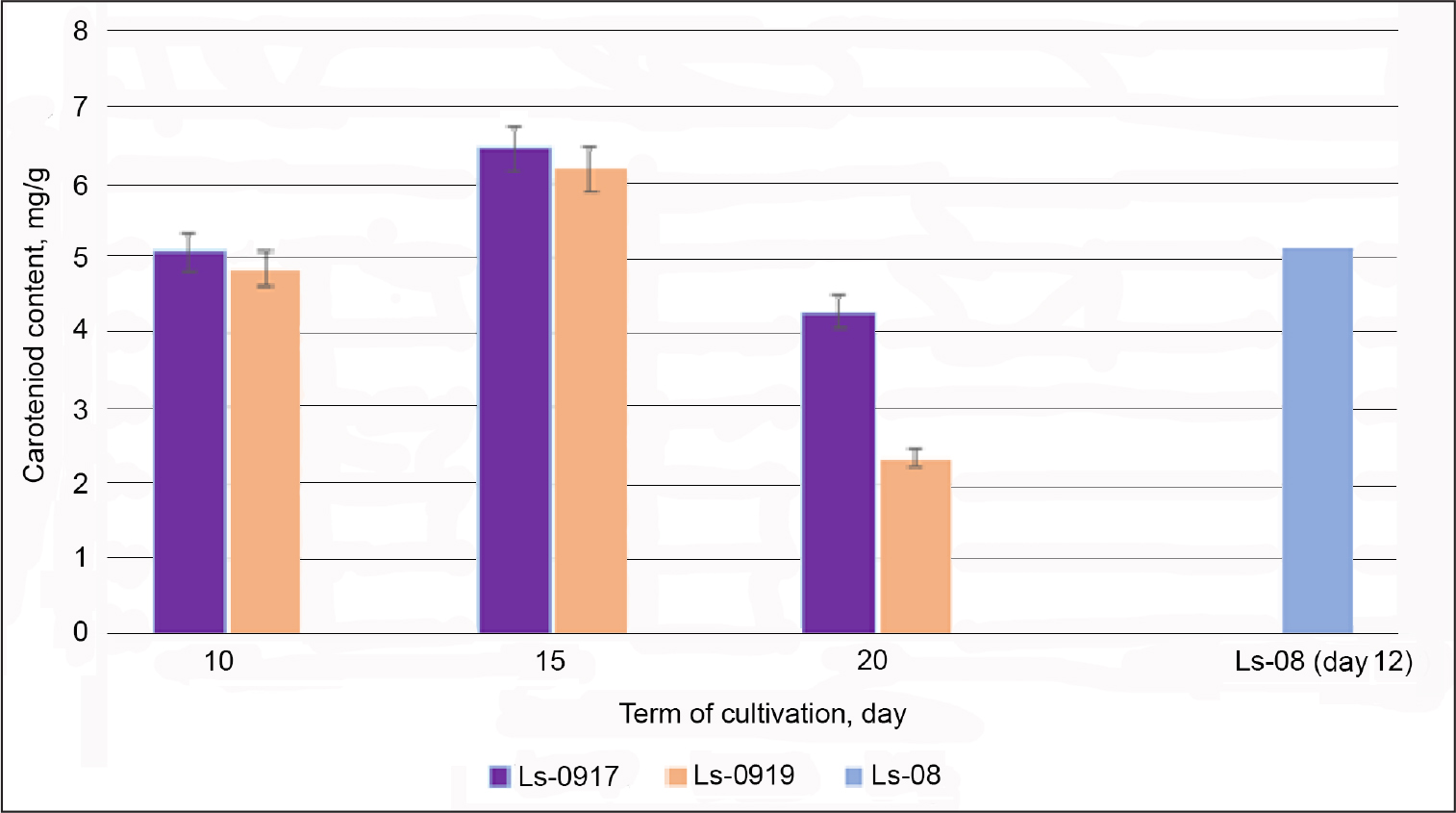

The largest carotenoid content was observed for strain Ls-0917 on day 15 (Fig. 3).

The study demonstrates that strains are more productive compared to the previously studied strain-producer Ls-08 (Velygodska et al., 2012).

Further research was conducted with strain Ls-0917. The influence of different light spectra on the increase in L. sulphureus radial growth, biomass, and biosynthesis of carotenoids was studied using lasers of different light wavelengths, which ensured the generation of coherent light. Three high-power lasers of different light wavelengths were used in the studies: 405 nm (blue spectrum), 532 nm (green spectrum), and 650 nm (red spectrum).

According to the evaluation of daily radial growth of mycelium, the best results were illustrated by using red monochromatic light with its maximum value on day 4 of cultivation.

Screening of the  results of the  increase in absolutely dry biomass, carotenoid accumulation in mycelium and in the culture filtrate was carried out on day 15 of cultivation. The maxi-mum biomass increase was observed on day 15 for strains irradiated with both green and blue monochromatic light.

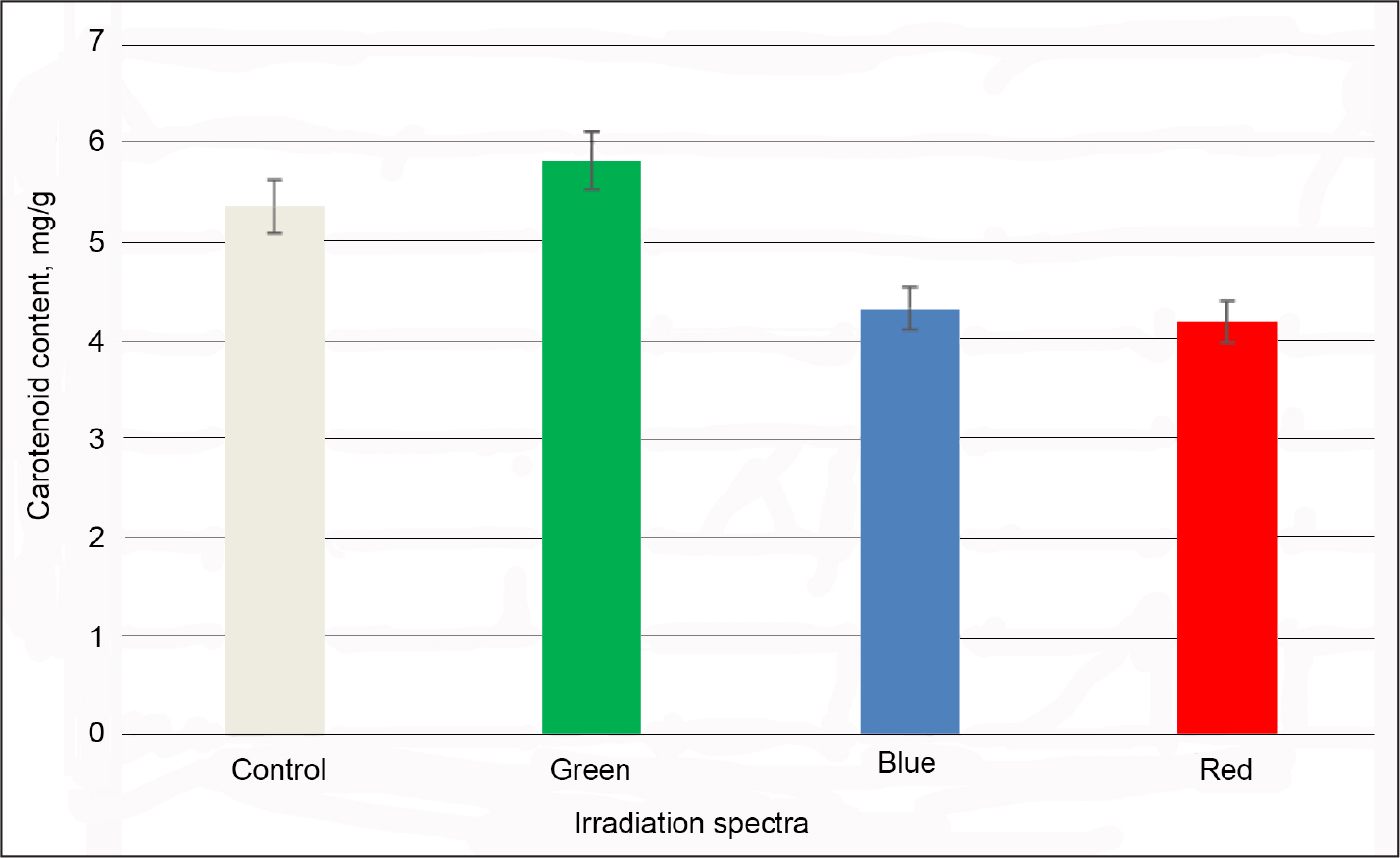

The strain irradiated with the  green spectrum of monochromatic light produced the best result of carotenoid accumulation in the mycelium. The least accumulation was observed in the strain irradiated with red monochromatic light (Fig. 4.).

Based on the  data table, the  obtained data on the strain L. sulphureus-0917 under the influence of the  green irradiation spectrum produced better results in comparison with the previously studied species.

Scientific novelty of the obtained results is that the carotenoid content in the cultures of basidium fungus strains (L. sulphureus: Ls-0917, Ls-0918, Ls-0919) was established for the first time. Based on the obtained data, the studied strains are promising producers of carotenoids. The effect of laser irradiation can increase carotenogenesis of L. sulphureus strains.

The practical significance of the  obtained results is the identification of most productive strain that could become a  source of carotenoids. These strains are more productive compared to the previously studied strain-producer Ls-08 (Ginka et al., 2003; Tinoi et al., 2005; Velygodska et al., 2012).

Despite the  wide spread of carotenoids in nature and particularly in fruits, vegetables, and algae, the use of the fungus L. sulphureus has several advantages:

–  the  medicinal fungus L.  sulphureus is widely distributed worldwide (Qiang Li et al., 2018);

–  these fungi usually have low nutritional requirements during their growth and cultivation, which reduces production costs;

– the maximum carotenoid content is produced as early as day 15;

–  production of carotenoids from fungus presents no problems, unlike the  plants with seasonal and geographic variability that cannot be regulated (Chang ST et al., 2004).

CONCLUSIONS

The  study proves the  possibility of a  positive irradiation effect of certain spectra of monochromatic light on the carotenoid synthesis in the mycelium of the investigated strains. L. sulphureus could be used in pharmacy, cosmetics, and production of dietary supplements that need carotenoid content. Consequently, L. sulfureus strains are reliable microorganisms to produce carotenoids.
